Product Information

Brand:

WAC Lighting

Brand Category:

LED Tape Lighting

Brand Product Description:

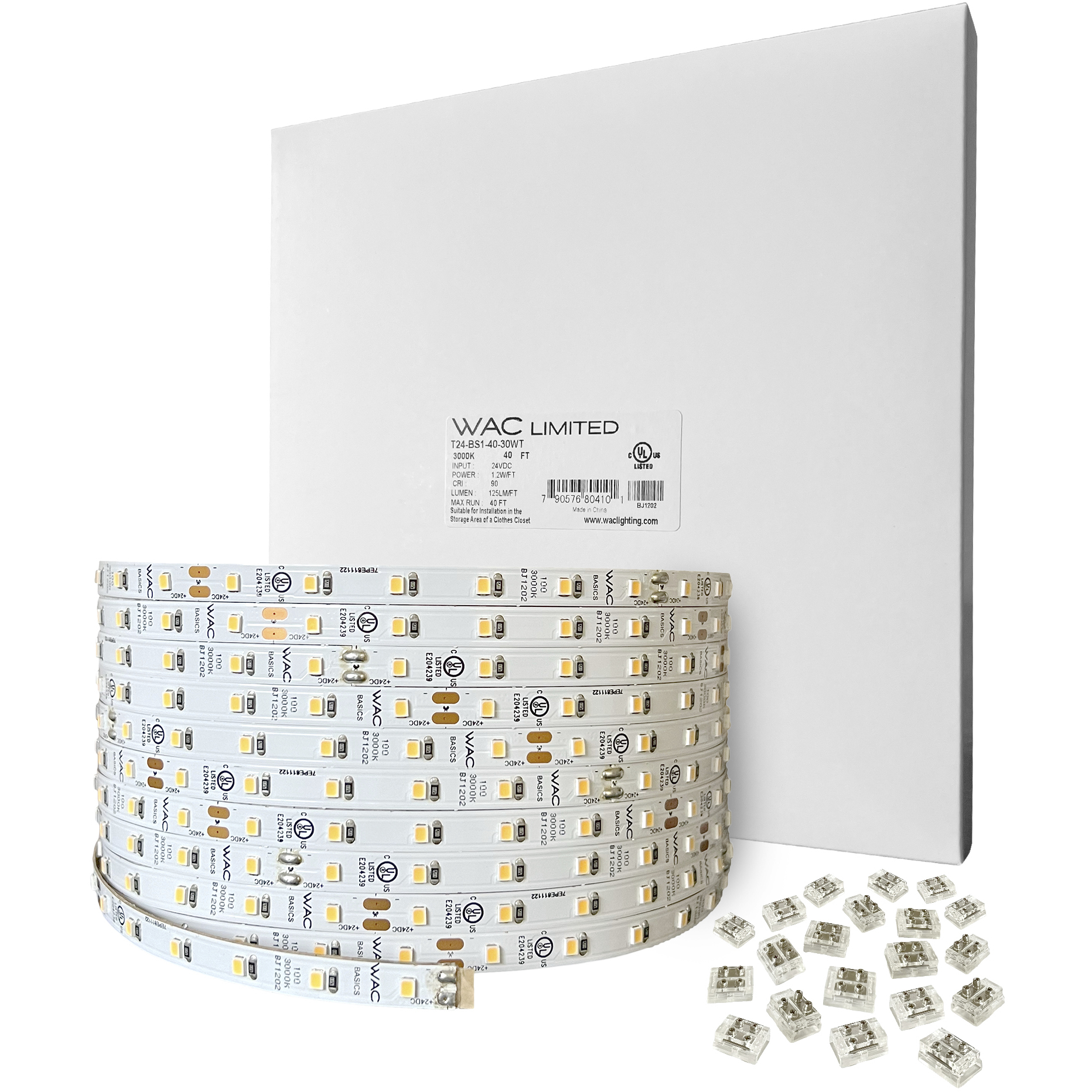

Basics 24VDC Tape Light

Shipping Method:

Ground

SKU:

T24-BS2-100-30WT

UPC:

790576806204

Electrical and Operational Information

Color Rendering Index:

90

Color Temperature:

3000K

Dimmable:

Yes

Lamping Category:

LED

Lamping Features:

Bulb Shape: LED Module
• Delivered Lumens: 25000
• Beam Spread: 115
• Average Hours: 50000

Lamping Included:

Bulbs Included

Lamping Type:

LED

Lumens:

31250

Primary Number of Bulbs:

1

Socket:

LED Module

Total Number of Bulbs:

1

Total Watts:

240

Voltage:

24

Wattage Max:

2.40

Dimensions and Measurements

Height:

0.38

Length:

1200

Weight:

1.49

Width:

0.19

Warranty and Specifications

ADA:

Yes

Country of Origin:

Thailand

Install Position:

Can be mounted on ceiling or wall in all orientations

Title 20:

Yes

Title 24:

Yes

UL Ratings:

UL/cUL/IP20 Damp

Warranty:

5 Years Functional, 2 Years Finish

Additional Details

Features:

• Basics tape light output ranges from 100-250 lumens per foot, with easy-to-setup seamless and scalable run lengths up to 40 feet. Available in a 1.2W/ft option delivering up to 150 lumens/ft and a 2.4w/ft option delivering up to 250 lumens/ft.
• Flexible and customizable with a low profile. Basics LED Tape delivers precision and performance with five selectable color temperatures from warm to cool 2700K-3000K-3500K-4000K-5000K. Use with universal input voltage 120-220-277V power supply: PS-24DC-U
• Basics tape light can be cut in the field every 4in and re-connected with safe and secure connectors. Smooth robust illumination deployed from evenly placed UV coated LEDs for cove, accent and task lighting applications. 15ft spool includes 2 X T24-BS-MM-
• Smooth and continuous dimming with an electronic low voltage dimmer (ELV), TRIAC or 0-10V (0-10V only available with PS-24DC-U power Supply). Dimmers should be installed on the primary side of the transformer. Driver input voltage: 120V-220V-277V AC, Driver output voltage: 24V DC. Driver is available in a 288W max load.
• High Powered LED: Color Temperature: 2700K, 3000K, 3500K, 4000K, and 5000K, 90+ CRI, Rated Hours: 80,000, Voltage: 24V, Lumen Options: 100+ lm/ft, or 200+ lm/ft.
• Standards: UL & cUL Listed for Damp Locations IP20 rated. CEC Title 24 & ADA Compliant.
• Complete System: No
• mounting: Ceiling/WallAny
• Interior/Exterior: Interior
• Additional Features:
  • Hardwired or Portable: Plugin
  • Min Height: 0.38
  • Dimmable: ELVTRIAC0-10V
  • Bulb Shape: LED Module
  • Delivered Lumens: 25000
  • Efficacy (Lm/W): 104
  • Beam Spread: 115
  • Average Hours: 50000
  • Accessory 1 Type: Power Supply
  • Accessory 1 SKU: PS-24DC-U60R-SP, PS-24DC-U96R-SP, PS-24DC-U288R-SP, EN-BT60-24, EN-BT96-24
  • Accessory 2 Type: Connectors
  • Accessory 2 SKU: T24-BS-MM-CL, T24-BS-L-CL, T24-BS-PM-CL, T24-BS-IC-002-WT, T24-BS-IC-006-WT, T24-BS-IC-012-WT, T24-BS-IC-036-WT, T24-BS-IC-072-WT, T24-BS-IC-002-BK, T24-BS-IC-006-BK, T24-BS-IC-012-BK, T24-BS-IC-036-BK, T24-BS-IC-072-BK, T24-BS-EX2-072-WT, T24-BS-EX2-144-

Glass Features:

Clear UV Stabilized Coating

Material:

Aluminum

Shade Information

Shade Features:

Clear UV Stabilized Coating
