Product Information

Brand:

WAC Lighting

Brand Category:

Outdoor Pendant

Brand Product Description:

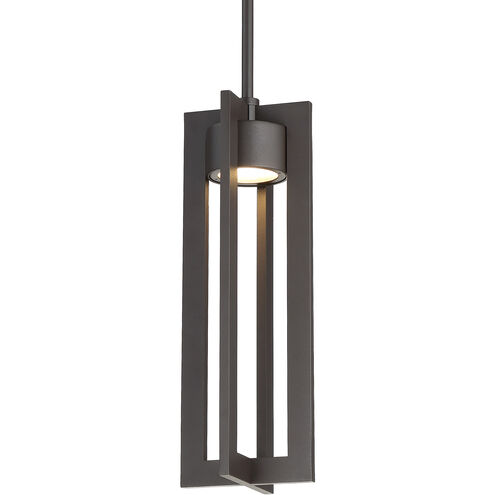

Chamber LED Outdoor Pendant

Shipping Method:

Ground

SKU:

PD-W48616-BZ

UPC:

790576464657

Electrical and Operational Information

Color Rendering Index:

90

Color Temperature:

3000K

Dimmable:

Yes

Lamping Category:

LED

Lamping Features:

Dimmable: ELV
• Bulb Shape: LED Module
• Delivered Lumens: 372
• Beam Spread: Narrow
• Average Hours: 44000
• Number of Lights: 1

Lamping Included:

Bulbs Included

Lamping Type:

Integrated LED

Lead Wire Length:

120

Lumens:

1000

Primary Number of Bulbs:

1

Socket:

LED Module - ACLED Module

Total Number of Bulbs:

1

Total Watts:

12.00

Voltage:

120V

Wattage Max:

12.00

Dimensions and Measurements

Backplate/Canopy Extension:

5.8

Backplate/Canopy Height:

2

Backplate/Canopy Width:

5.8

Extension:

5.50

Height:

16

Length:

5.5

Maximum Adjustable Height:

120

Weight:

6.43

Width:

5.5

Warranty and Specifications

Country of Origin:

China

Dark Sky:

Yes

Location Rating:

Suitable for Wet Locations

Title 20:

Yes

Title 24:

Yes

UL Ratings:

ETL/cETL/IP65 Wet

Warranty:

5 Years Functional, 2 Years Finish

Additional Details

Chain Cord Features:

Rods 1x6 3x12

Features:

• Mid-century modern inspired design with solid casted aluminum that shelters an advanced LED light engine. Hang straight swivel included to accommodate slope ceiling applications.
• 10ft of wire included to extend pendant up to a total of 120in. Three 12in down rods and one 6in down rod included. Additional down rods sold separately.
• 120V AC LED Technology, no transformer or driver needed. 240V, or 277V options are available by special order.
• Smooth and continuous dimming with an electronic low voltage (ELV) dimmer.
• High Powered Replaceable LED Module CRI: 90, Rated Hours: 44,000, Color Temp: 3000K
• Standards: ETL & cETL UL 1598, IP65 listed for Wet Locations. CEC Title 24 Compliant.
• Complete System: Yes
• Mounting: Ceiling
• Interior/Exterior: Interior & Exterior
• Additional Features:
  Hardwired or Portable: Hardwired
  • Minimum Height: 14
  • Sloped Ceiling: Y
  • Maximum Slope: 90
  • Accessory 1 Type: Additional 12" Down rods
  • Accessory 1 SKU: RPL-ROD-OUT12-BK
  • Accessory 2 Type: Additional 06" Down rods
  • Accessory 2 SKU: RPL-ROD-OUT06-BK

Glass Features:

White Glass Diffuser

Material:

Aluminum

Shape:

Lantern

Shade Information

Shade Features:

White Glass Diffuser
