Description

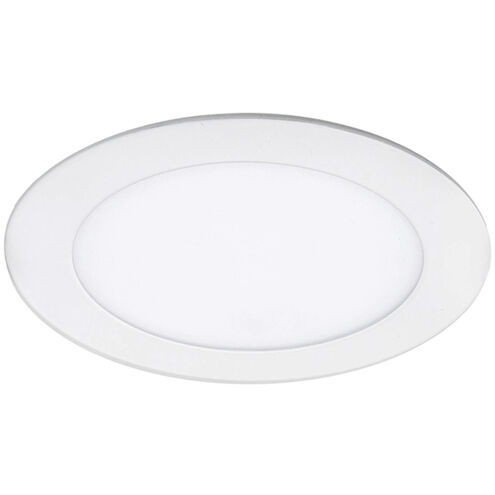

The wafer-thin Lotos LED Recessed Kit with remote driver combines high quality light output and efficiency while eliminating the need for a large housing. This innovative design can be installed easily as a remodel or new construction with an optional frame-in kit sold separately for pre-wiring. Lotos is available in a downlight version for general ambient lighting and an adjustable version with a gimbal that pivots 360 degrees on a hinge, perfect for slope ceilings, general lighting, accenting lighting, and wall washing. The integrated high output and energy efficient Lotos LED module maintains at least 70% light output for 50,000 hours. The Lotos is ideal for shallow ceiling applications with as little as 3-inch plenum clearance. Lotos LED is offered in round and square with 2in, 4in, and 6in aperture options. Use part # R2ESAR-2 or R2ESAR-3 for the multi-light option with 2 and 3 light configurations. Now with a fire rated version, -FWT.
Product Specifications
Product Information
Electrical and Operational Information
- Efficacy (Lm/W): 86
- Beam Angle: 180
- Beam Spread: Flood
- Average Hours: 50000
- Dimmable: ELV, TRIAC

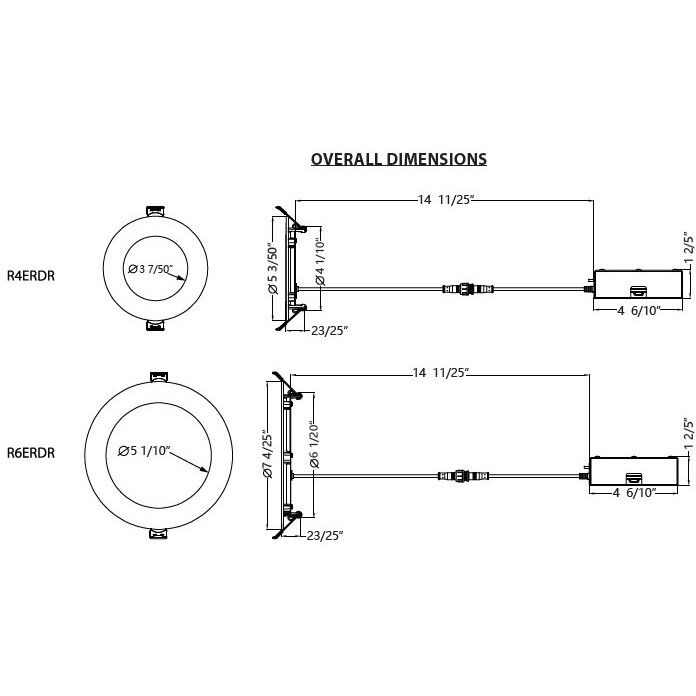

Dimensions and Measurements
Warranty and Specifications
Additional Details
- Fire Rated, multiple LED array for uniform illumination. Slim, round 4in adjustable remodel downlights. Available in 4in & 6in sizes.
- This innovative design can be installed in the shallowest ceiling depths as a remodel or new construction with an optional frame-in kit sold separately for pre-wiring (part RER-FRAME). 6ft extension cable (Part RER-6) is available to increase distance from driver to downlight.

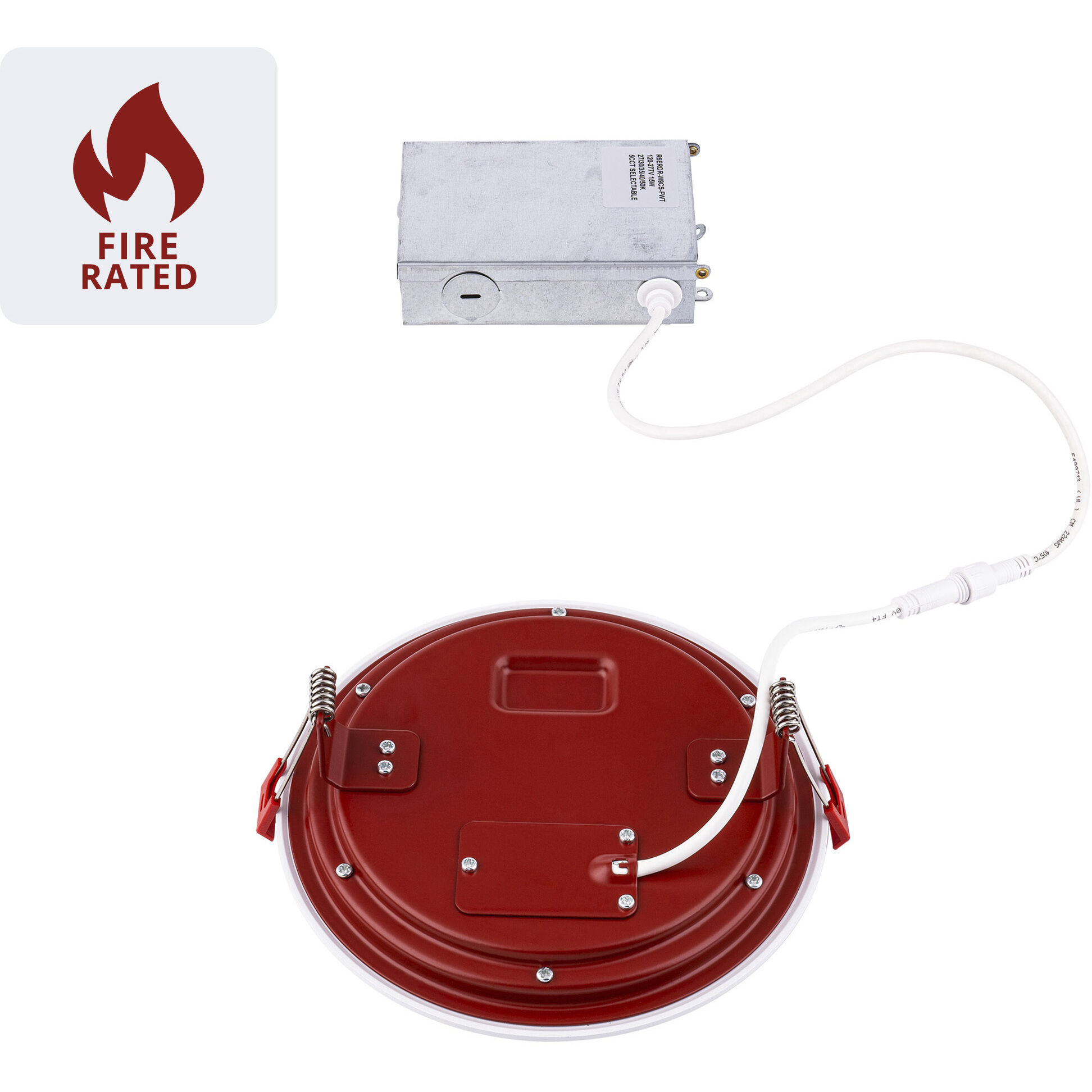

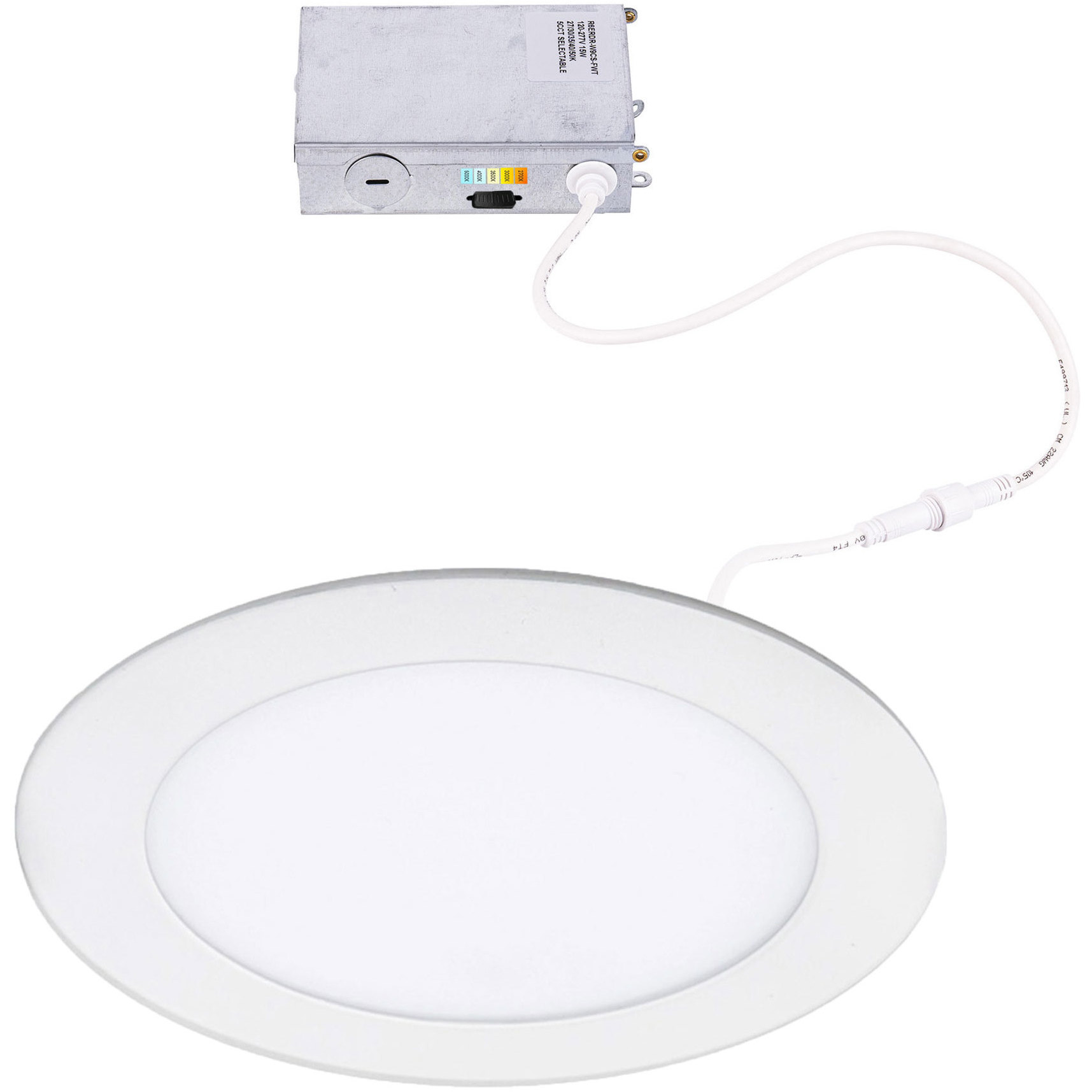

- A Universal Input Voltage Driver (120V-240V-277V) is contained in a steel housing with space for line-voltage electrical connections. Driver housing includes a 6in low voltage plug-and-play connector that connects to the downlight.
- Smooth and continuous dimming that works with most standard LED dimmers. We recommend using an electronic low voltage or TRIAC dimmer.
- High Powered LED's up to 1200 Lumens rated at LM70 for 50,000 hours and a 5-CCT selectable switch that allows you to toggle between 2700K Warm - 3000K Warm White - 3500K White - 4000K Cool White - 5000K Natural White all at the flick of a switch.
- Standards: ETL & cETL Wet location listed in the USA and Canada. Fire Rated. Energy Star 2.0 Certified, Title 24 JA8-2016, Title 20, and ADA compliant.
- IC Rated: Yes
- Airtight: Yes
- Closet Rating: No
- CEC Compliant: Yes
- Hardwired or Portable: Hardwired
- Interior/Exterior: Interior/Exterior
- Complete System: Yes
- Cutout: 6.25
- Ceiling Thickness: 0.5-1.75
- Trim Size: 6.75
- Aperture: 5.88
- Accessory 1 Type: 6ft Extension Cable
- Accessory 1 SKU: RER-6
- Accessory 2 Type: New Construction Frame-in Kit
- Accessory 2 SKU: RER-FRAME
