Lotos LED White Adjustable Recessed Kit
- No Restocking Fee
- Bulbs Included
Lotos LED White Adjustable Recessed Kit
-
Enter coupon code HOLIDAYS24 to your cart.
Save 15% Off, now through 12/22/24 11:59pm EST. *Some exclusions may apply. Details
- No Restocking Fee
- Bulbs Included
In stock items ship in 1-3 business days.
Discontinued
This item is no longer available, but our Lighting Experts will be happy to help you find something similar that will suit your style, space and budget.
Are you a Trade Professional?
Log in to your LNY Pro account, or sign up here to receive exclusive trade pricing and other Pro benefits today!
Our Experts Help You Every Step of the Way
Our Lighting Experts can help you find the brand that best suits your style & budget.Lotos LED White Adjustable Recessed Kit
Description

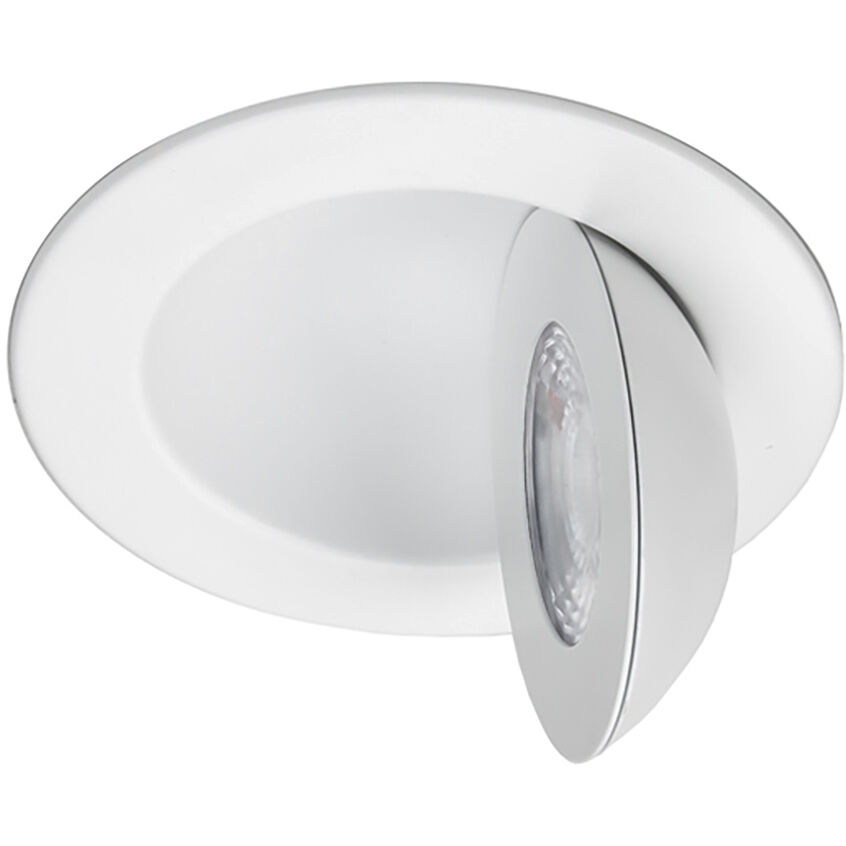

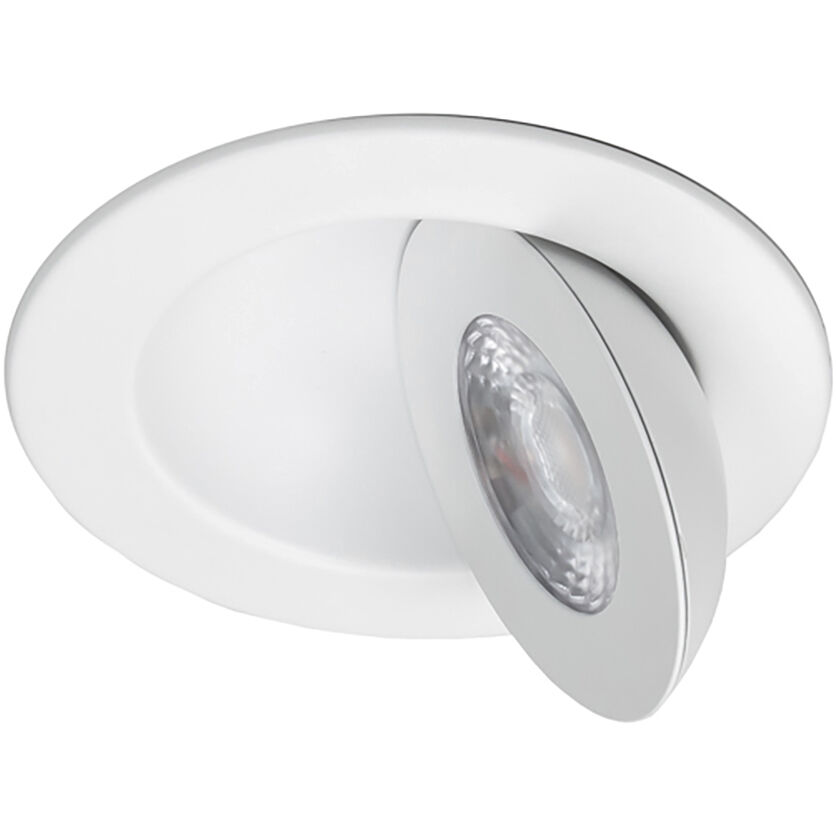

The wafer-thin Lotos LED Recessed Kit with remote driver combines high quality light output and efficiency while eliminating the need for a large housing. This innovative design can be installed easily as a remodel or new construction with an optional frame-in kit sold separately for pre-wiring. Lotos is available in a downlight version for general ambient lighting and an adjustable version with a gimbal that pivots 360 degrees on a hinge, perfect for slope ceilings, general lighting, accenting lighting, and wall washing. The integrated high output and energy efficient Lotos LED module maintains at least 70% light output for 50,000 hours. The Lotos is ideal for shallow ceiling applications with as little as 3-inch plenum clearance. Lotos LED is offered in round and square with 2in, 4in, and 6in aperture options. Use part # R2ESAR-2 or R2ESAR-3 for the multi-light option with 2 and 3 light configurations. Now with a fire rated version, -FWT.
Product Specifications
Product Information
Electrical and Operational Information
- Efficacy (Lm/W): 89
- Beam Angle: 45
- Beam Spread: Flood
- Average Hours: 50000
- Dimmable: ELV, TRIAC

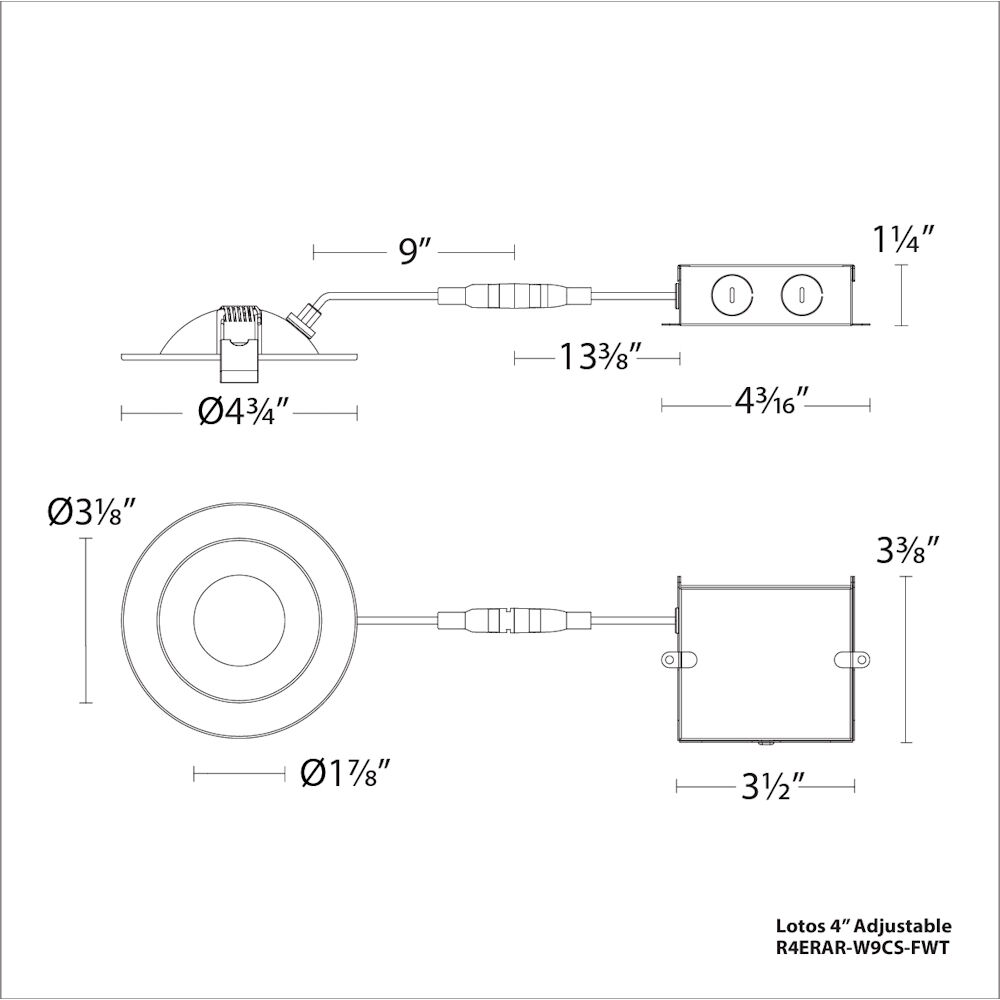

Dimensions and Measurements
Warranty and Specifications
Additional Details

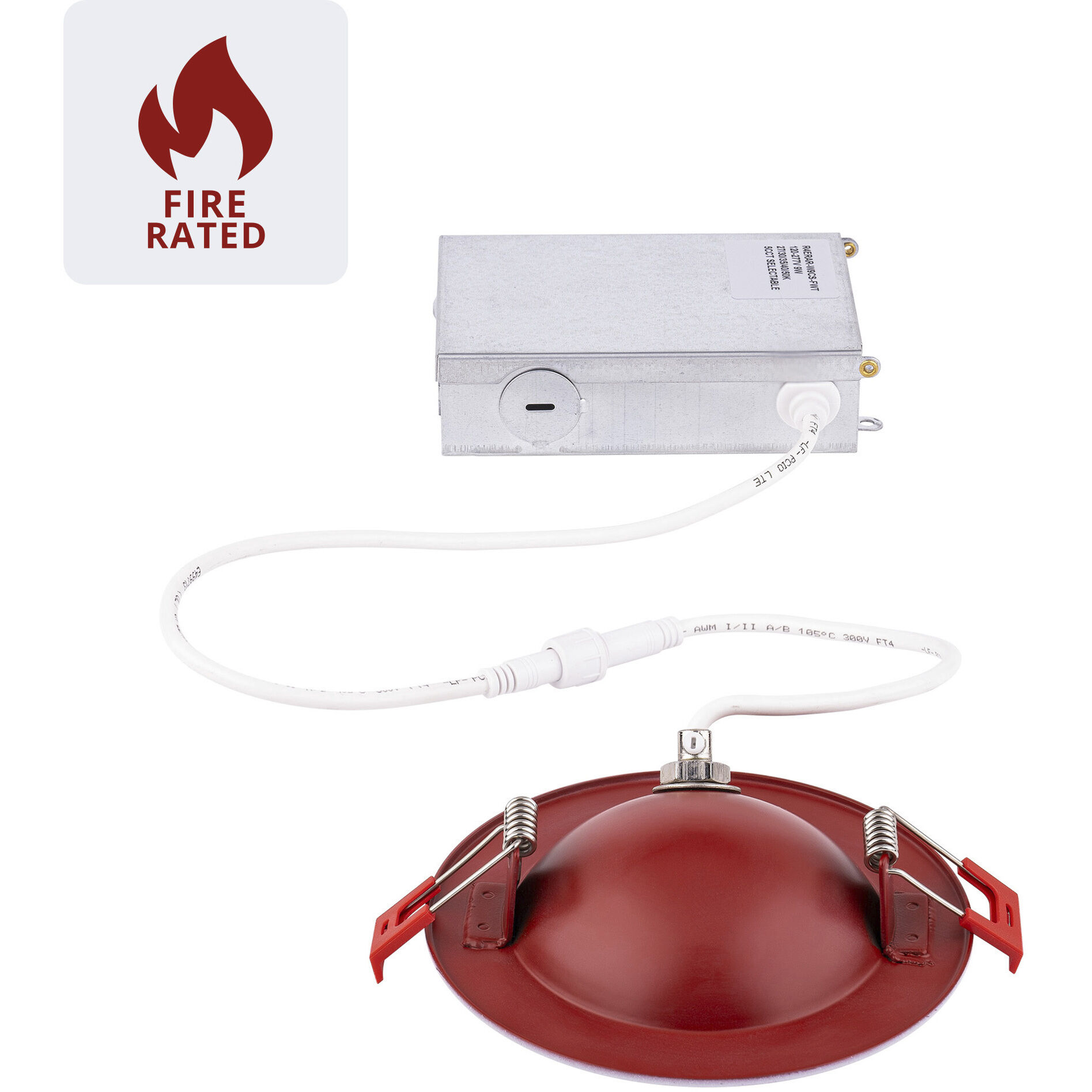

- Lotos Adjustable is a complete LED recessed adjustable downlight kit with light engine and driver included. Available in 4in & 6in sizes. Fire rated to reduce the spread of flames and maintain the integrity of the ceiling.
- This innovative design can be installed in the shallowest ceiling depths as a remodel or new construction with an optional frame-in kit sold separately for pre-wiring (part RER-FRAME). 6ft extension cable (Part RER-6) is available to increase distance from driver to downlight.

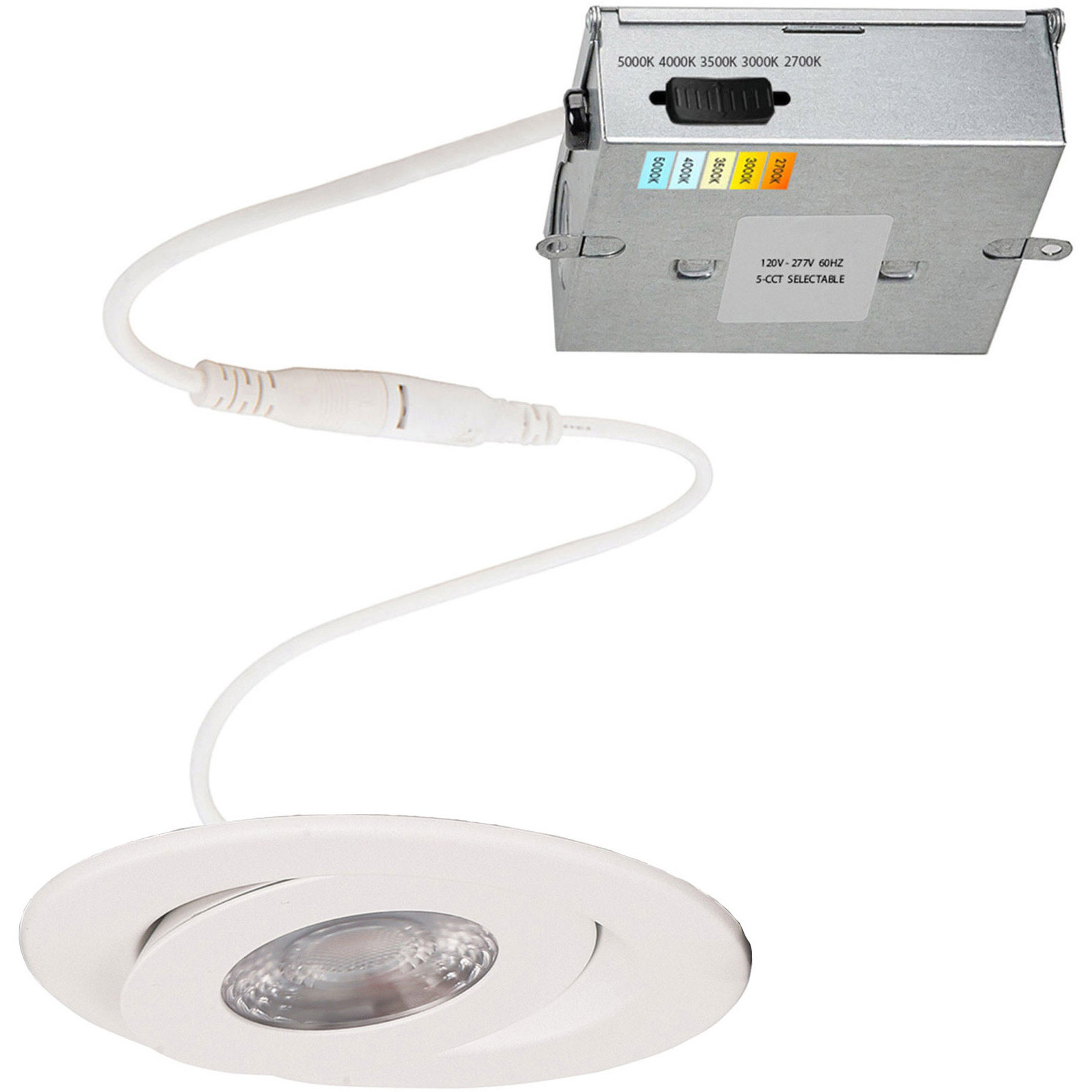

- A Universal Input Voltage Driver (120V-240V-277V) is contained in a steel housing with space for line-voltage electrical connections. Driver housing includes a 6in low voltage plug-and-play connector that connects to the downlight.
- Smooth and continuous dimming that works with most standard LED dimmers. We recommend using an electronic low voltage or TRIAC dimmer.
- High Powered LED's up to 800 Lumens rated at LM70 for 50,000 hours and a 5-CCT selectable switch that allows you to toggle between 2700K Warm - 3000K Warm White - 3500K White - 4000K Cool White - 5000K Natural White all at the flick of a switch.
- Standards: ETL & cETL Wet location listed in the USA and Canada. Fire Rated. Energy Star 2.0 Certified, Title 24 JA8-2016, Title 20, and ADA compliant.
- IC Rated: Yes
- Airtight: Yes
- Closet Rating: No
- CEC Compliant: Yes
- Hardwired or Portable: Hardwired
- Interior/Exterior: Interior/Exterior
- Complete System: Yes
- Cutout: 4
- Ceiling Thickness: 0.5-1.75
- Trim Size: 4.75
- Aperture: 3.13
- Accessory 1 Type: 6ft Extension Cable
- Accessory 1 SKU: RER-6
- Accessory 2 Type: New Construction Frame-in Kit
- Accessory 2 SKU: RER-FRAME
Shade Information
Product Documentation
Related Products
WAC Lighting
WAC Lighting
WAC Lighting
About the Brand
For over thirty-five years WAC Lighting has operated at the forefront of emerging technologies. Now a second-generation owner-operated company, WAC Lighting continues to elevate the industry in design and manufacturing by challenging conventions and building sustainable products responsibly.
