Product Information

Brand:

WAC Lighting

Brand Category:

Pendant

Brand Product Description:

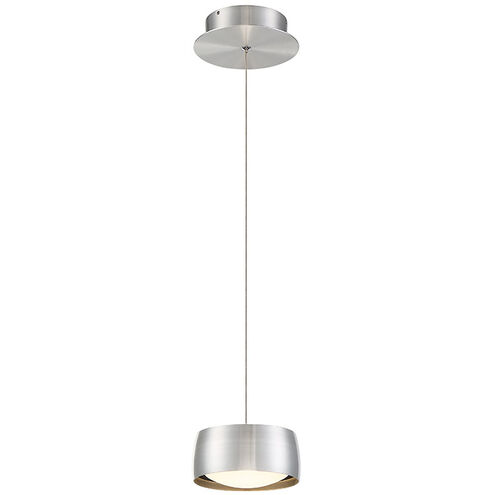

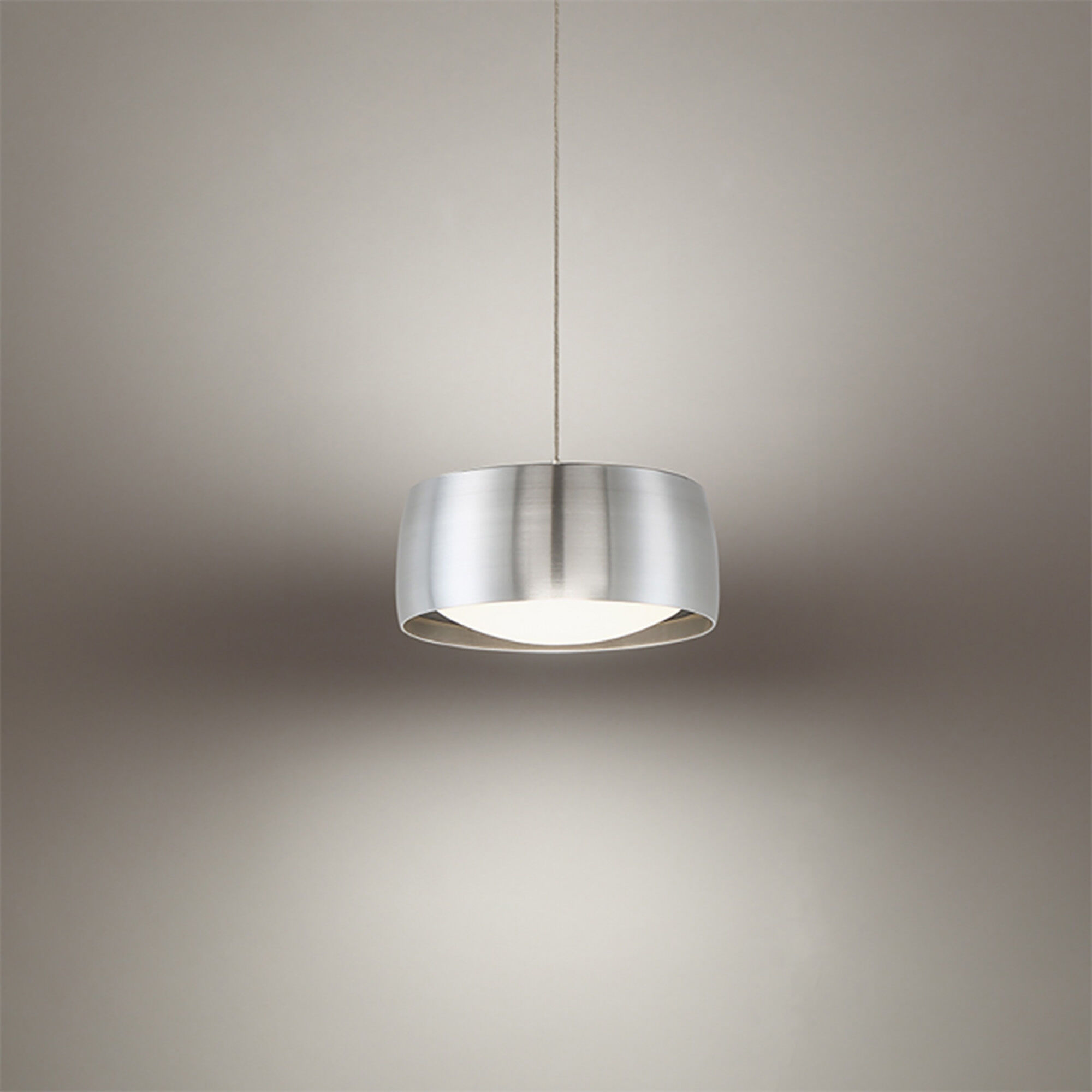

Tic Toc LED Pendant

Shipping Method:

Ground

SKU:

PD-37806-AL

UPC:

790576497242

Electrical and Operational Information

Color Rendering Index:

90

Color Temperature:

3000K

Dimmable:

Yes

Lamping Category:

LED

Lamping Features:

Dimmable: ELV
• Bulb Shape: LED Module
• Delivered Lumens: 685
• Beam Spread: Flood
• Average Hours: 54000
• Number of Lights: 1

Lamping Included:

Bulbs Included

Lamping Type:

Integrated LED

Lead Wire Length:

140

Lumens:

1198

Primary Number of Bulbs:

1

Socket:

LED Module - Driver

Total Number of Bulbs:

1

Total Watts:

15.00

Voltage:

120V

Wattage Max:

15.00

Dimensions and Measurements

Backplate/Canopy Extension:

2

Backplate/Canopy Height:

2

Backplate/Canopy Width:

6.5

Diameter:

6.38

Extension:

6.38

Height:

3.58

Length:

6.38

Maximum Adjustable Height:

137

Weight:

5.35

Width:

6.38

Warranty and Specifications

Country of Origin:

China

Title 20:

Yes

Title 24:

Yes

UL Ratings:

ETL/cETL/IP44 Damp

Warranty:

5 Years Functional, 2 Years Finish

Additional Details

Chain Cord Features:

Cable

Features:

• Interior/Exterior: Interior or Covered Exterior
• Smooth and continuous dimming with an electronic low voltage (ELV) dimmer.
• Can be mounted on a slope ceiling. Driver is located in the round canopy.
• Thin powered aircraft cables provide an ultra-clean look. Provides up and down illumination.
• Complete System: Yes
• Additional Features:
  Hardwired or Portable: Hardwired
  • Minimum Height: 5
  • Sloped Ceiling: Y
  • Maximum Slope: 30-45
• Standards: ETL & cETL UL 1598 listed for Damp Locations. CEC Title 24 Compliant.
• Solid Aluminum construction with a PC diffuser for maximum brightness and even illumination.
• High Powered Replaceable LED Module CRI: 90, Rated Hours: 50,000, Color Temp: 3000K
• Mounting: Ceiling

Material:

Aluminum
