Product Information

Brand:

Schonbek

Brand Category:

Pendant

Brand Product Description:

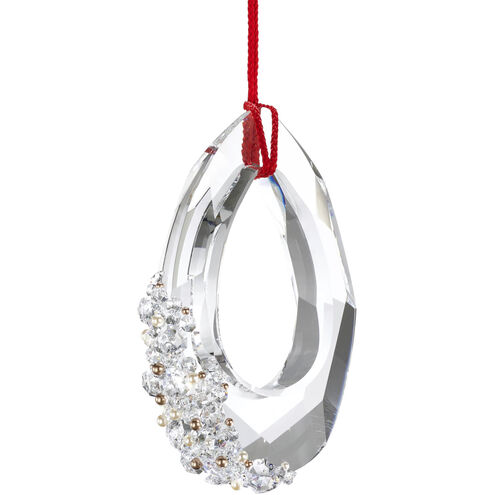

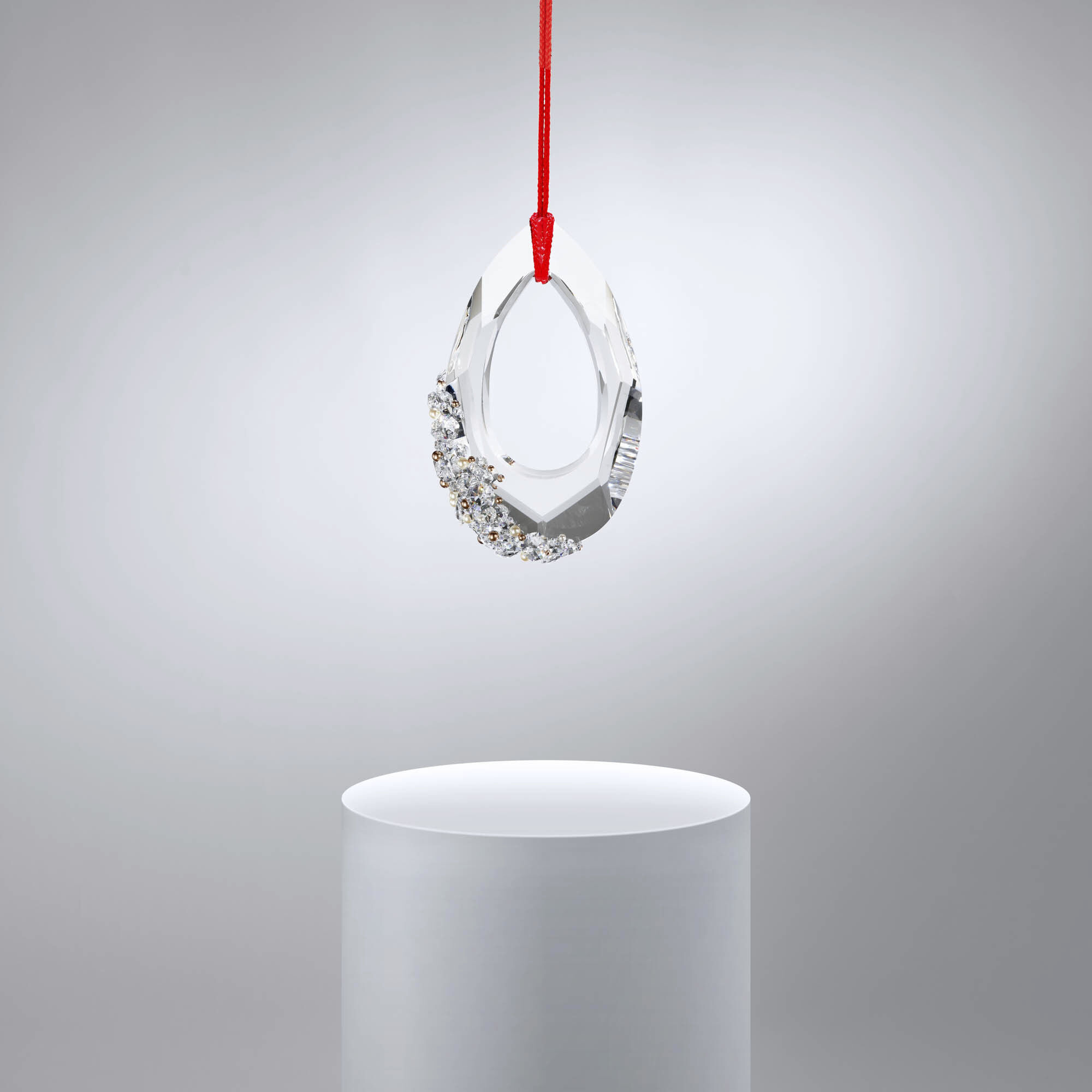

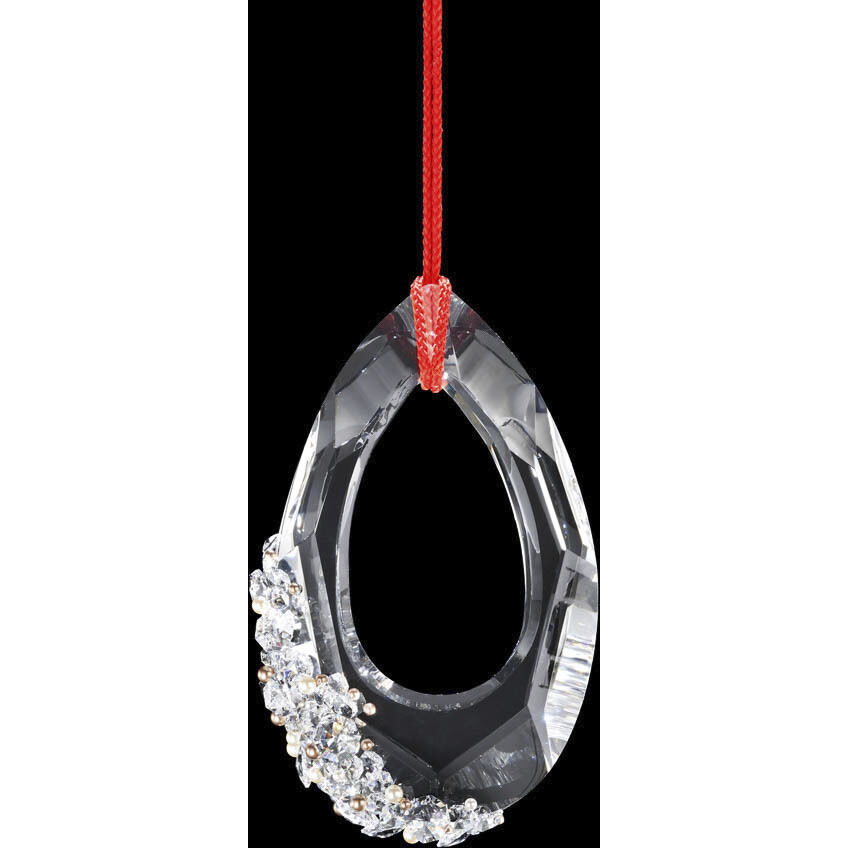

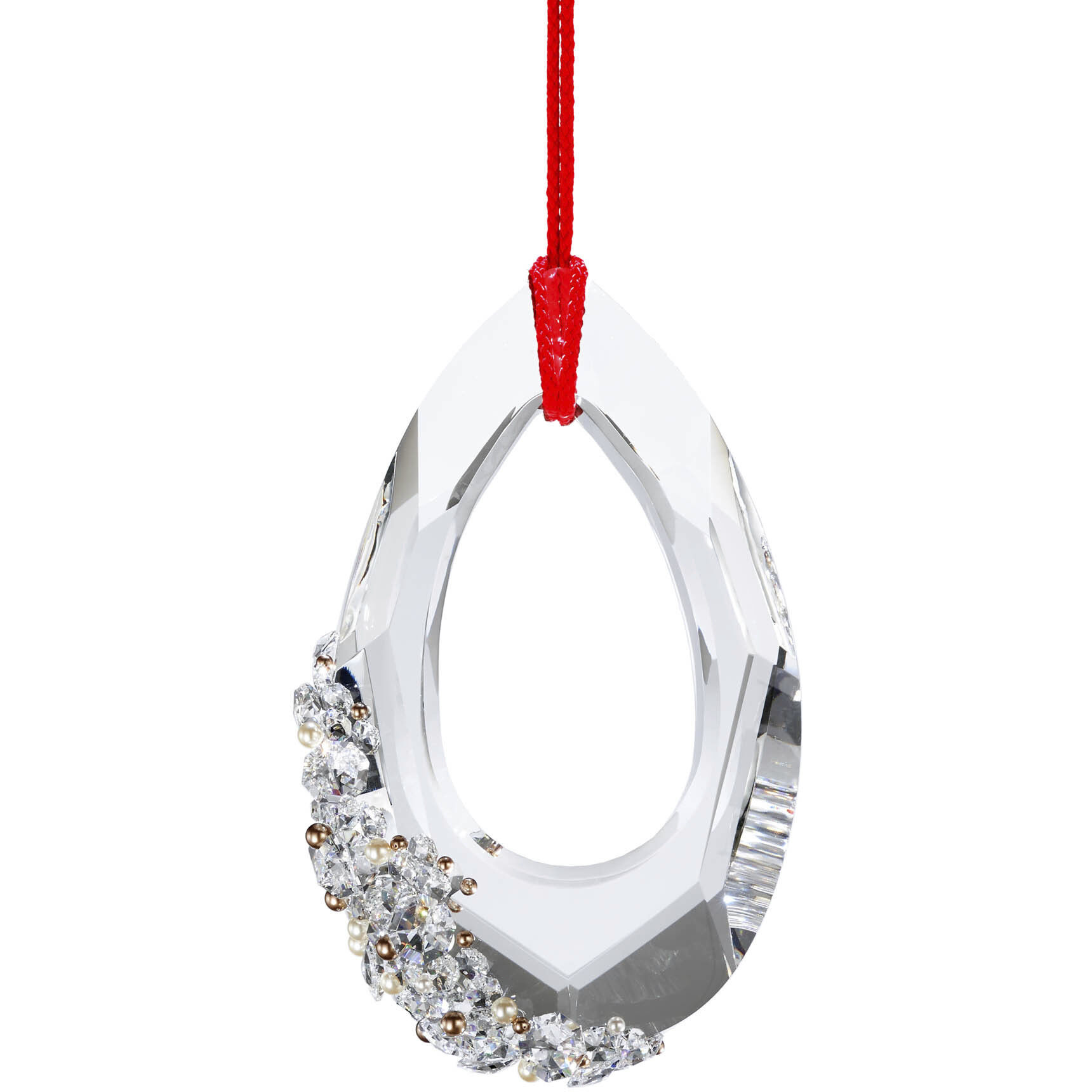

Trinity 1 Light Crystal LED Pendant

Shipping Method:

Ground

SKU:

SJ8813-RRE702R

UPC:

771857888867

Electrical and Operational Information

Color Rendering Index:

90

Color Temperature:

3000K-3500K-4000K

Dimmable:

Yes

Lamping Category:

LED

Lamping Features:

Number of LEDs: 3

Dimmable: ELV;TRIAC

Lumens: 2800

Delivered Lumens: 2400

Efficacy (Lum/Watt): 74

Beam Spread: Flood

Average Hours: 60000

Lamping Included:

Bulbs Included

Lamping Type:

Integrated LED

Lead Wire Length:

6

Lumens:

2400

Primary Number of Bulbs:

1

Socket:

LED Module - Universal Driver

Total Number of Bulbs:

1

Total Watts:

38

Voltage:

120-240-277

Wattage Max:

12.35

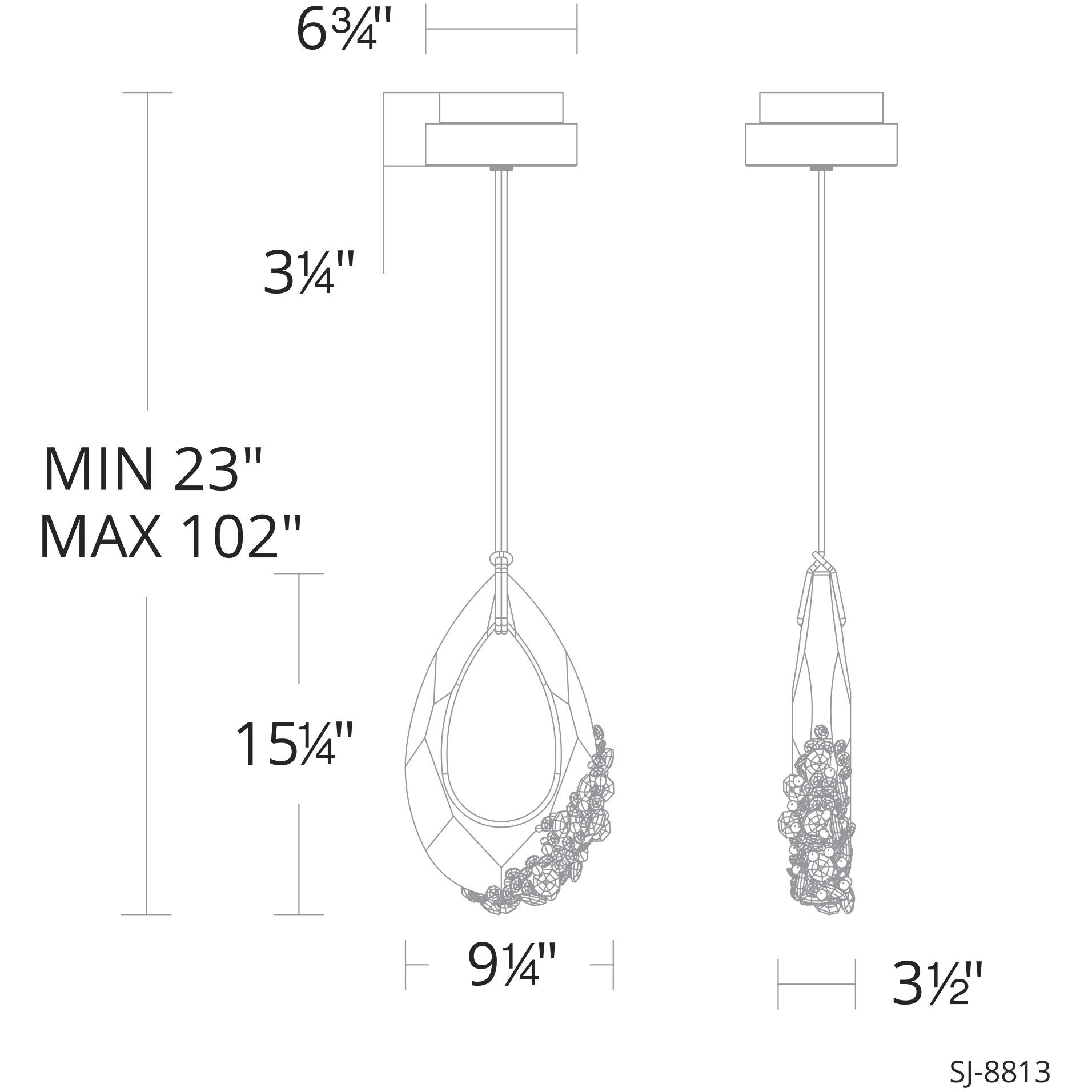

Dimensions and Measurements

Backplate/Canopy Extension:

5

Backplate/Canopy Height:

6.5

Backplate/Canopy Width:

6.5

Height:

15.25

Length:

9.25

Maximum Adjustable Height:

102

Weight:

24.50

Width:

3.5

Warranty and Specifications

ADA:

Yes

Country of Origin:

United States

Energy Star:

Yes

Install Position:

Ceiling

Title 20:

Yes

Title 24:

Yes

UL Ratings:

ETLcETL Interior Damp

Warranty:

5 Years Residential, 1 Year Commercial

Additional Details

Chain Cord Features:

Rope Length 168

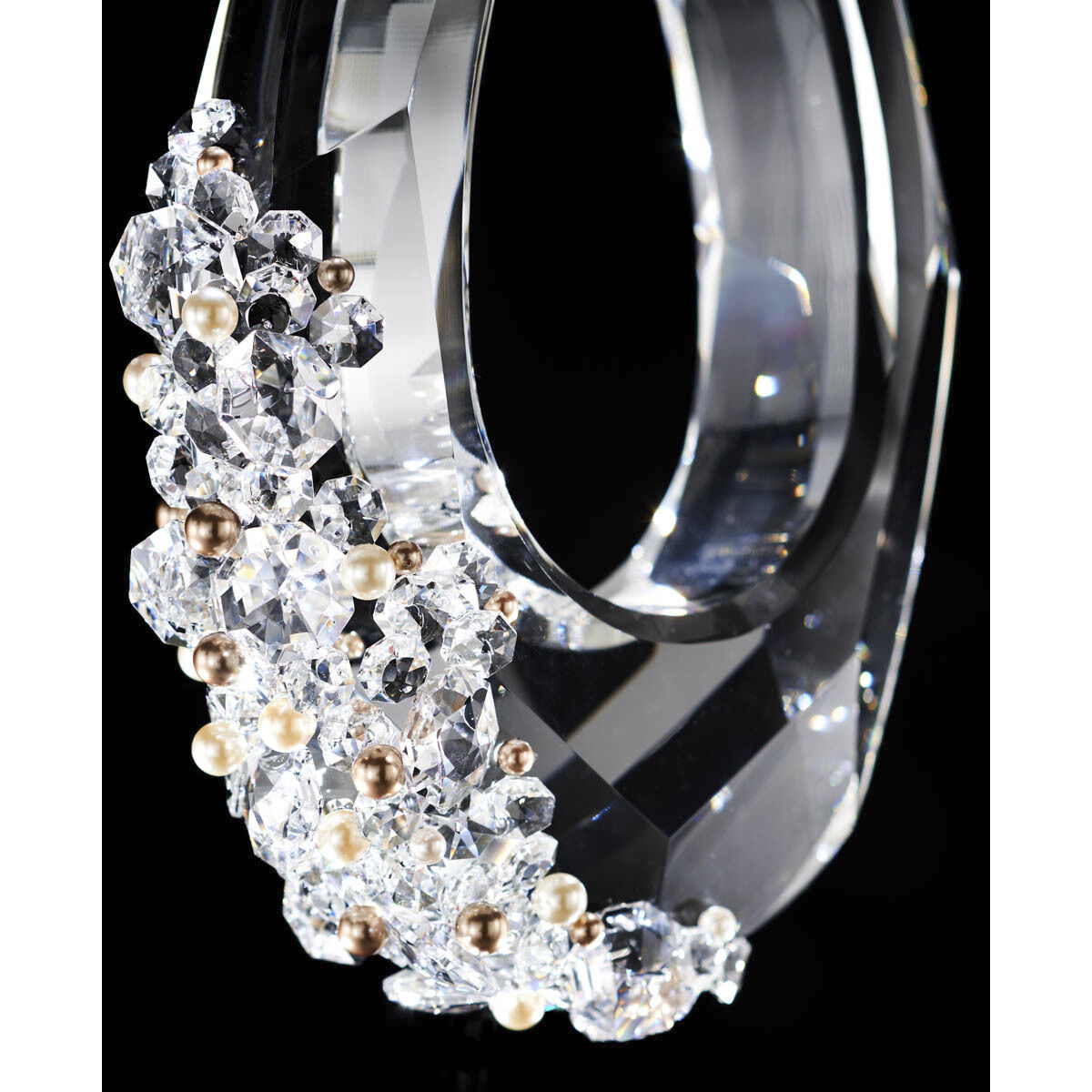

Crystal Features:

Clear Radiance Crystal

Features:

• Constructed of steel and aluminum, featuring Schonbek Radiance crystal, the finest quality, free of flaws or imperfections and engineered for optimal brilliance and optical purity. Radiance crystals originate from Europe using a state of the art process that doubles the amount of jewel-cut facets. Available in a single light, 3 light, and 4 light configuration.

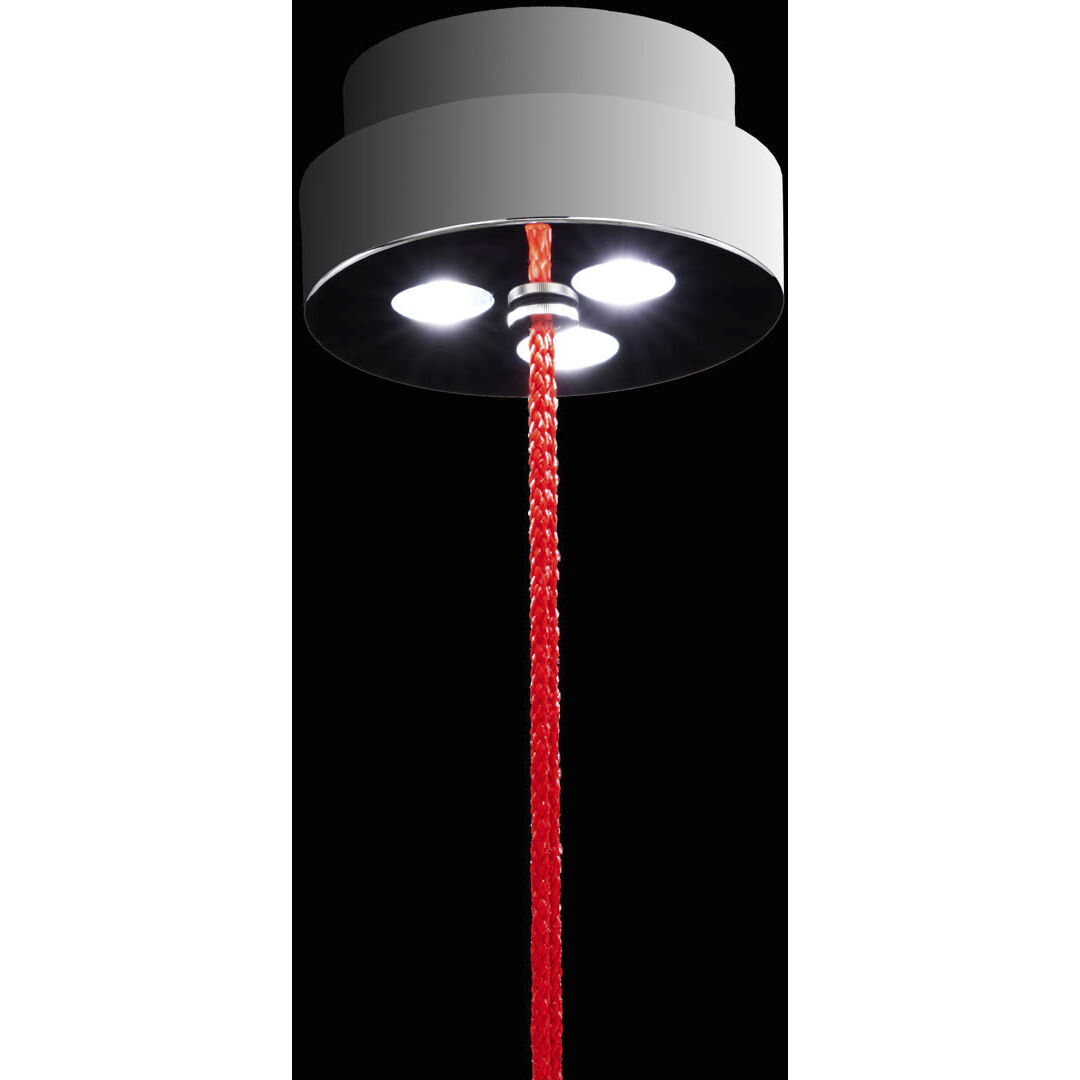

• Luxurious braided nylon rope offered in three interchangeable colors of Black, Gold, and Red (order accordingly). 14ft of double-looped rope is included for adjustment up to 7ft total rope height. Pendant is illuminated by three state of the art LED light engines located in the canopy that can be installed on a sloped ceiling up to a 45 degree slope.
• Schonbek Forever LED luminaires feature a 3-CCT color temperature selectable switch that can be accessed at the time of installation to toggle between 3000K-3500K-4000K color temperatures.
• Universal input voltage driver (120V-240V-277V) is concealed inside the fixture. Smooth and continuous dimming with ELV, TRIAC dimmers.
• High powered replaceable LED Module CRI: 90, Adjustable color temperature: 3000K-3500K-4000K.
• Standards: ETL/cETL UL 1598 listed for Damp locations.
• Complete System: Yes
• Hardwired or Portable: Hardwired
• CEC Compliant: Yes
• Additional Features:
  • Minimum Height: 23
  • Sloped Ceiling: Yes
  • Maximum Slope: 30
  • Tiers: 1

Material:

Steel/Crystal

Shape:

Oval
