Product Information

Brand:

WAC Lighting

Brand Category:

Flush Mount

Brand Product Description:

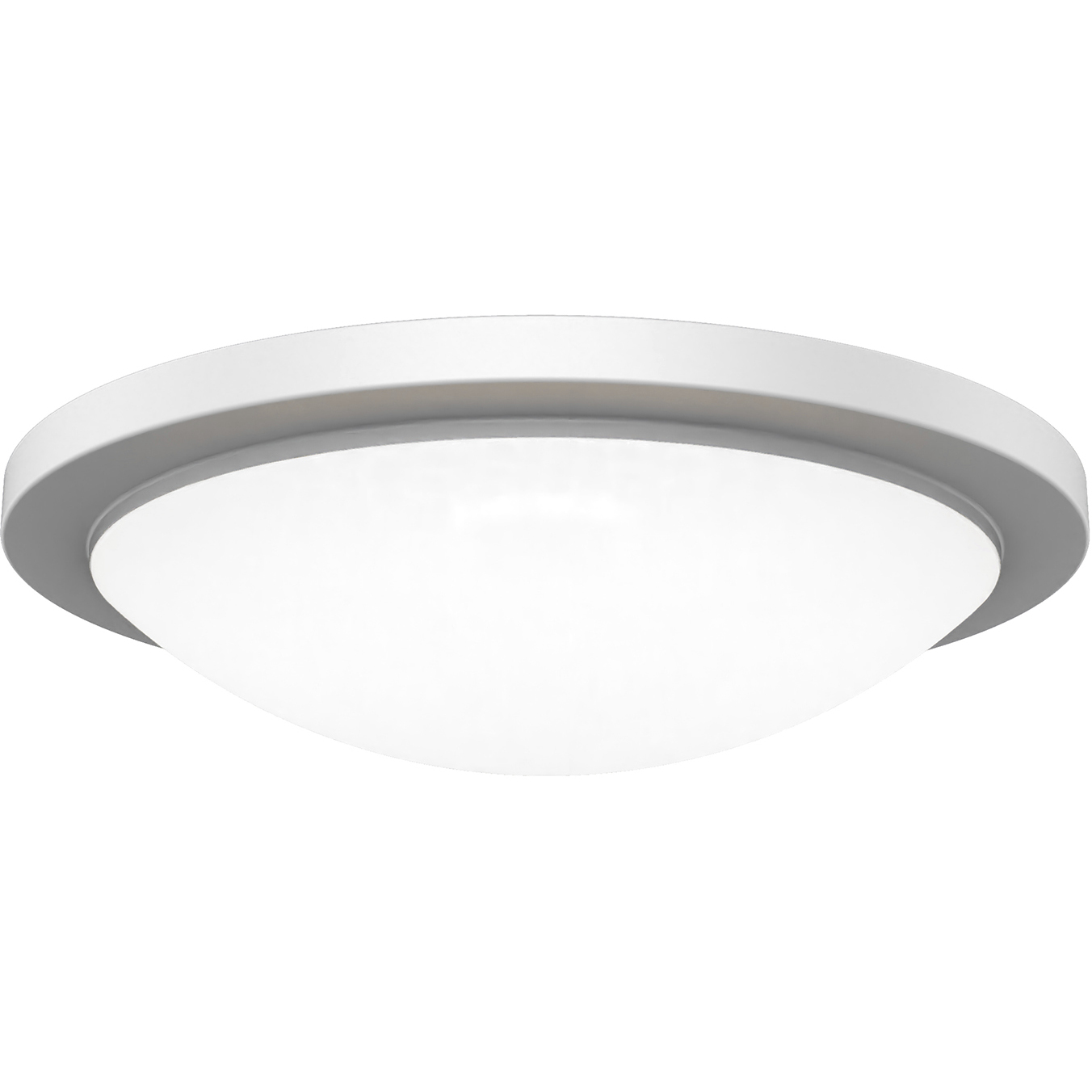

Dew LED 5-CCT Selectable Flush Mount

Shipping Method:

Ground

SKU:

FM-252218-CS-WT

UPC:

197179080657

Electrical and Operational Information

Color Rendering Index:

90

Color Temperature:

2700-3000-3500-4000-5000K

Dimmable:

Yes

Lamping Features:

Dimmable: ELVTRIAC

Bulb Shape: LED Module

Delivered Lumens: 3050

Beam Spread: Flood

Average Hours: 50000

Number of Lights: 1

Lamping Included:

Bulbs Included

Lamping Type:

LED

Lead Wire Length:

6.00

Lumens:

3813

Primary Number of Bulbs:

1

Socket:

LED Module - ACLED Module

Total Number of Bulbs:

1

Total Watts:

45

Voltage:

120

Wattage Max:

45.00

Dimensions and Measurements

Backplate/Canopy Extension:

0.58

Backplate/Canopy Height:

18

Backplate/Canopy Width:

18

Diameter:

18

Height:

4.25

Length:

18

Maximum Adjustable Height:

4.25

Weight:

5.81

Width:

18

Warranty and Specifications

ADA:

Yes

Country of Origin:

China

Title 20:

Yes

Title 24:

Yes

UL Ratings:

ETL/cETL Damp

Warranty:

5 Years Functional, 2 Years Finish

Additional Details

Features:

• CONSTRUCTION: Powerful and bright LED modules line the inside of the luminaire on a steel maintenance plate, diffused with a soft white acrylic diffuser for an even 360 degree illumination. Diffuser can be removed to access CCT switch and for maintenance or cleaning.
• INSTALLATION: Simple installation on a standard, slim, or pancake junction box with all mounting hardware included. LED driver is concealed within the fixture for a flush installation to the ceiling without the need for electric box space.
• FEATURES: 5-CCT selectable switch is located on the back of the fixture for simple access to toggle between 2700K-3000K-3500K-4000K-5000K color temperatures.
• DIMMING: Smooth and continuous dimming with an electronic low voltage (ELV) or TRIAC (standard LED/CFL) dimmer Dims down 10% with a dimmer
• SPECIFICATIONS: High Powered LED Module, Power: 45W, Delivered Lumens: 3,050 LM, CRI: 90, Rated Hours: 50,000, Color Temperature Selectable Switch: 2700K, 3000K, 3500K, 4000K, and 5000K.
• STANDARDS: ETL, cETL, CSA UL 1598 listed and IP44 rated for Dry, Damp, and Wet for interior or exterior covered locations. CEC Title 24 JA8-2016.
• Complete System: Yes
• Mounting: Ceiling/WallAny
• Interior/Exterior: Interior or Exterior Covered
• Additional Features:
  • Hardwired or Portable: Hardwired
  • CEC Compliant: Yes
  • Minimum Height: 4.25

Material:

Aluminum

Shade Information

Shade Features:

White Acrylic Diffuser
