Product Information

Brand:

Generation Lighting

Brand Category:

Indoor/Outdoor Ceiling Fan

Brand Previously:

Monte Carlo Fans

Brand Product Description:

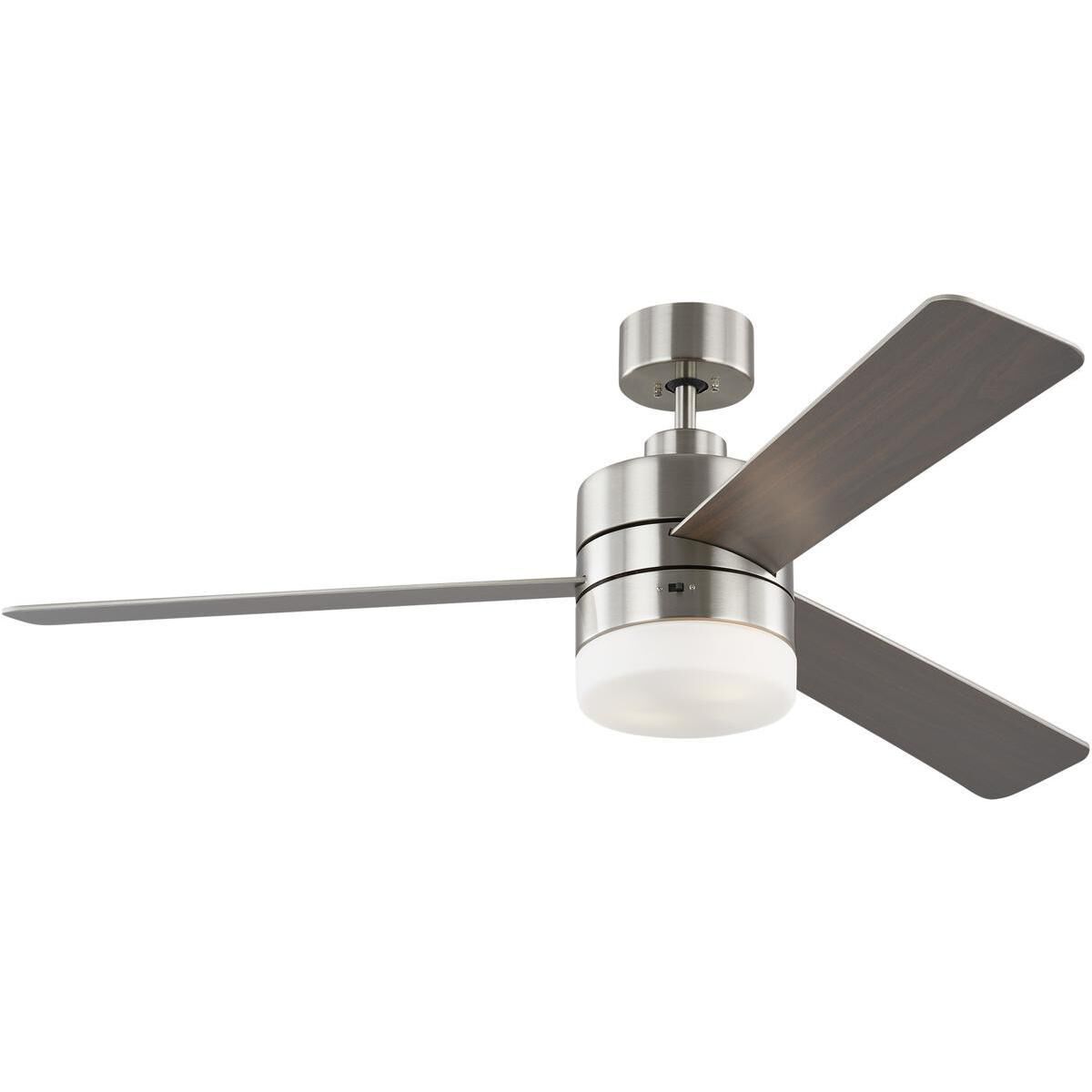

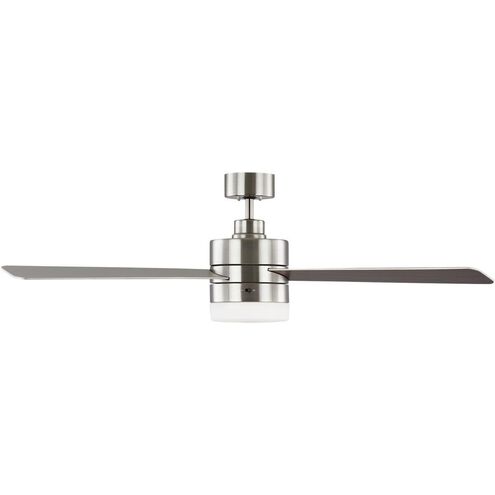

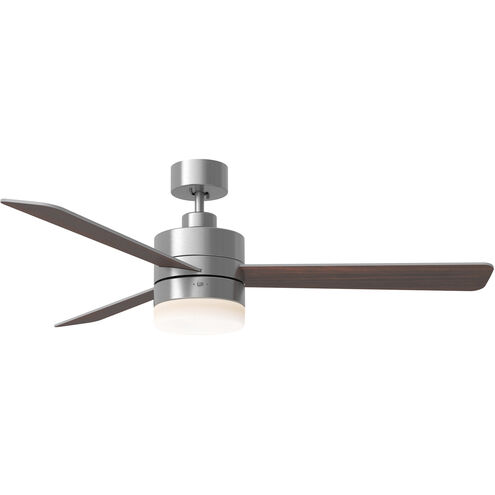

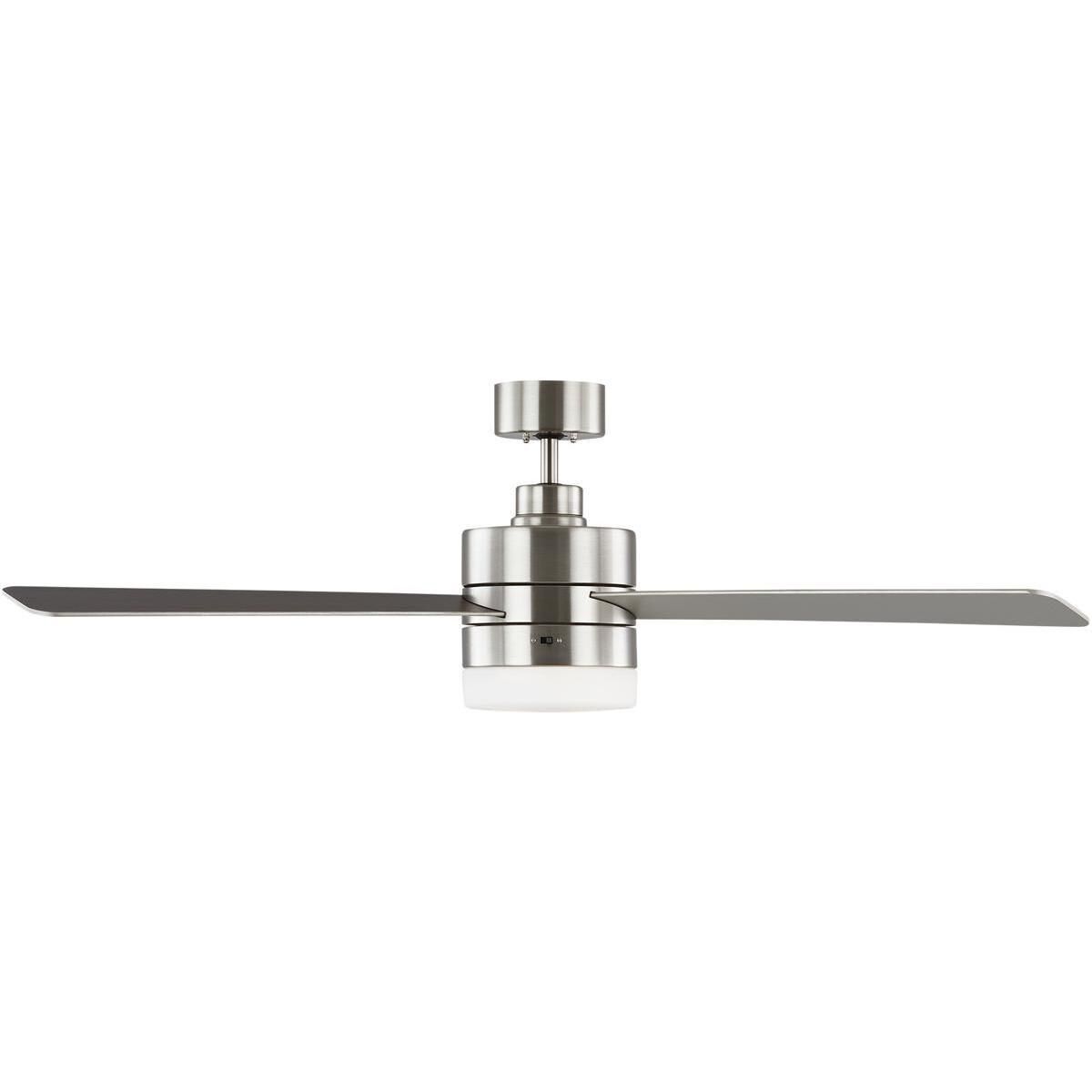

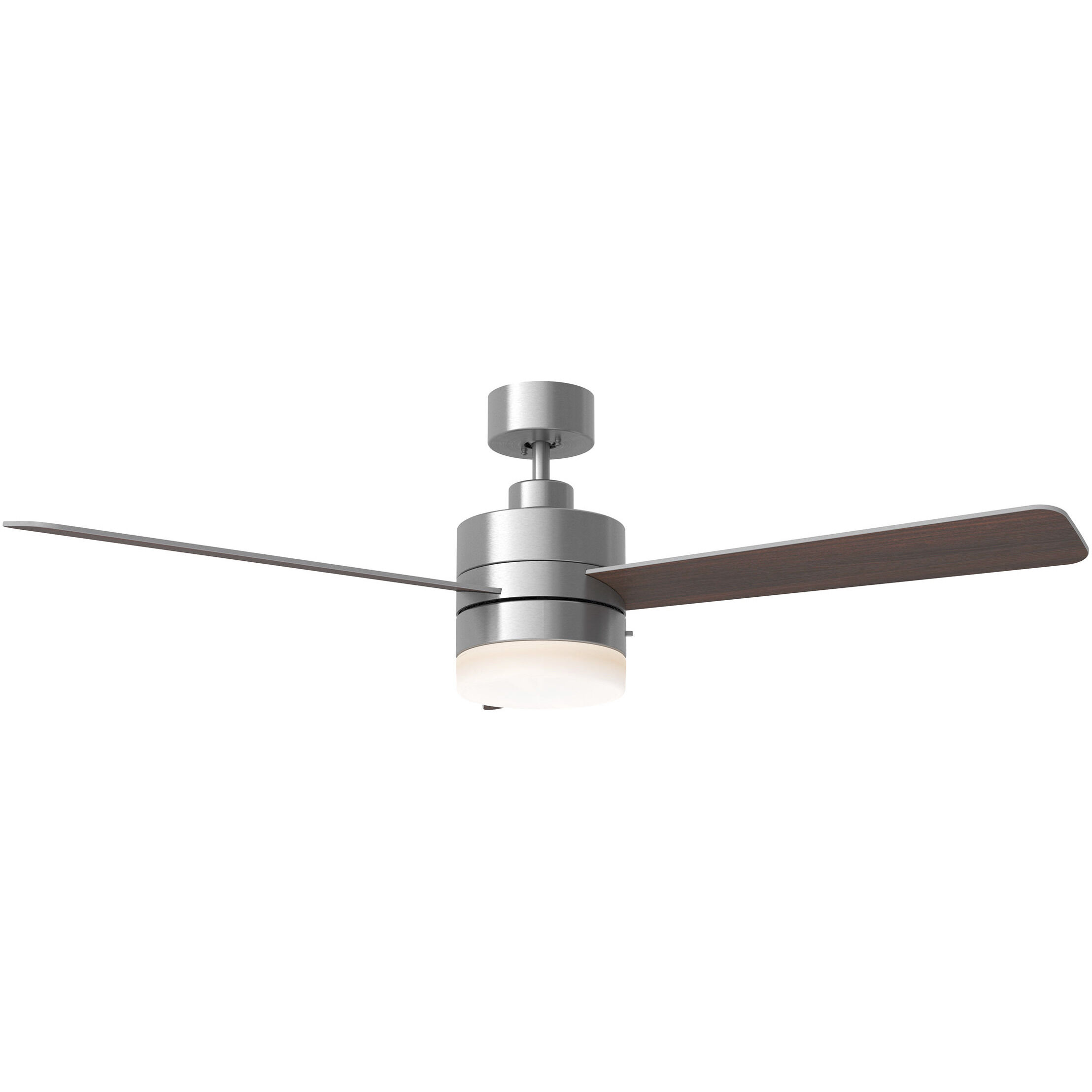

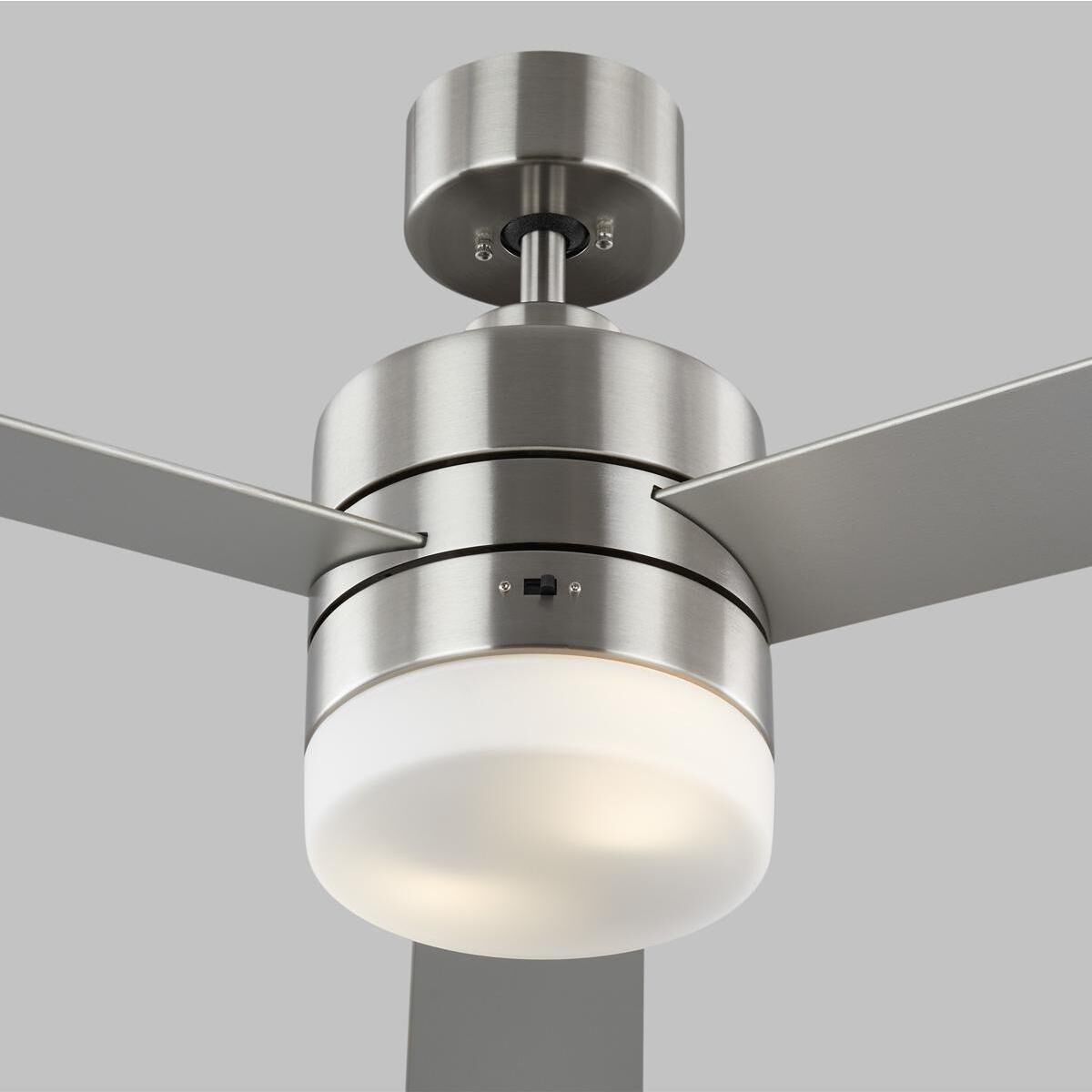

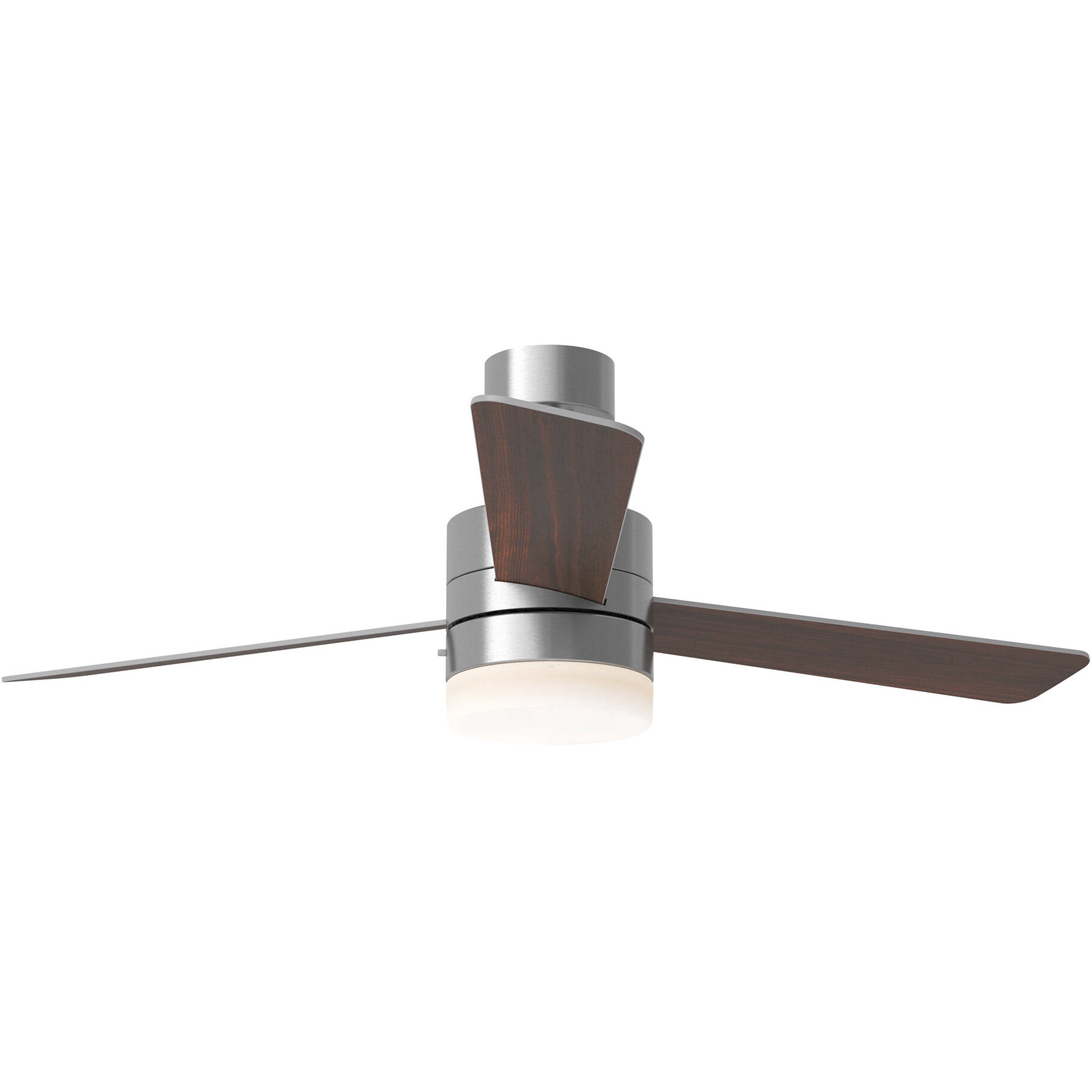

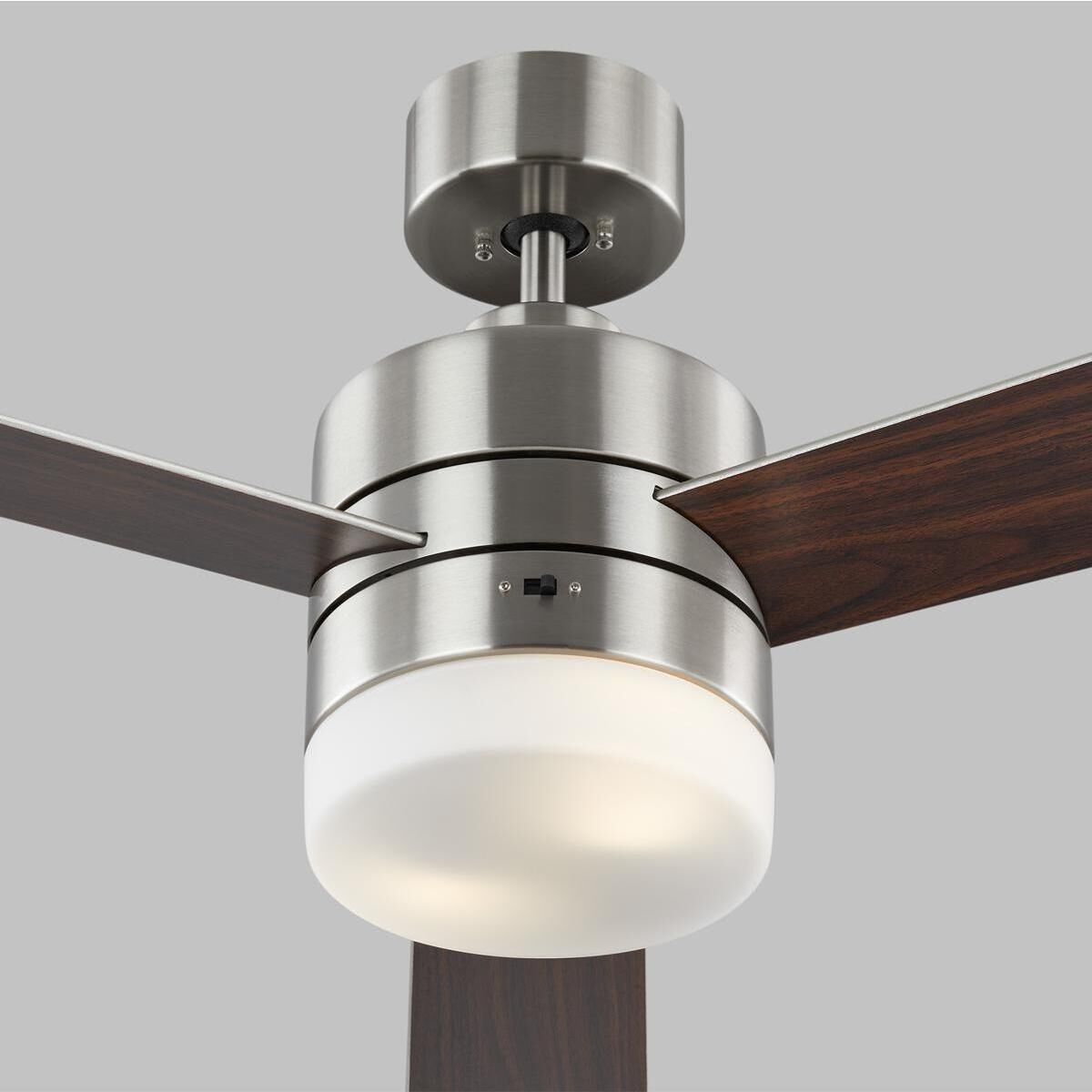

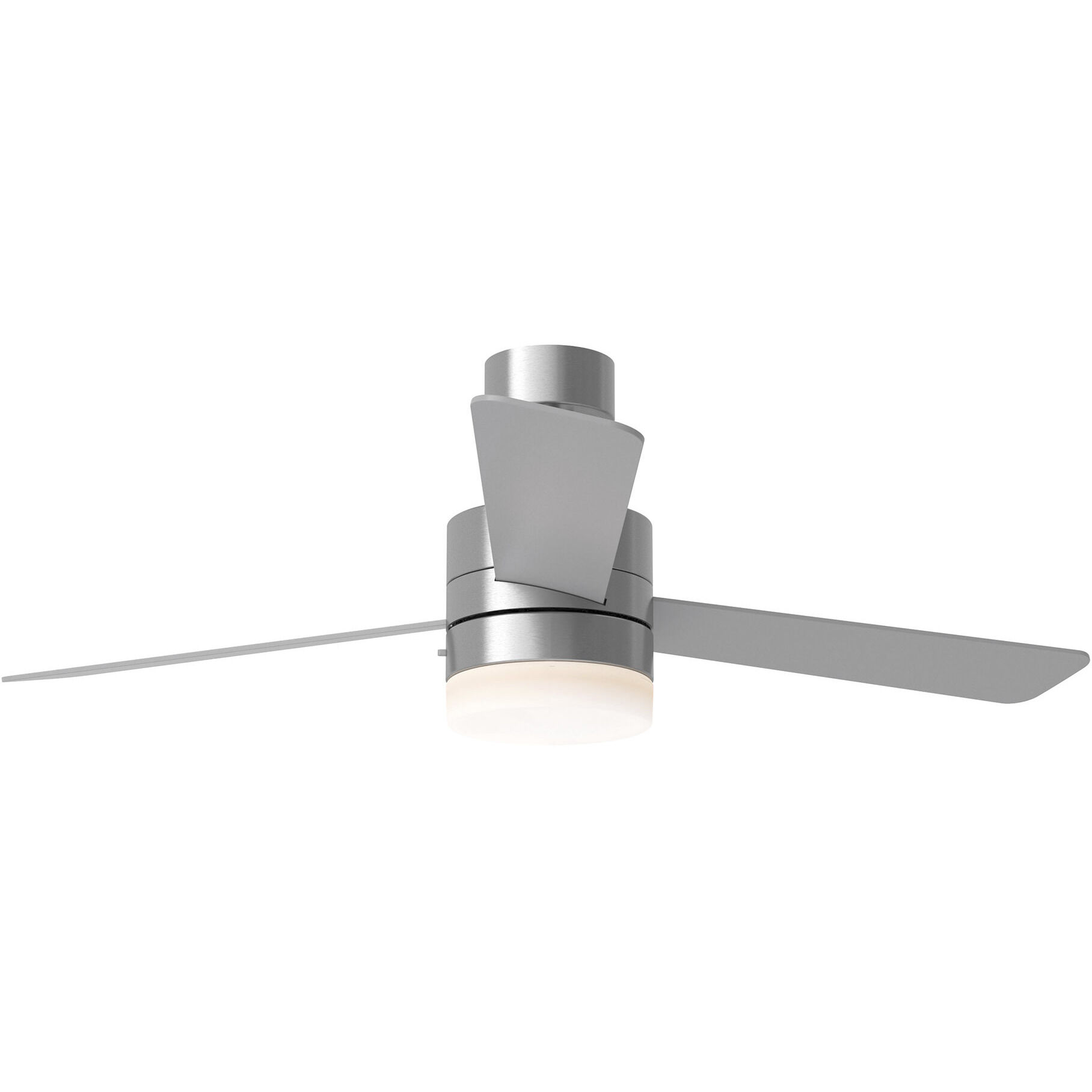

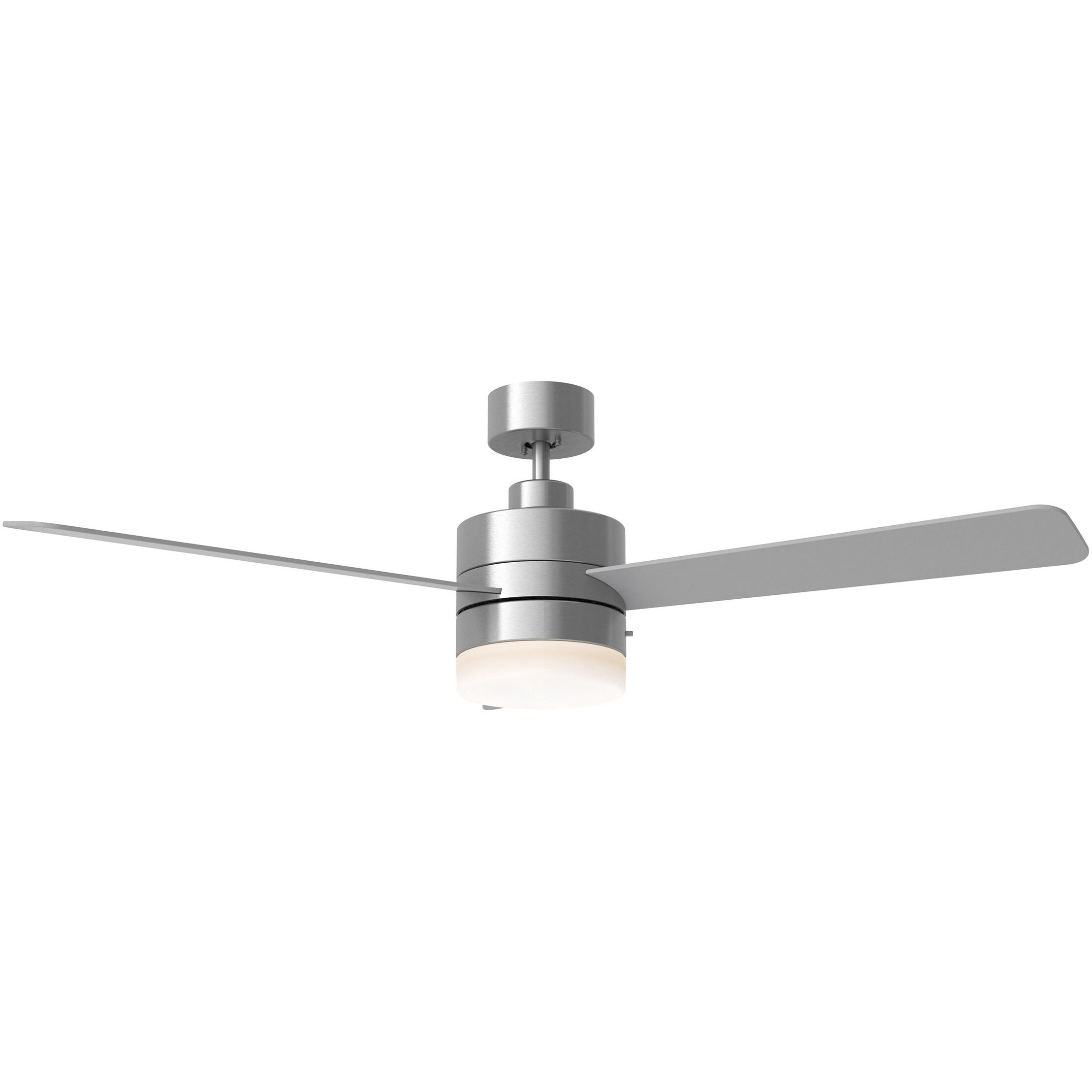

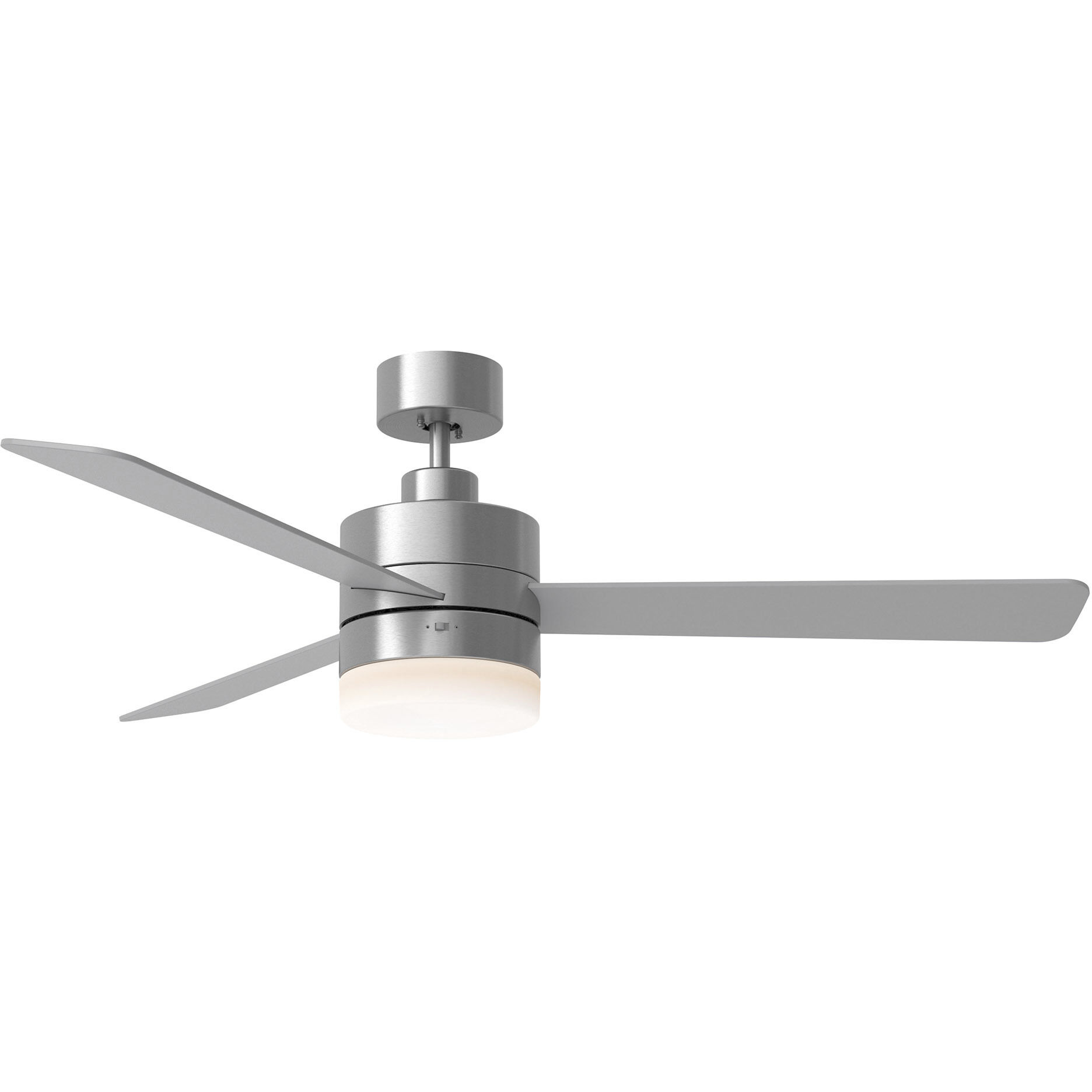

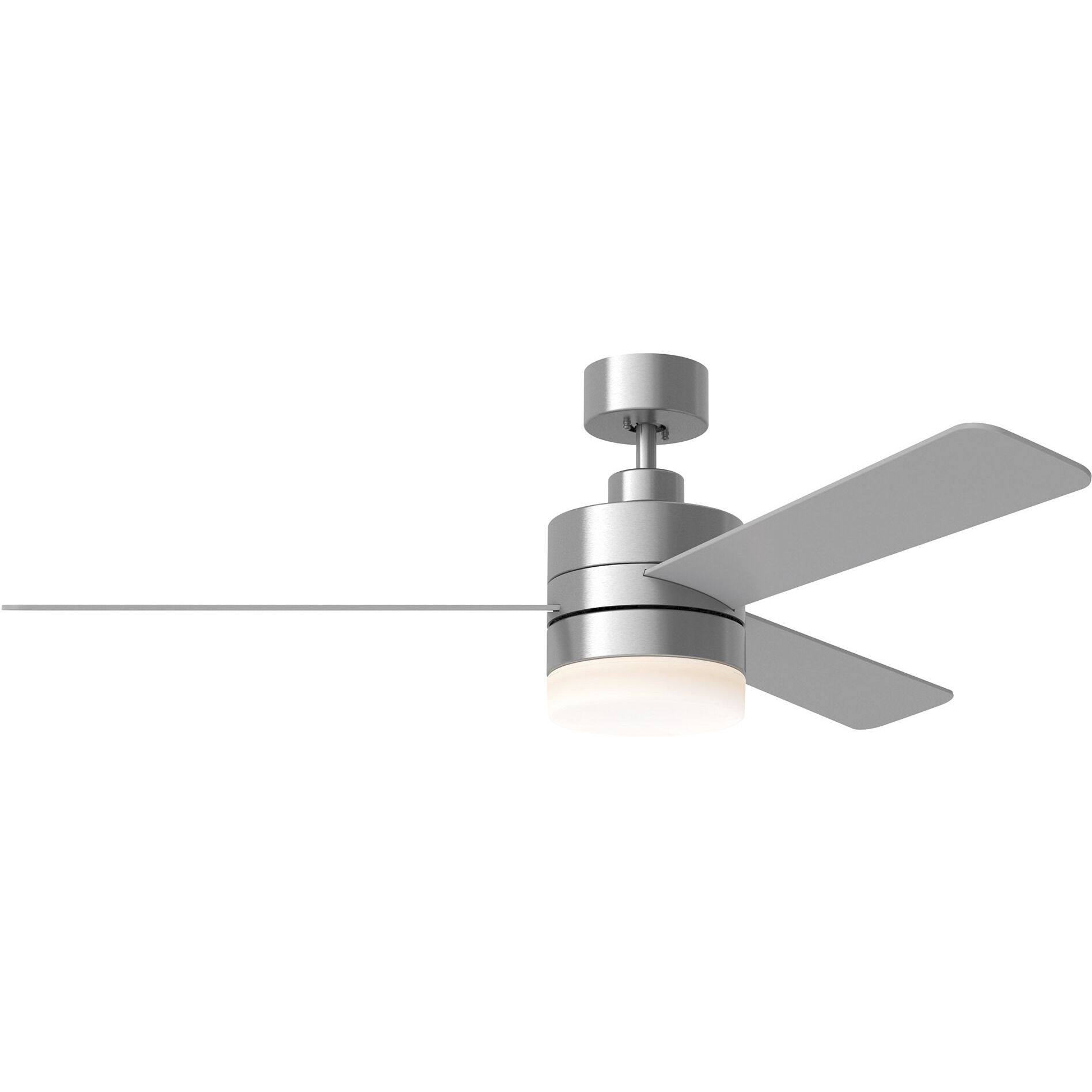

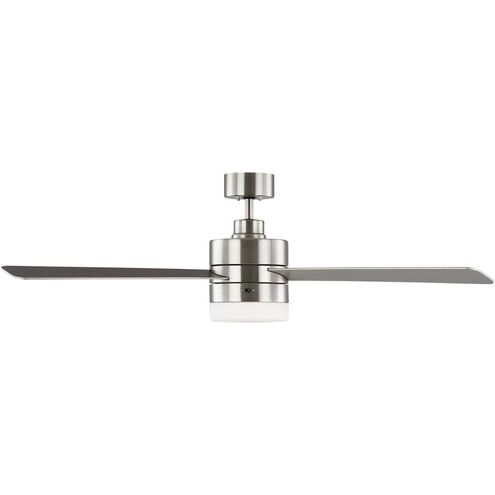

Era 52" Dimmable LED Indoor/Outdoor Brushed Steel Ceiling Fan with Light Kit, Wall Mount Control and Manual Reversible Motor

Shipping Method:

Ground

SKU:

3ERAR52BSD

UPC:

014817623789

Electrical and Operational Information

Color Rendering Index:

90

Color Temperature:

3000K

Dimmable:

Yes

Efficiency:

88

Lamping Category:

LED

Lamping Features:

• Bulb Rated Life: 15,000 Hours
• Bulb Dimming Range Min: 10
• Bulb Dimming Range Max: 100

Lamping Included:

Bulbs Included

Lamping Type:

A19 LED

Lumens:

800

Primary Number of Bulbs:

2

Socket:

E26 Medium

Total Number of Bulbs:

2

Voltage:

120

Wattage Max:

9.00

Dimensions and Measurements

Backplate/Canopy Extension:

2.38

Backplate/Canopy Width:

5.13

Diameter:

52

Height:

15

Weight:

16.1

Width:

52

Fan Blade Information

Fan Blade Pitch:

13

Fan Blade Span:

52

Number of Fan Blades:

3

Fan Operational Information

Fan Features:

• Motor Size: 153.0 X 18.0 mm
• Motor Type: AC
• Capacitor Value: 4.5uF/300V/105C
• CFM (High): 5657
• Watts (High): 64
• CFM/Watt (High): 88
• CFM (Low): 2036
• Watts (Low): 10
• CFM/Watt (Low): 204
• Min. Ceiling Height: 7.91
• Blade-to-Ceiling Height: 10.9
• Max Blade-to-Ceiling Height: 10.9
• Min Blade-to-Ceiling Height: 9.5

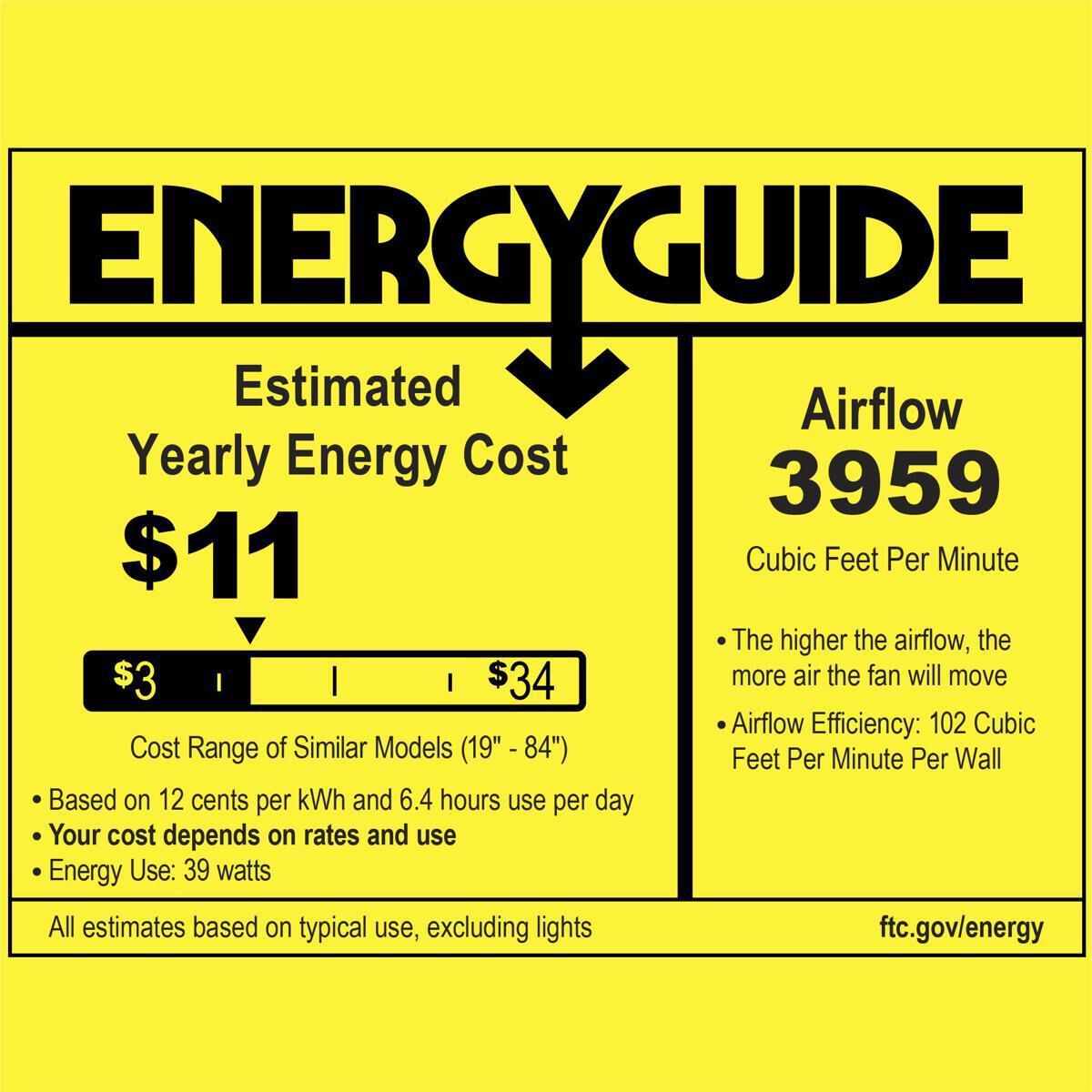

• Standard Weighted Average Airflow: 3959
• Standard Energy Use Wave: 39
• Standard Estimated Yearly Energy Cost: 11
• Standard Efficiency: 102
• Remote Control Type: Wall Mount Control, 3-speed, and Manual Reverse

Motor Wattage:

64

Unit Air Flow:

5657

Included Components

Light Kit Included:

Yes

Warranty and Specifications

Country of Origin:

Thailand

Title 24:

Yes

UL Ratings:

cETL Damp

Additional Details

Chain Cord Features:

Downrod: 4.5 in. L x 0.5 in. Dia.

Features:

• From the brand formerly known as Monte Carlo

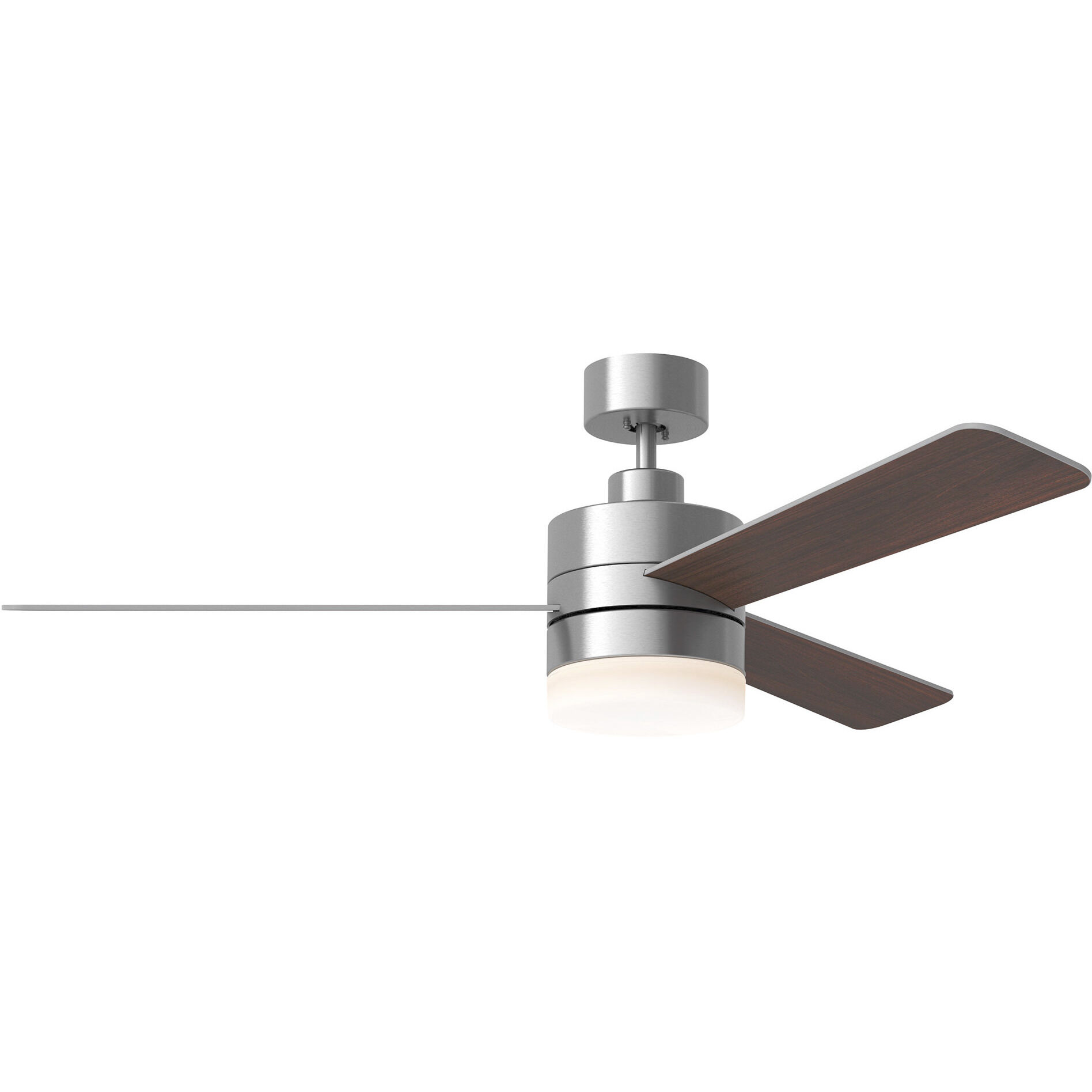

• Modern, transitional, 3 blade fan with American Walnut and silver reversible blades for damp locations
• 4-speed dimmable fan with wall control ideal for small bedrooms, living rooms, family rooms
• 4.5" brushed steel downrod included, sloped ceiling compatible with LED light kit (bulbs included)
• Max Ceiling Slope: 18
• TSCA Title VI Compliant: Yes
• Max Ceiling Slope: 18
• Canopy Style: Downrod
• TSCA Title VI Compliant: Yes

Glass Features:

Matte Opal

Shade Information

Shade Features:

Matte Opal Glass Shade
