Product Information

Brand:

Modern Forms

Brand Category:

Flush Mount Ceiling Fan

Brand Product Description:

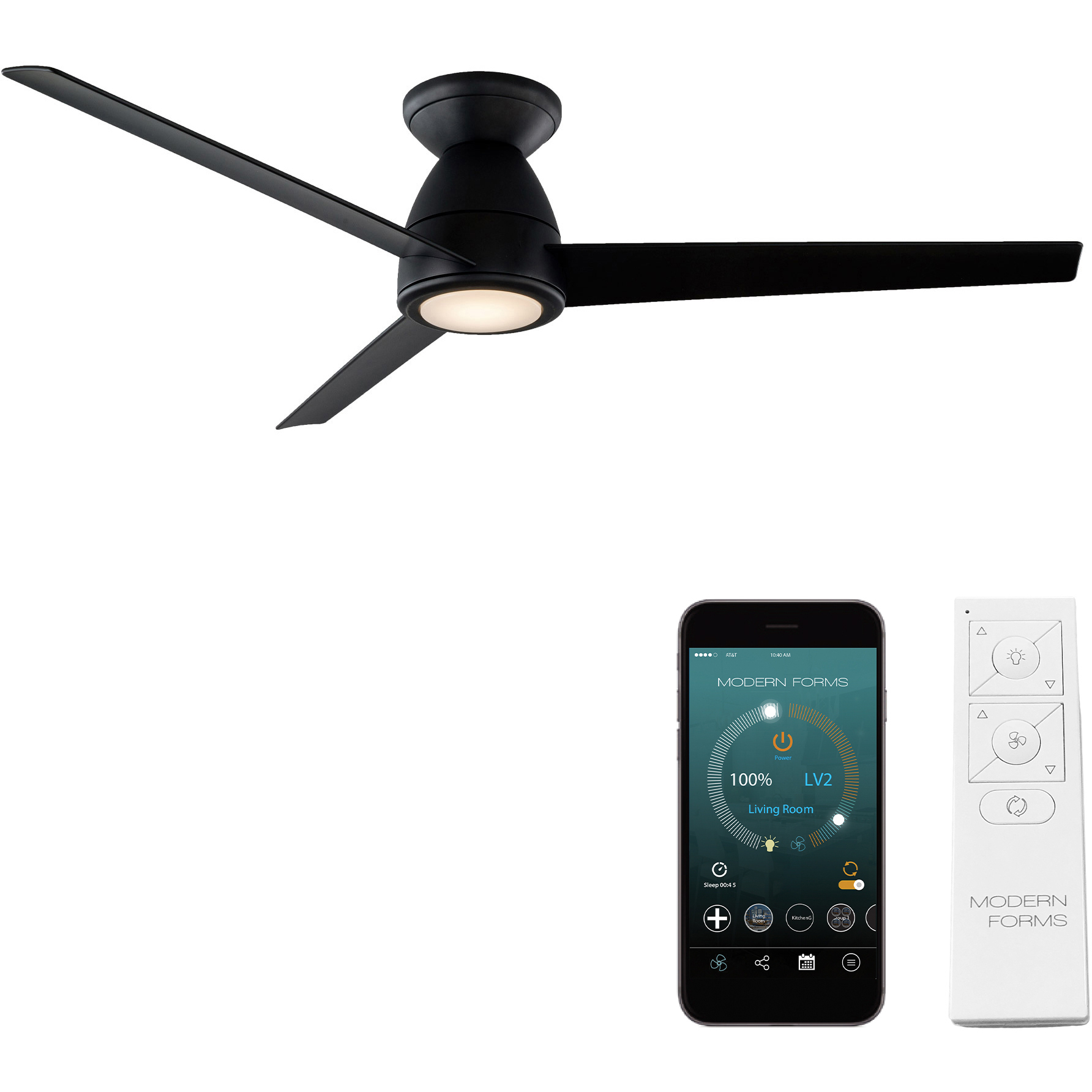

Tip Top 3-Blade Flush Mount Ceiling Fan

Shipping Method:

Ground

SKU:

FH-W2004-52L-35-MB

UPC:

790576820637

Electrical and Operational Information

Color Rendering Index:

90

Color Temperature:

3500K

Dimmable:

Yes

Efficiency:

153

Lamping Category:

LED

Lamping Features:

Delivered Lumens: 622

Average Hours: 50000

Lamping Included:

Bulbs Not Included

Lamping Type:

Integrated LED

Lead Wire Length:

36

Lumens:

1100

Primary Number of Bulbs:

1

Socket:

LED Module

Total Number of Bulbs:

1

Total Watts:

47

Voltage:

120

Wattage Max:

13.00

Dimensions and Measurements

Backplate/Canopy Height:

7.39

Backplate/Canopy Width:

7.39

Diameter:

7.53

Height:

7.78

Weight:

11.00

Width:

52

Fan Blade Information

Fan Blade Pitch:

14

Fan Blade Span:

52

Number of Fan Blades:

3

Fan Operational Information

Fan Features:

Fan Features:

Speeds: 6
• Reversible Motor: Yes
• Motor Type: DC
• CFM (High): 5187
• CFM (Low): 1544
• RPM (High): 167
• RPM (Avg): 103
• RPM (Low): 39
• Motor Size: 125 x 12
• Motor Power-High (Watts): 34
• Yearly Energy Cost: 3.49
• Loudness: 15db
• Amperage (High): 0.28
• Blades Included: Yes
• Blade Material: ABS
• Reversible Blades: No
• Blade Length: 22.24
• Light Kit Diffuser: Frosted PC Diffuser
• Light Kit Adaptable: Yes
• Light Kit Type: LED
• Cap Included: No
• Fan Blades Replace: RPL-F2004-52-BD-MB

Motor Wattage:

34

Unit Air Flow:

3366

Included Components

Light Kit Included:

Yes

Warranty and Specifications

Country of Origin:

Taiwan

Energy Star:

Yes

Install Position:

Down

Title 20:

Yes

Title 24:

Yes

UL Ratings:

ETL/cETL/UL/cUL/CSA CAN Wet

Warranty:

5 years LED module, 2-years for finishes, lifetime on the motor, 1 year for all other parts.

Additional Details

Features:

• Modern Forms Fans pair with the smart home tech you know and love, including Google Assistant, Amazon Alexa, Samsung Smart Things, Control4, and Josh AI. Coming Soon: Savant, Lutron Homeworks, and Nest.
• Free app download: Sync with our exclusive Modern Forms app to control fan speed, use smart features like breeze mode, adaptive learning, create groups, and reduce energy costs. New: Bluetooth compatible for improved range and an unlimited amount of fans can be controlled with remote or wall control within range.
• Battery operated Bluetooth remote control with wall cradle included (Part No. F-RCBT-WT). Optional Bluetooth hardwired wall control sold separately (Part No. F-WCBT-WT) and can be set-up as 3 or 4 way switches when you purchase more than one. Can be controlled through an Android or iOS wall mounted tablet with Wi-fi.
• Modern Forms Fans are made with incredibly efficient and completely silent DC motors and are up to 70% more efficient than traditional fans. Every fan is factory-balanced and sound tested to ensure each fan will never wobble, rattle or click.
• Replaceable LED luminaire powered by WAC Lighting, features smooth and continuous brightness control. Available in 2700K, 3000K, and 3500K options, order accordingly.
• Standards: ETL, cETL, UL, cUL, CSA CAN Wet Location Listed for indoor or outdoor applications. Flush mount ceiling fans are perfect for 7-10ft ceiling heights.
• Interior/Exterior: Interior/Exterior
• Sloped Ceiling Adaptable: No
• Low Ceiling Adaptable: Yes
• Additional Features:
  Optional Control Type: iOS/Android App, Wifi, Voice, Remote Control, Wall Panel, Wall Control
  • Efficacy (Lum/Watt): 48
  • Beam Spread: Flood
  • Shade Replace: RPL-F2004-GLA
  • Light LED Replace: F3IN-120V-R1-35
  • Receiver Replace: F-R3-2004-055
  • Remote Control: F-RCBT-WT
  • Wall Control: F-WCBT-WT

Material:

Aluminum
