Product Information

Brand:

Matthews Fan Co

Brand Category:

Ceiling Fan

Brand Product Description:

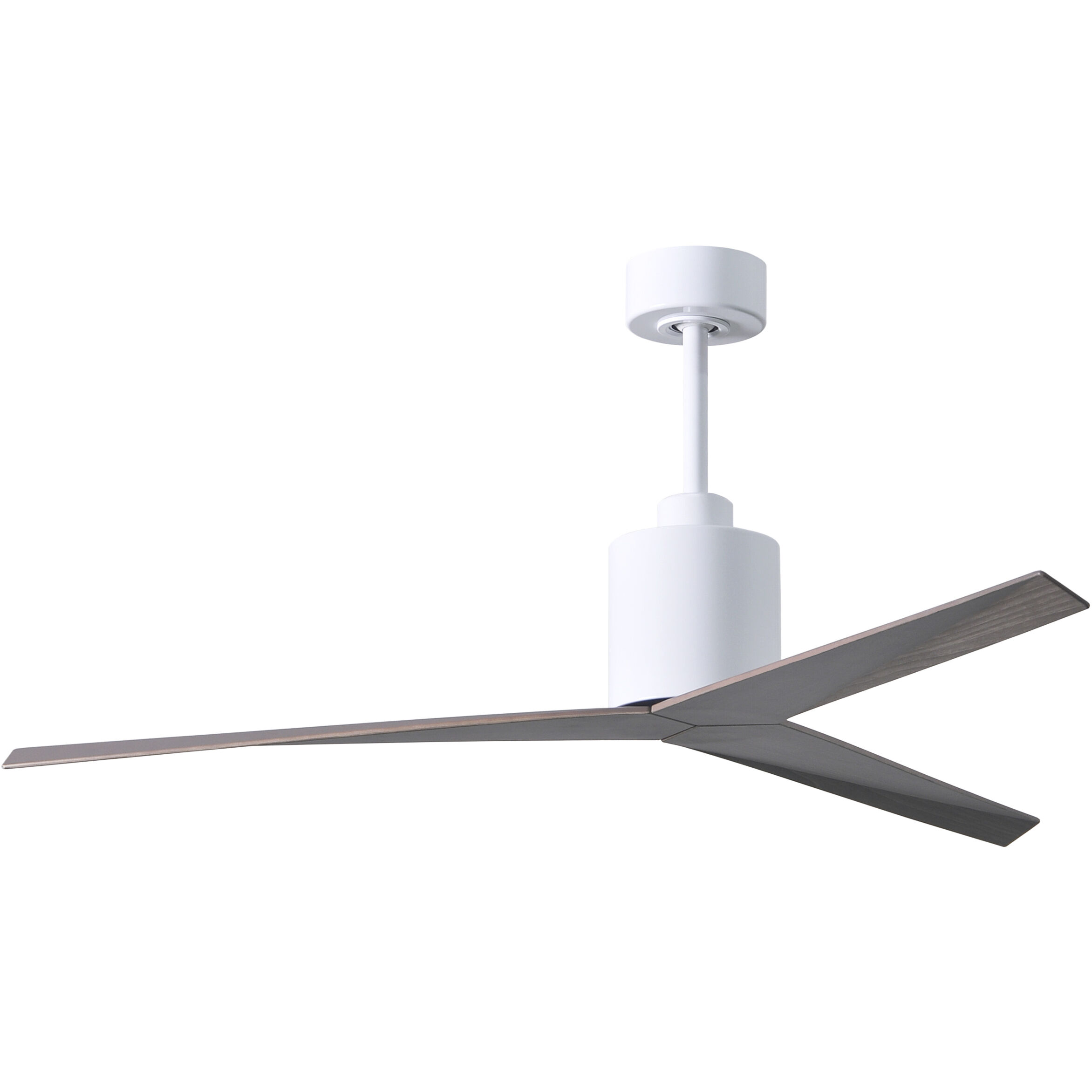

Eliza - Ceiling Fan - Gloss White Finish - Old Oak Tone Blades

Designer:

Stephen Katz

Shipping Method:

Ground

SKU:

EK-WH-OO

UPC:

792145375050

Electrical and Operational Information

Dimmable:

No

Efficiency:

160.22

Lamping Included:

Bulbs Not Included

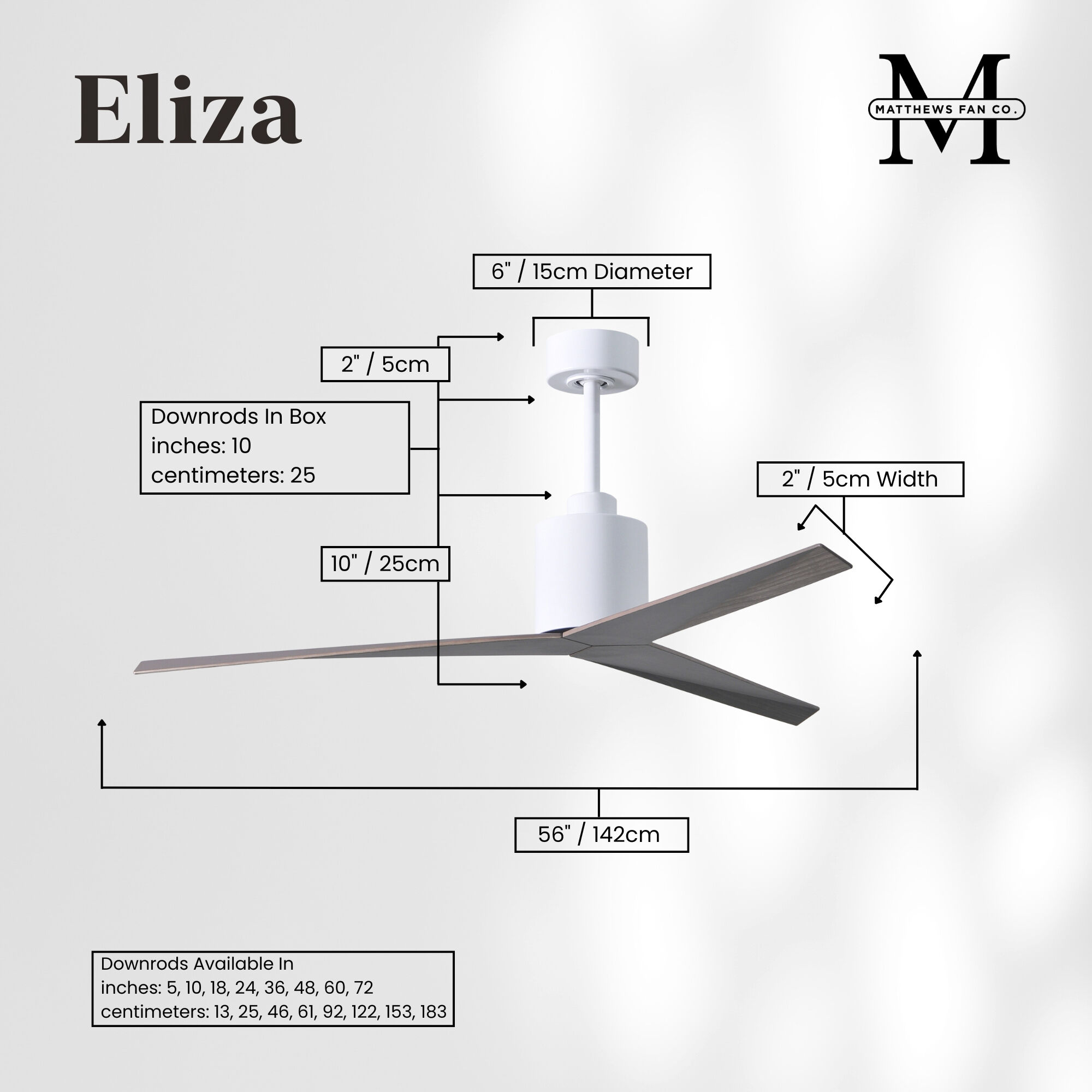

Dimensions and Measurements

Backplate/Canopy Extension:

2

Backplate/Canopy Height:

6

Backplate/Canopy Width:

6

Diameter:

56

Height:

12

Maximum Adjustable Height:

84

Weight:

17.00

Width:

56

Fan Blade Information

Fan Blade Pitch:

27

Fan Blade Span:

56

Number of Fan Blades:

3

Fan Operational Information

Fan Features:

• Light Kit: No
• Blade Material: ABS
• Motor/Housing Finish: Gloss White
• Motor Type(AC/DC): DC
• Sloped Ceiling Compatible: Yes
• Reversible Motor(Y/N): Yes
• Number of Speeds: 6
• Control Frequency 110V: 304
• Control Frequency 220V: 434
• Remote Control FCC ID: CHQ7255T
• Wall Control FCC ID: CHQ9053T

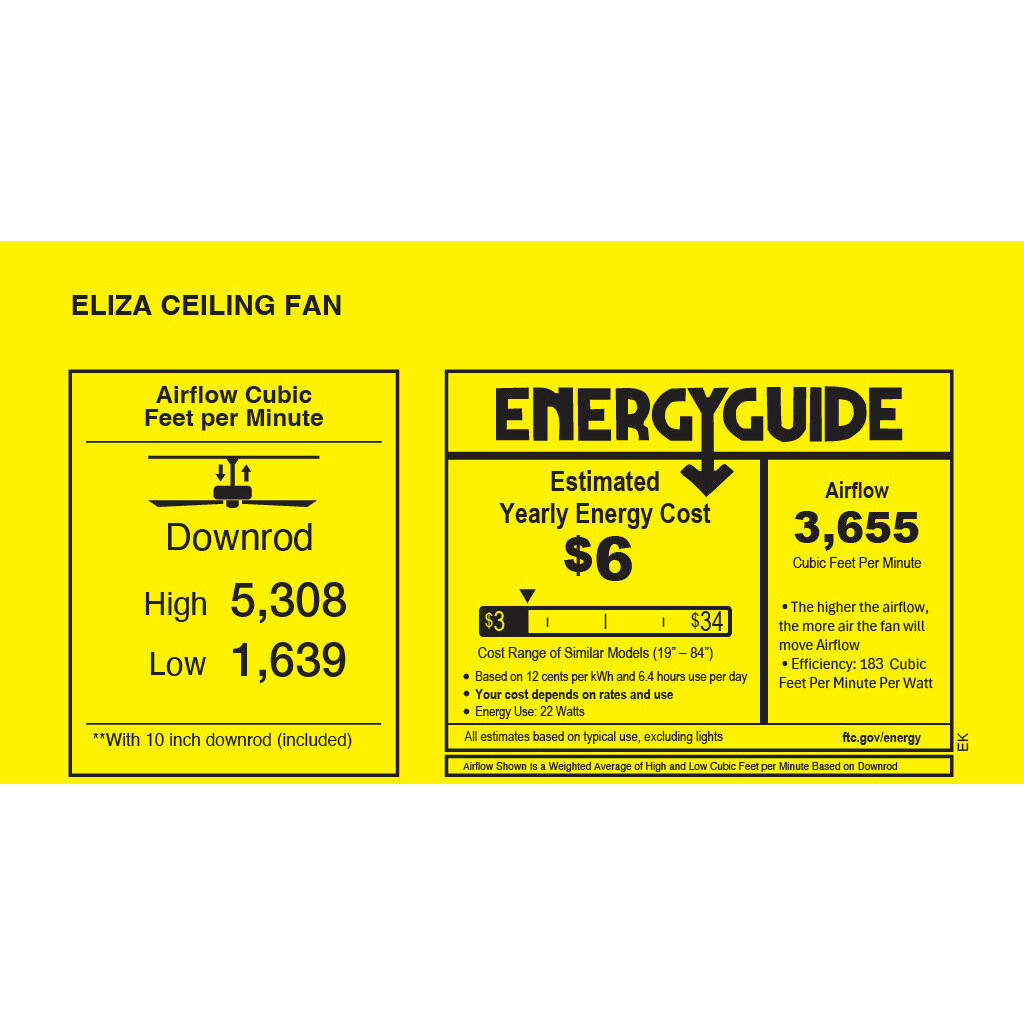

• CFM (High): 5308
• CFM (Low): 1639
• CFM (Average): 3474
• Airflow Efficiency (CFM/Watt Average): 183
• High RPM: 153
• Low RPM: 52
• Noise Level: Silent
• Oscillates(Y/N): No
• Blade Width (IN): 2

Motor Wattage:

33.13

Unit Air Flow:

5308

Included Components

Light Kit Included:

No

Warranty and Specifications

Country of Origin:

China

Install Position:

Ceiling

Location Rating:

Suitable for Damp Locations

Prop 65:

Yes

Title 20:

Yes

UL Ratings:

UL/cUL Interior/Exterior Wet

Warranty:

Limited Lifetime

Additional Details

Chain Cord Features:

Downrod(s) Included 10" x 1"

Features:

• Additional Feature:
  • IP21
  • 0.5 AMP
  • 7" Height from floor
  • Ideal for great rooms, large basements, or open-concept living areas.
  • Cast Aluminum 50%, Heavy Stamped Steel 50%
  • Adjustable Height: Yes
  • Oversized: Rooms over 400 sq. ft. 56 inches or larger blade span
  • Amps: 0.5
  • Minimum Height (IN): 17
  • Commercial and/or Residential Use: Both
  • Our Atlas wood blades are sustainably sourced, ensuring responsible forestry practices. At Matthews, we recycle 95% of all damaged or unused materials, minimizing waste across our production process. Our shipping materials are made from molded pulp.
  • Direct exposure to rain, snow, and water, making it ideal for uncovered outdoor spaces
  • Marine Grade: No
  • Safety Rating: 3129198
  • WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
  • CPSC - 15 U.S. Code 1278a Compliant: Yes
  • IP Rating: IP21
  • Not recommended for coastal, saltwater and chlorine locations
  • Required Assembly: Yes
  • Dust with a dry soft cloth
  • Wood Color/Finish: Old Oak Tone
  • Does Warranty Support Commercial Use (Y/N): Yes

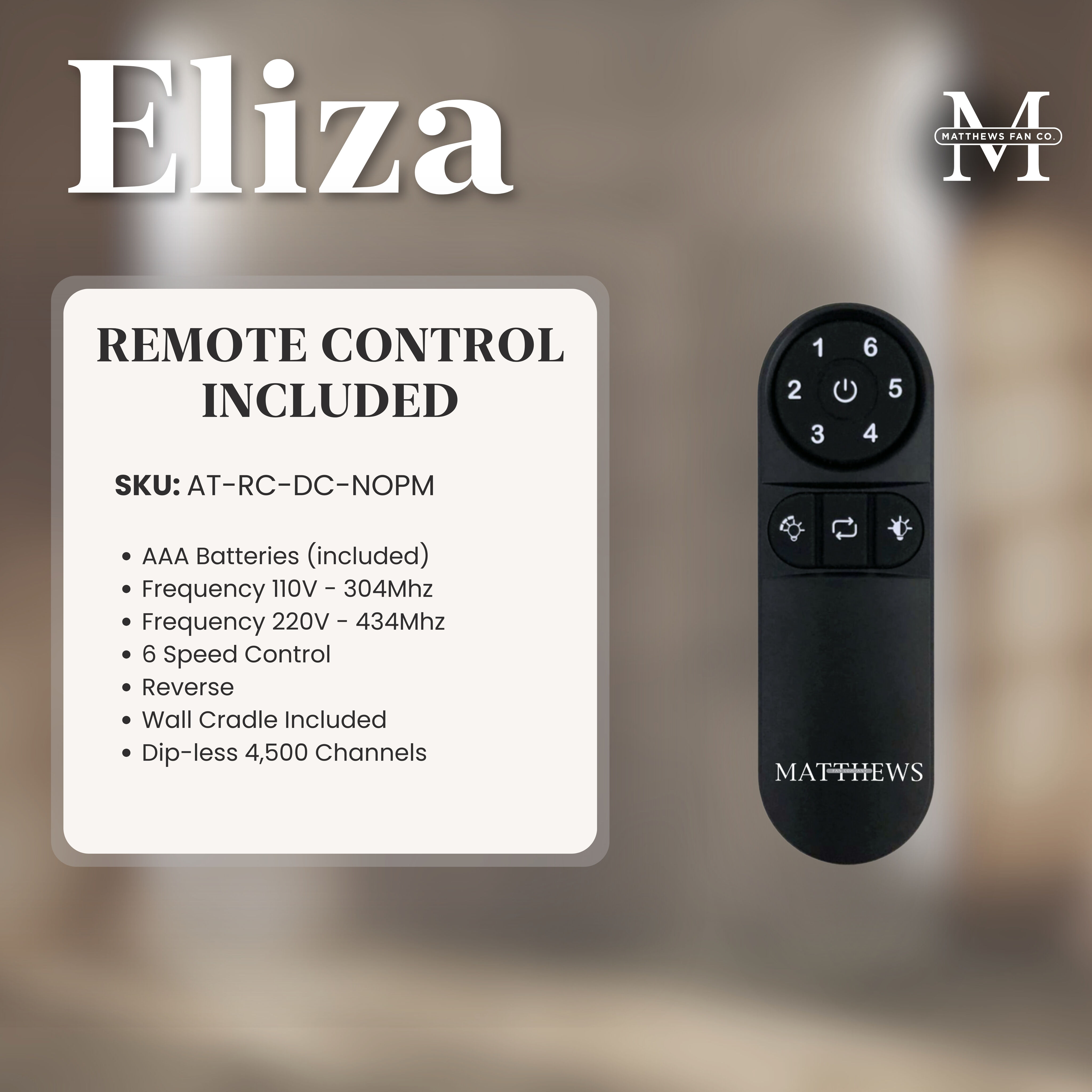

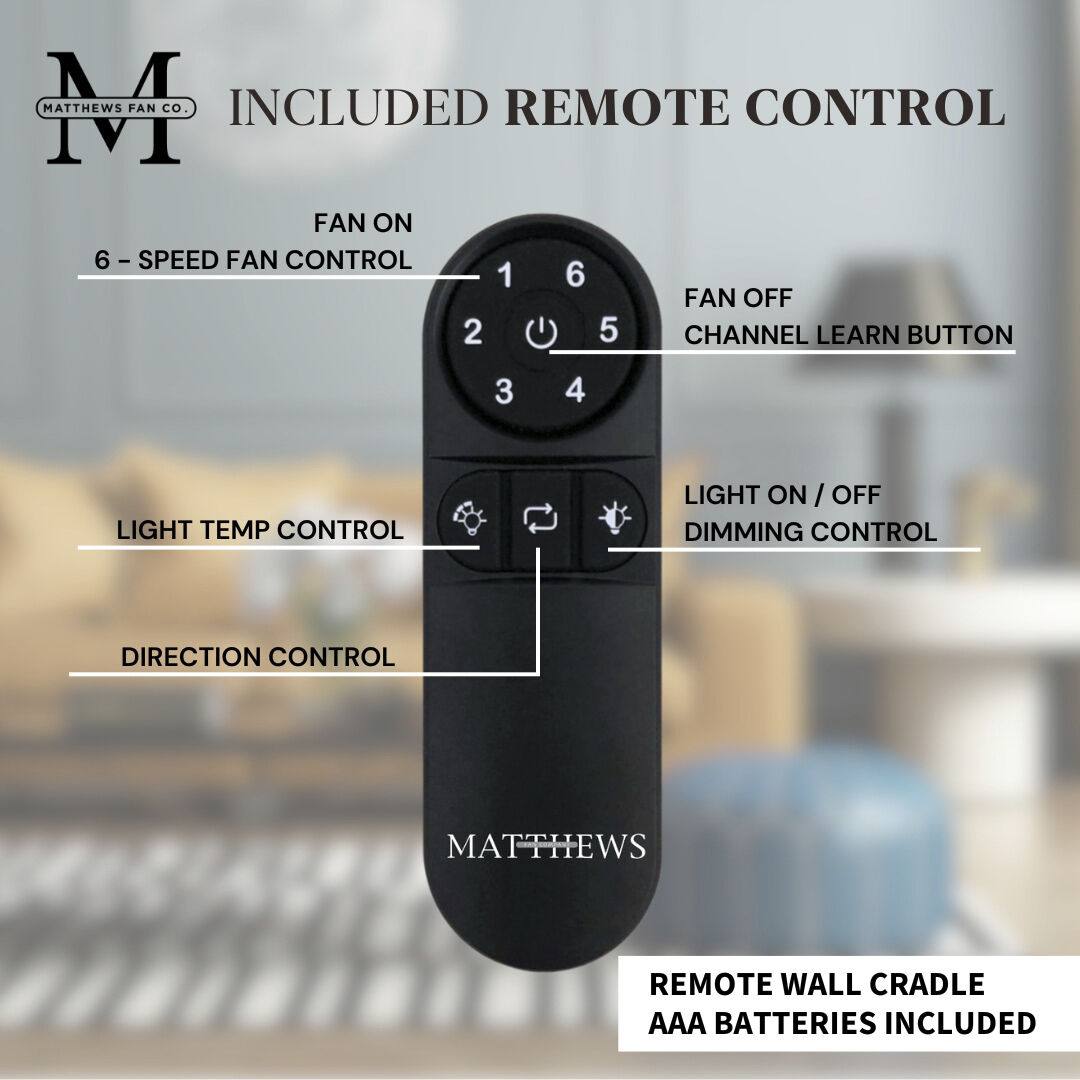

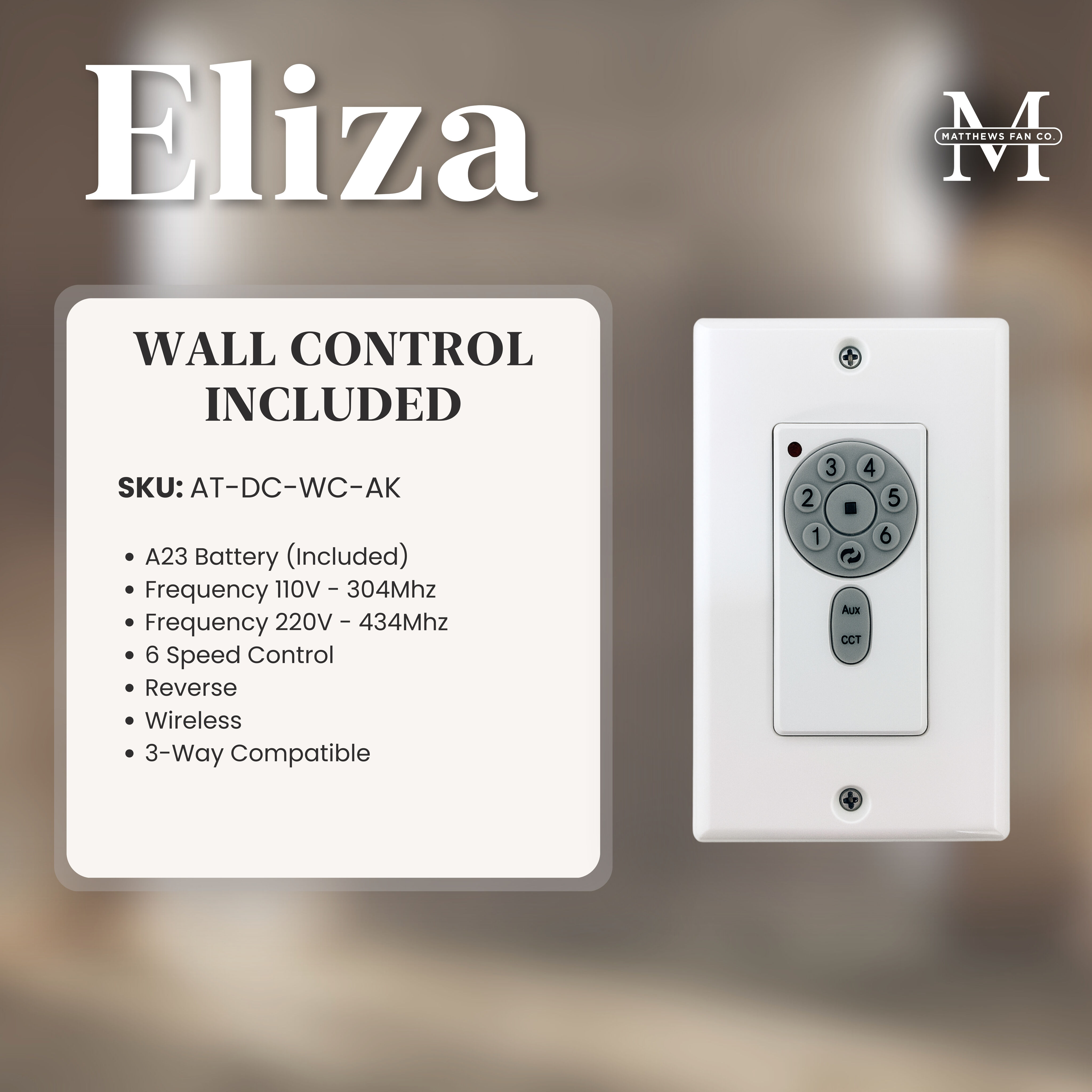

• One six speed hand-held and one six speed decora style, white wall mounted control. Both controls reverse direction of fan.
• Standard Equipment: 10" Downrod. Additional downrod lengths are available and sold separately to achieve the optimal look and functionality for your space
• ABS All weather System protected blades.
• Suitable for fully exposed outdoor areas such as open decks, pergolas, and gazebos and designed to withstand all weather conditions
• Constructed of cast aluminum and heavy stamped steel
• Enhance comfort and efficiency throughout different seasons by adjusting the direction of airflow with the reverse function
• Energy efficient, ultra-quiet, six speed, reversible DC motor with new, reliable technology.

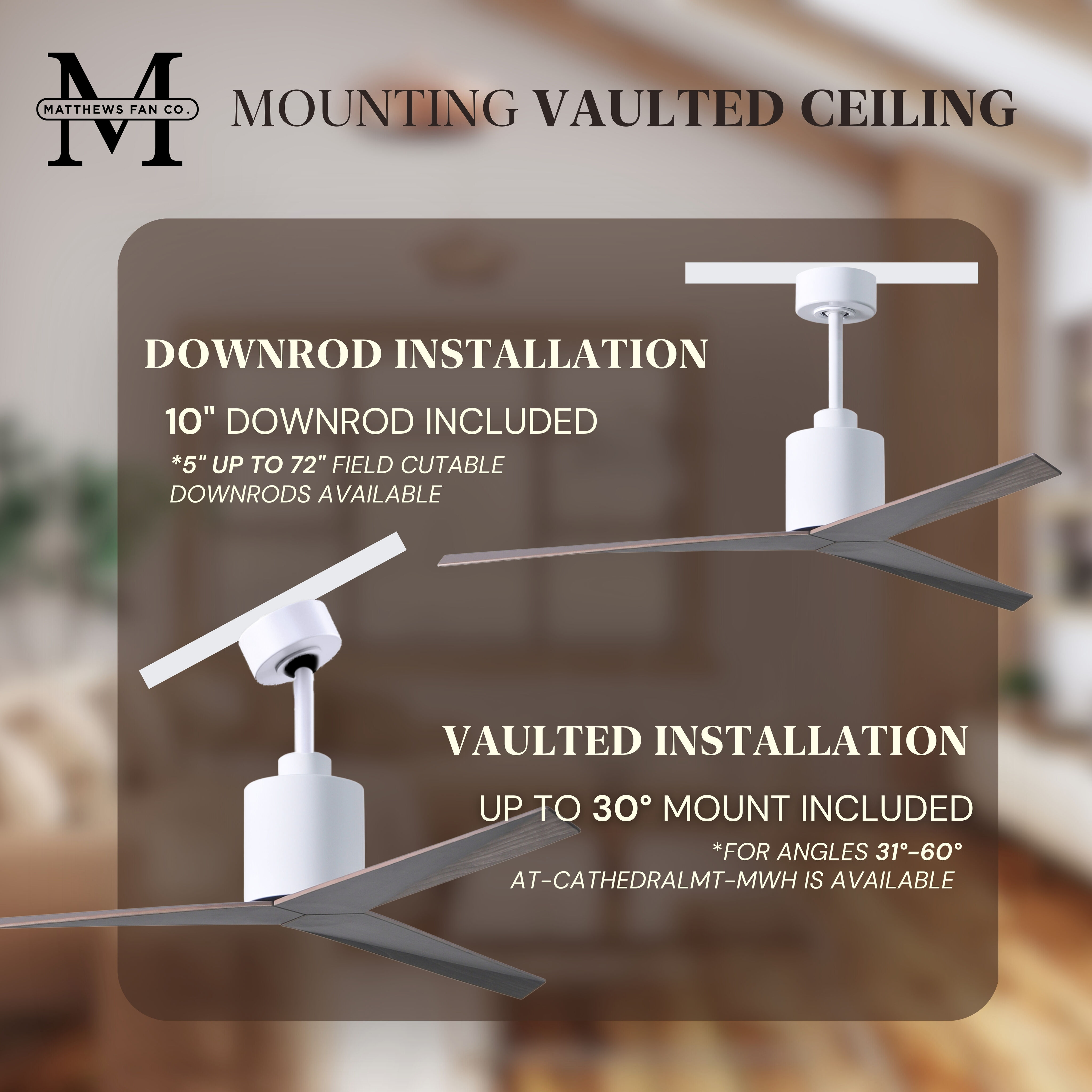

• Compatible with slanted ceilings up to 30 degrees for flexible installation. Optional 60 degrees cathedral canopy mounting system available
• Silent operation for cooling without noise

Material:

Cast Aluminum/Heavy Stamped Steel

Switch Features:

Remote Control, Wall Control
