Product Information

Brand:

Kuzco Lighting

Brand Category:

Ceiling Fan

Brand Product Description:

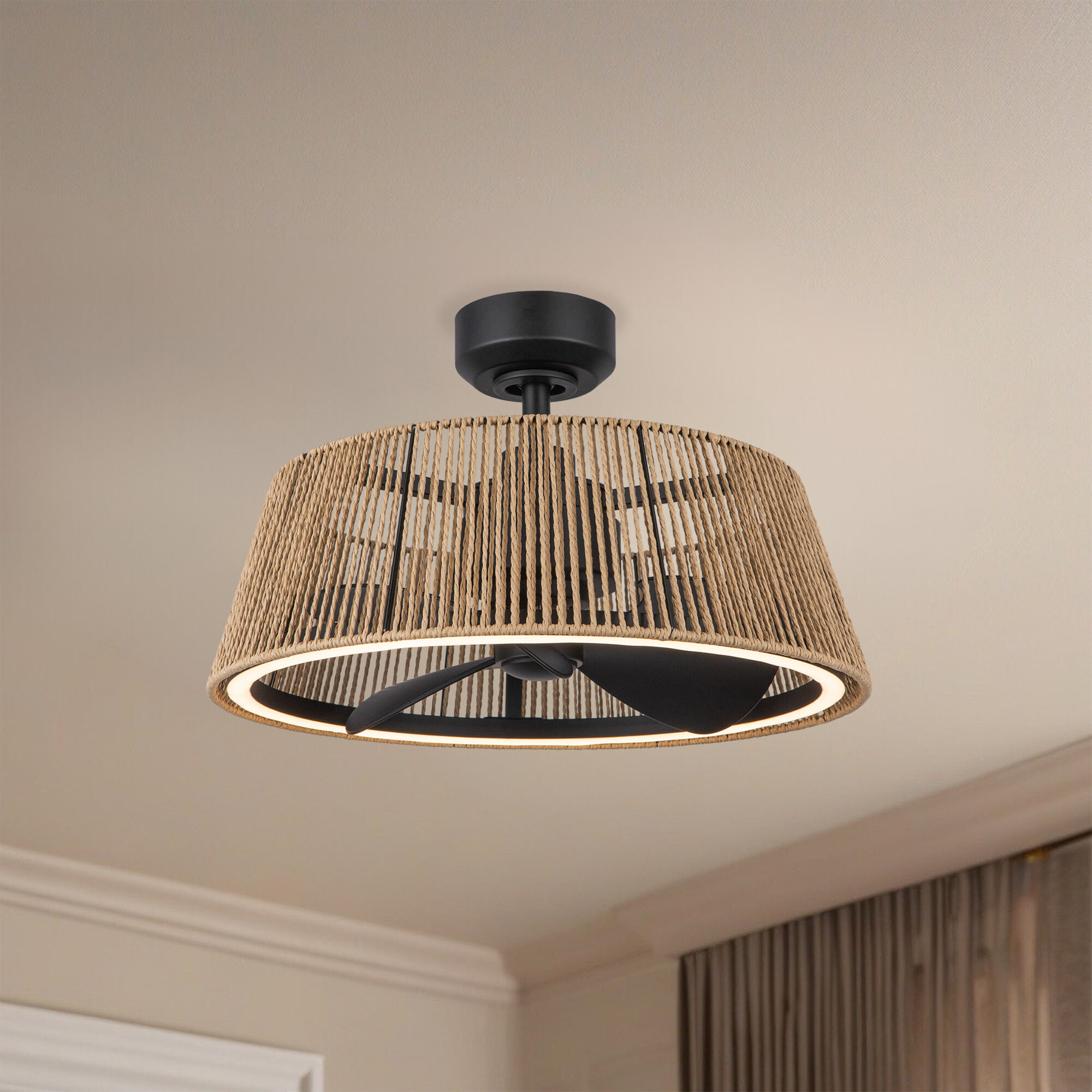

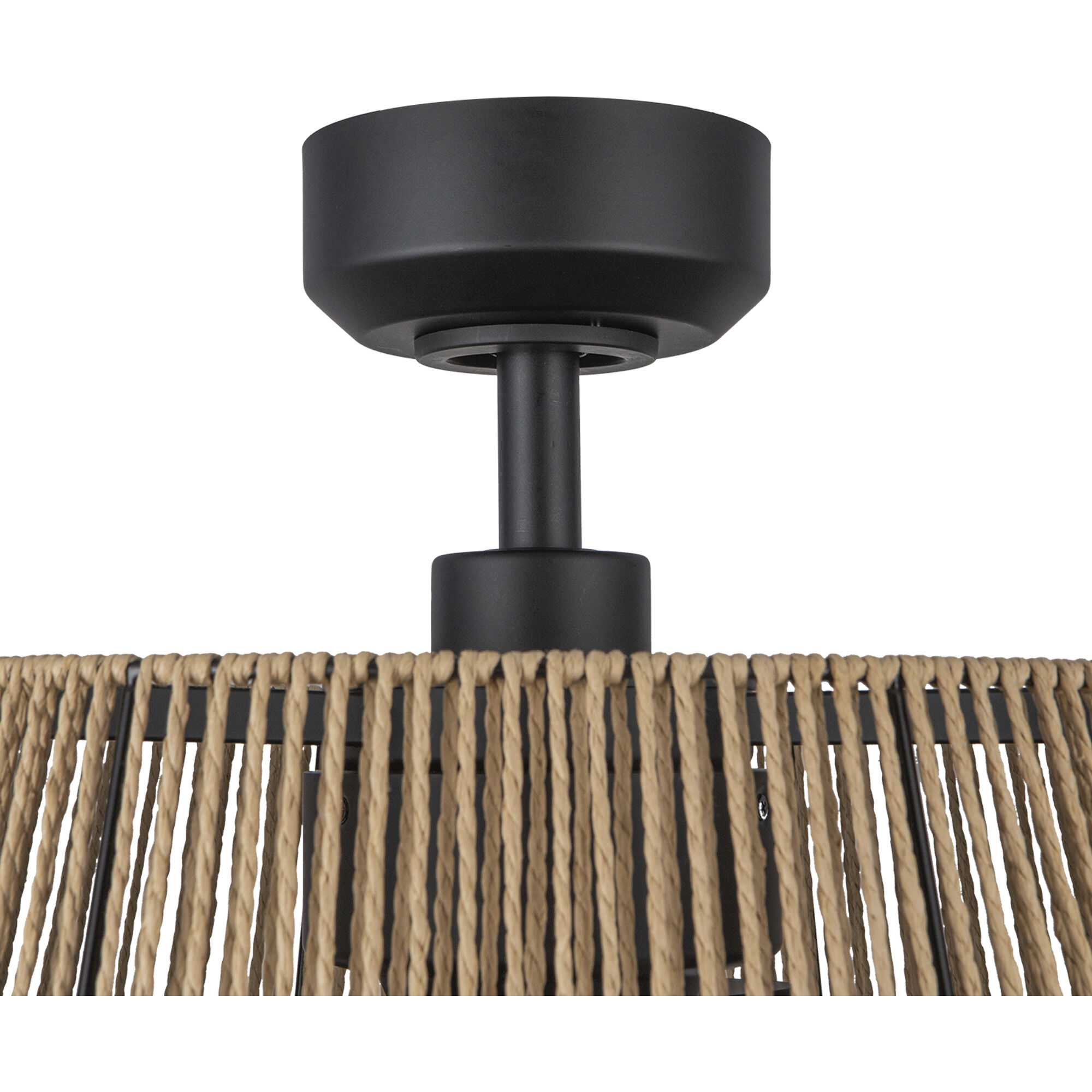

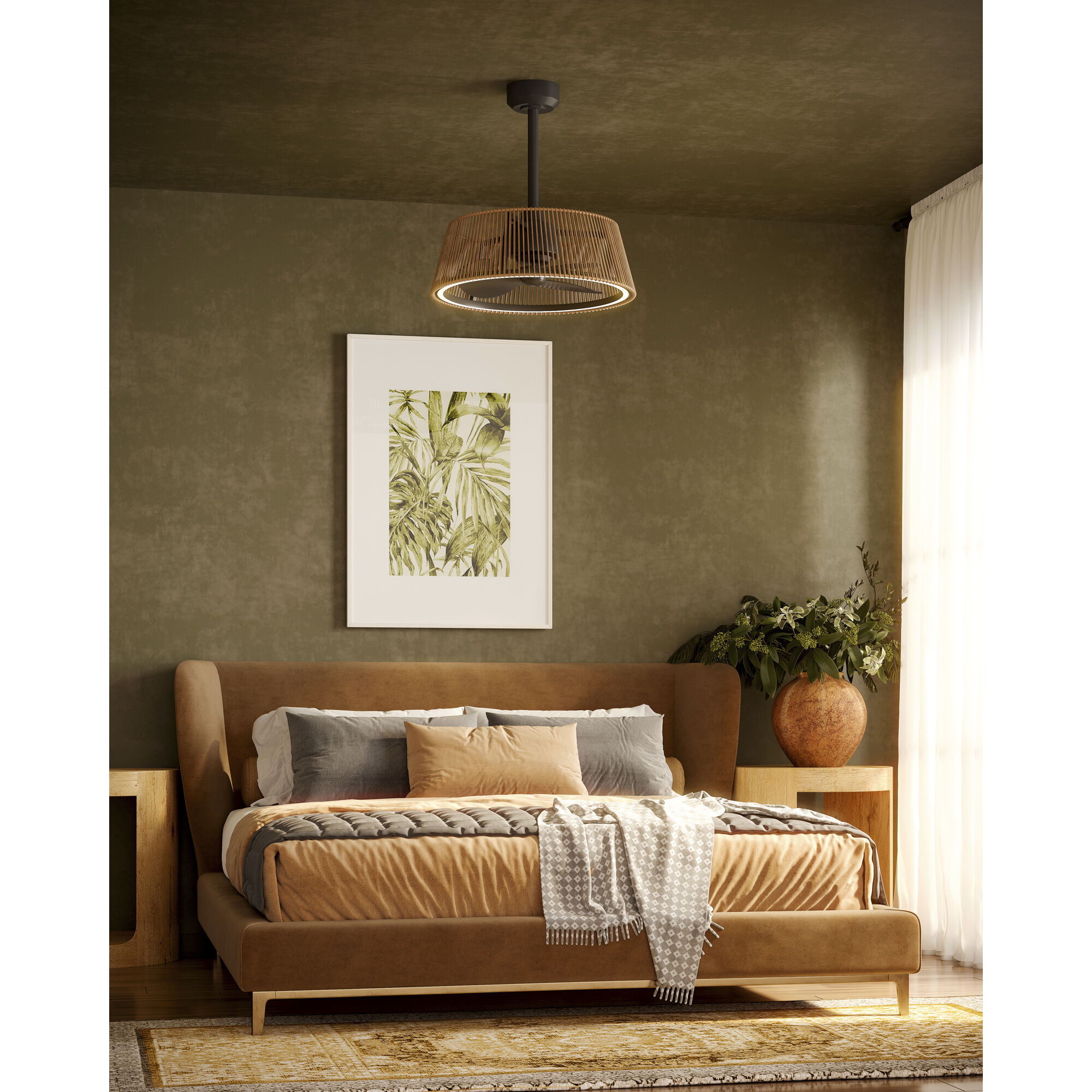

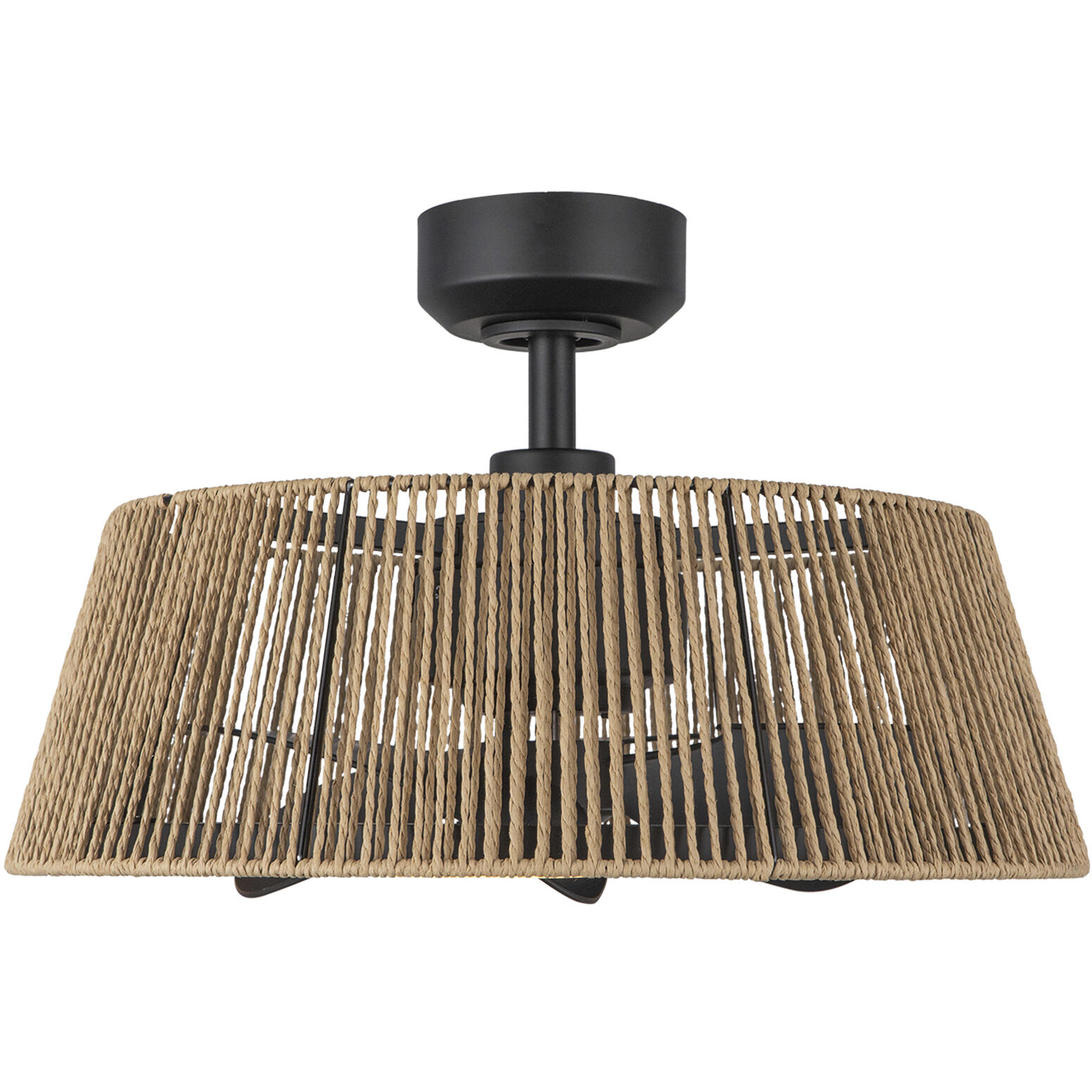

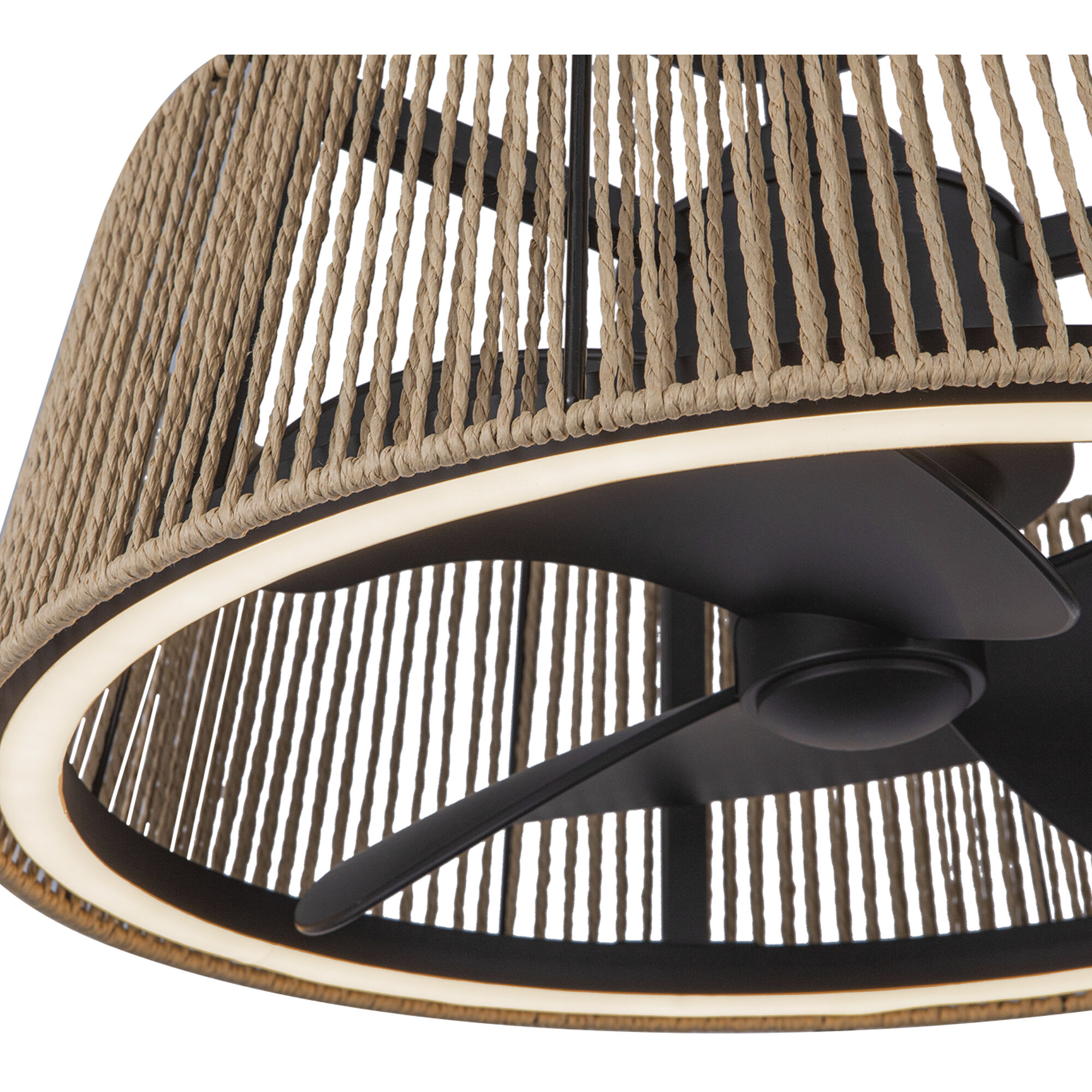

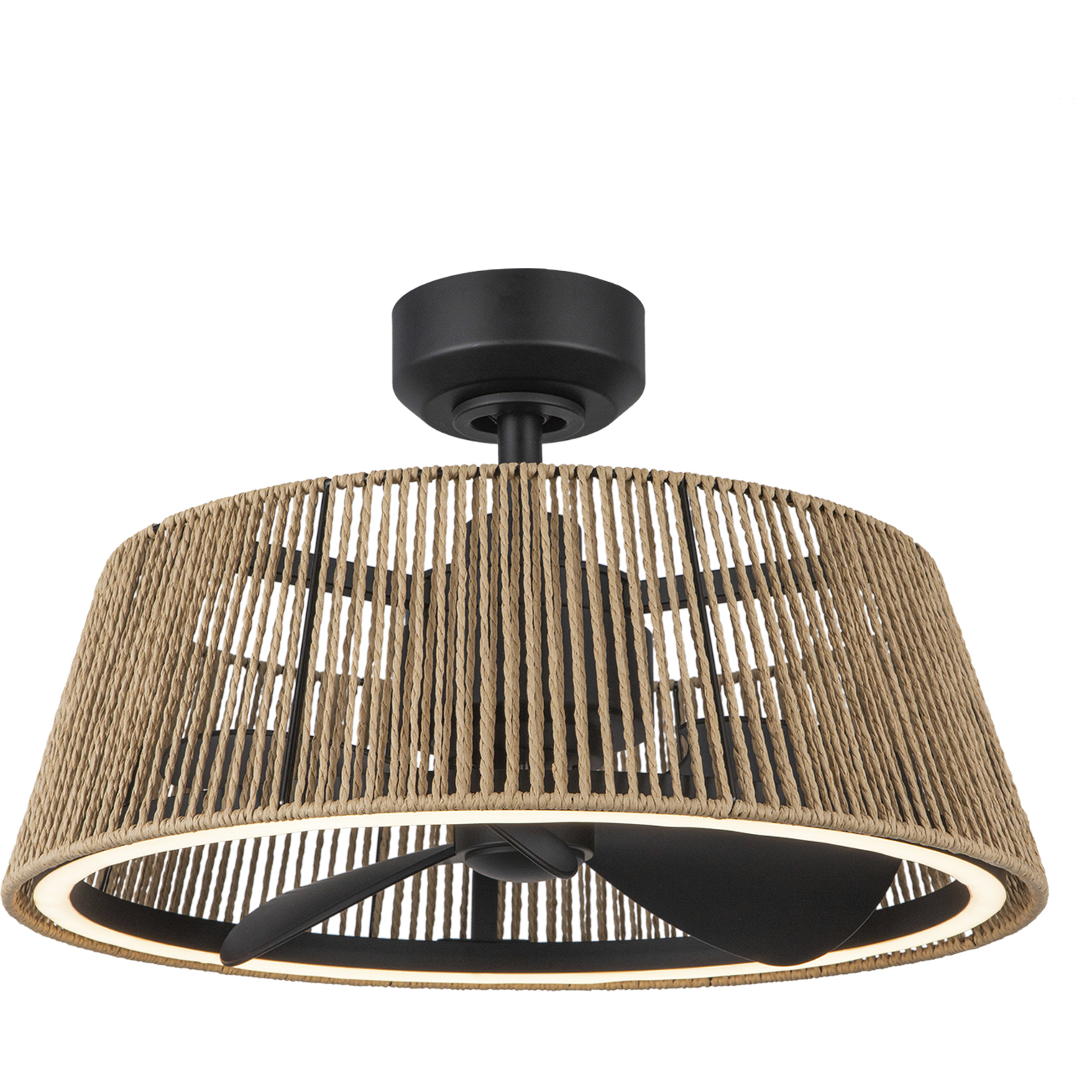

Isla 24-in Matte Black/Braided Rope Damp-Rated Dimmable LED Ceiling Fan

Designer:

Kuzco Studio

Shipping Method:

Ground

SKU:

CF41424-MB-BR-5CCT

UPC:

691759133622

Electrical and Operational Information

Color Rendering Index:

90

Color Temperature:

5CCT/2700K/3000K/3500K/4000K/5000K

Dimmable:

Yes

Efficiency:

63

Lamping Category:

LED

Lamping Features:

• Dimming range: 100% - 10%
• Dimming type : Remote/Smart Dimming
• Product Primary Light Source: FAN + LED
• LED life span (hr): 50,000 hours
• fixture delivered lumens: 1324lm
• Fixture Input Voltage: 120V

Lamping Included:

Bulbs Not Included

Lead Wire Length:

78

Lumens:

1785

Total Watts:

43.00

Voltage:

120V

Wattage Max:

22.00

Dimensions and Measurements

Backplate/Canopy Extension:

2.63

Backplate/Canopy Height:

5.88

Backplate/Canopy Width:

5.88

Diameter:

23.13

Dimensions:

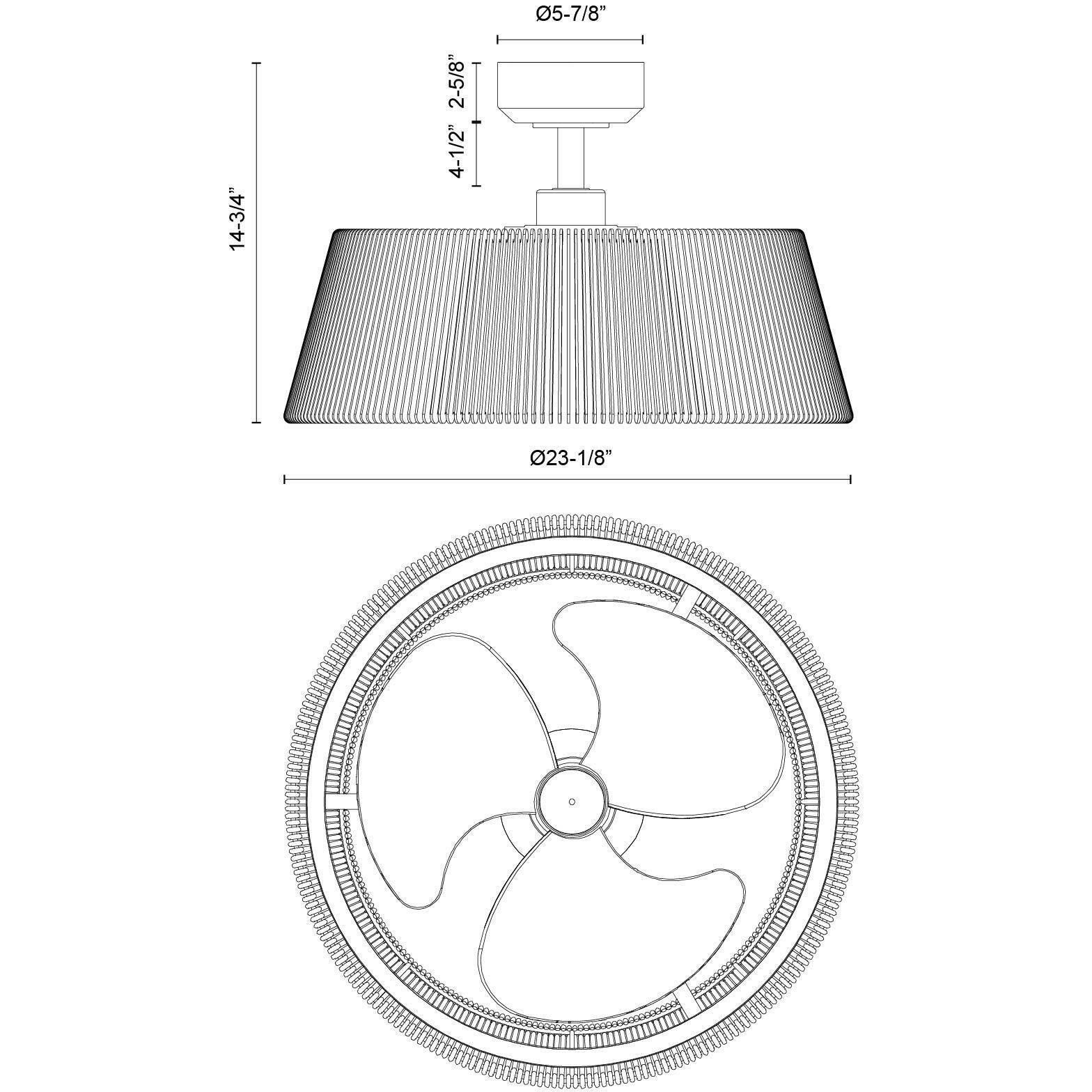

D23-1/8" x H14-3/4

Height:

14.75

Length:

23.13

Width:

23.13

Fan Blade Information

Fan Blade Pitch:

26

Fan Blade Span:

24

Number of Fan Blades:

3

Fan Operational Information

Fan Features:

• Reversible Blades: No
• Motor Size (mm): 74mm x 50mm
• Motor Type: DC
• Reversible Motor: Yes
• Low CFM: 609
• High CFM: 1304
• Average CFM: 956
• Ceiling to Blade Distance min (in): 10.8
• Motor RPM Range: 200-400
• Motor Speeds: 6
• Fan Blade Length (in): 17.8
• Fan Blade Width (in): 3.9

Unit Air Flow:

956.2

Included Components

Light Kit Included:

Yes

Warranty and Specifications

Country of Origin:

China

Title 24:

Yes

UL Ratings:

ETL Damp

Warranty:

Kuzco Group warrants to the first non-dealer purchaser on its product for 1 year from the date of purchase and 5 years on LED components. Kuzco is responsible to provide necessary part(s) and is not reliable for any labor charges included.

Additional Details

Chain Cord Features:

Down Rod 4-1/2" (for different rod length, contact factory)

Features:

• Product Key Features: Smart Home Compatible/Remote Controllable
• Primary Dimension: 24-in
• Fixture Dimensions: D23-1/8" x H14-3/4"
• Minimum Height: 14-3/4"
• Illumiunation direction: Down
• Sloped Ceiling Adaptable: Yes, Up to 18 Degrees
• Sloped Ceiling Max Angle (Degrees): 20 Deg
• Lead Wire: 78" with 78" safety cable
• Diffuser Material: White Polymeric Diffuser
• Additional Features:
  • Canopy Dimension (String): D5-7/8" x H2-5/8"
  • Canopy Included: Yes

Material:

Steel/Rope

Shade Information

Shade Features:

Rope Shade

Product Documentation
