Product Information

Brand:

Kichler

Brand Category:

Ceiling Fan

Brand Product Description:

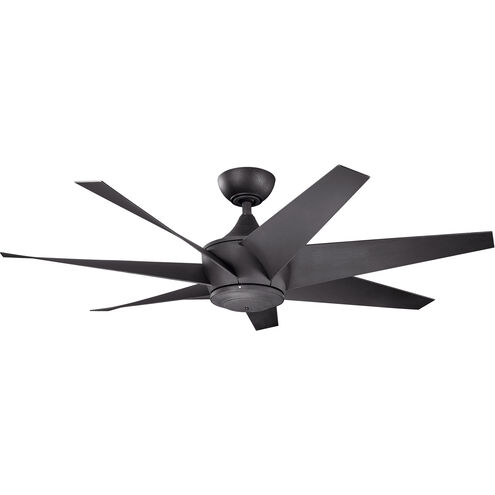

54 Inch Lehr II Fan

Shipping Method:

Ground

SKU:

310112DBK

UPC:

783927416061

Electrical and Operational Information

Dimmable:

No

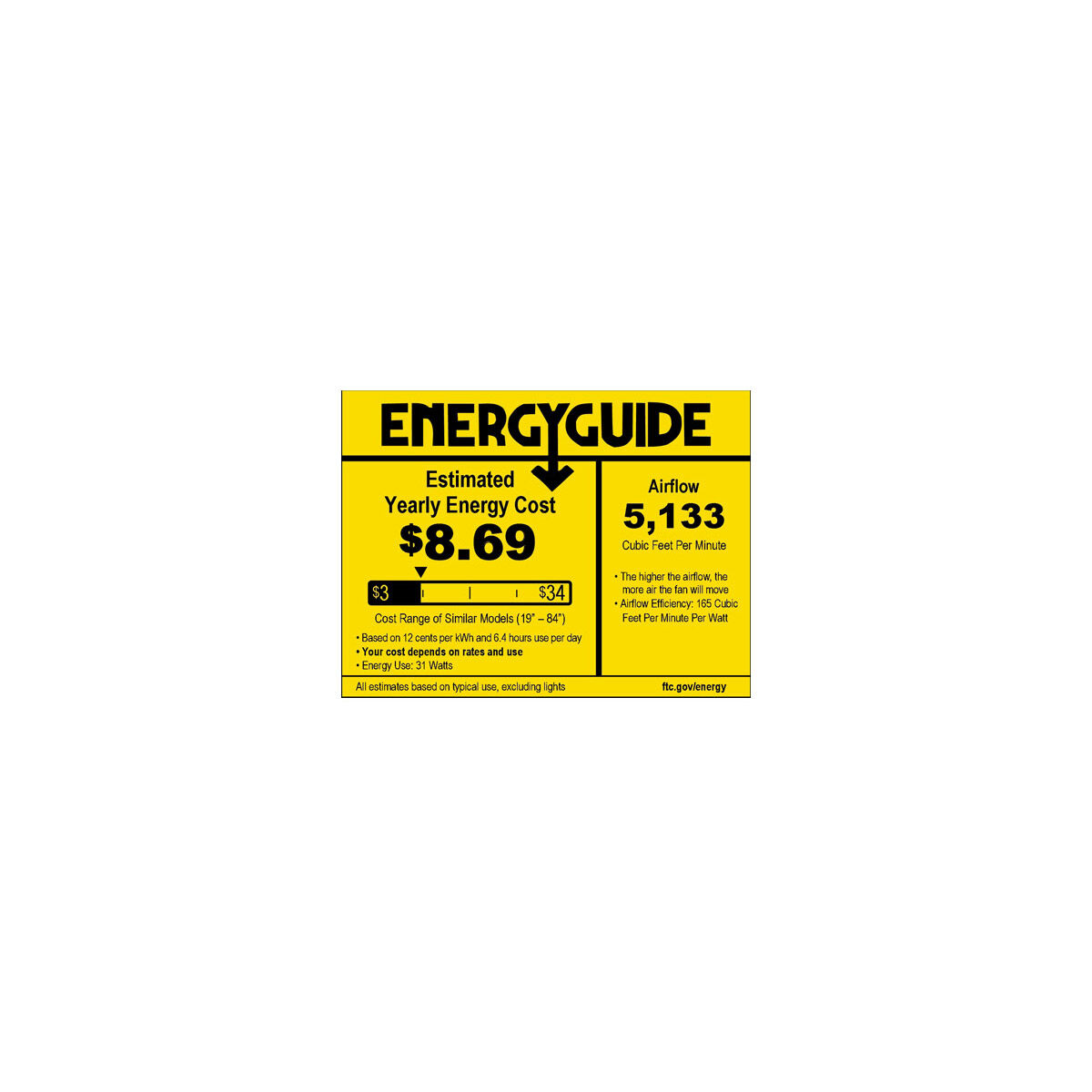

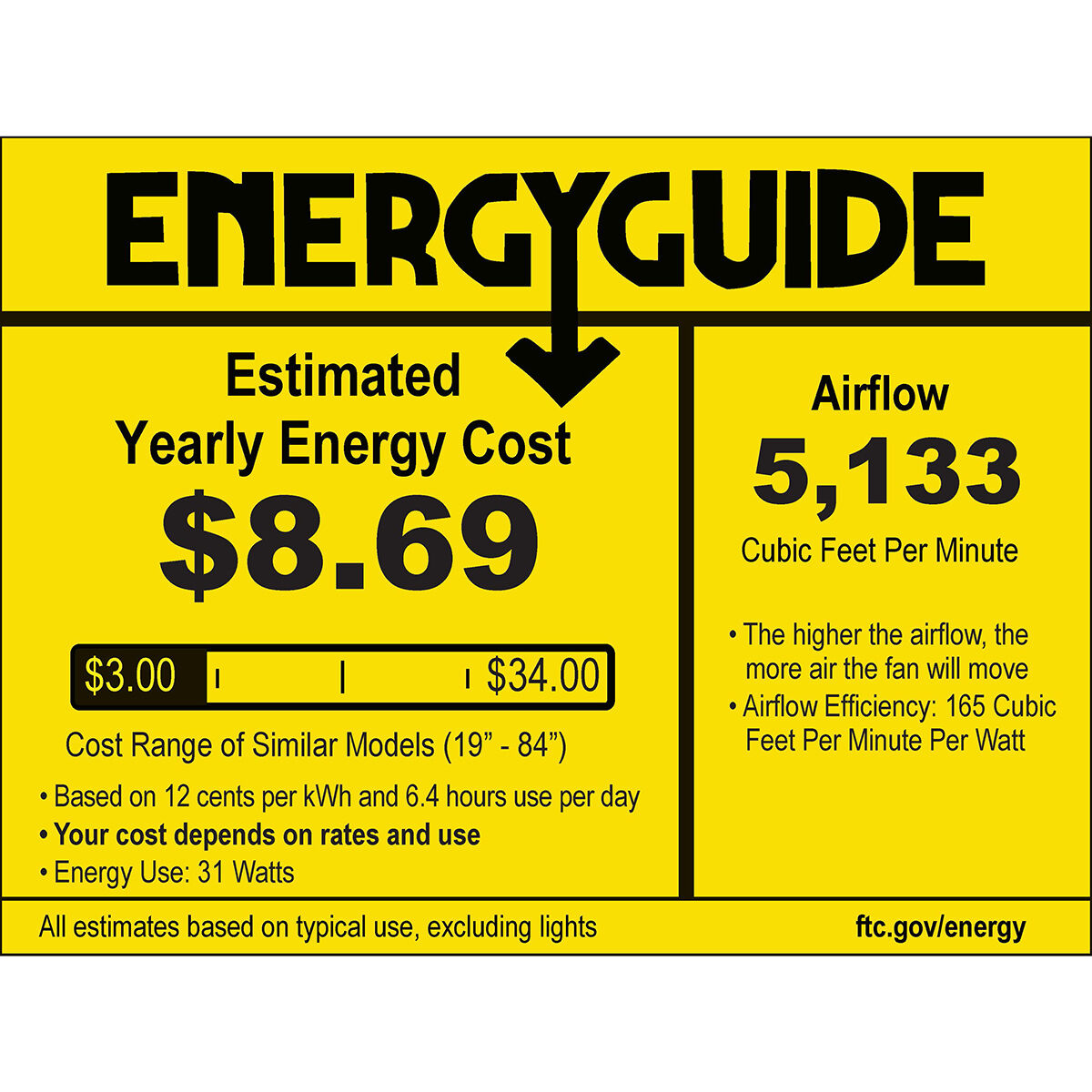

Efficiency:

165

Lead Wire Length:

78

Voltage:

120

Dimensions and Measurements

Backplate/Canopy Extension:

2.28

Backplate/Canopy Height:

5.91

Backplate/Canopy Width:

5.91

Diameter:

54

Height:

20.25

Weight:

15.19

Width:

54

Fan Blade Information

Fan Blade Pitch:

12.00

Fan Blade Span:

54

Number of Fan Blades:

7

Fan Operational Information

Fan Features:

FAN MOTOR SIZE: DC-125
FAN MOTOR TYPE: DC Brushless
Fan Air Flow: 05133/00000/02239
Fan Efficiency: 0165/0000/0351
Fan Wattage: 031/000/006
Fan Reversible Blades: N
Fan RPM (H/M/L): 106/000/051
Fan Speeds: 6 Speed DC CoolTouch-Full
Slope Ceiling Kit: N
Ceiling Wall Mount Included: N
Amps: 0.54/0.00/0.13
Remote: Y
Low Ceiling Adaptable: yes, with optional flush mount
Max Stem Tilt: 18
Optional Light Kit Avail: Optional
Electrical Req: 120V 60Hz AC
Fan Blade Width: 3.9
Fan Blade Length: 21.89
Speed Control Method: 6 Speed DC CoolTouch-Full

Motor Wattage:

31

Unit Air Flow:

5133

Included Components

Light Kit Included:

No

Warranty and Specifications

Country of Origin:

China

UL Ratings:

cULus cCSAus Listed Wet

Warranty:

Limited warranty, see manufacturer for details.

Additional Details

Chain Cord Features:

(1) 8in Downrod

Features:

• Base/Backplate: 6.75 DIA
• Ceiling Wall Mount Included: N
• Room Size: Medium
• Add'l Finishes: Antique Satin Silver/Coffee Mocha/Distressed Black
• Chain Finish: Antique Satin Silver/Coffee Mocha/Distressed Black
• Max Stem Tilt: 18
• Optional Light Kit Avail: Optional
• Electrical Req: 120V 60Hz AC

Material:

Steel
