Product Information

Brand:

Fanimation

Brand Category:

Ceiling Fan

Brand Product Description:

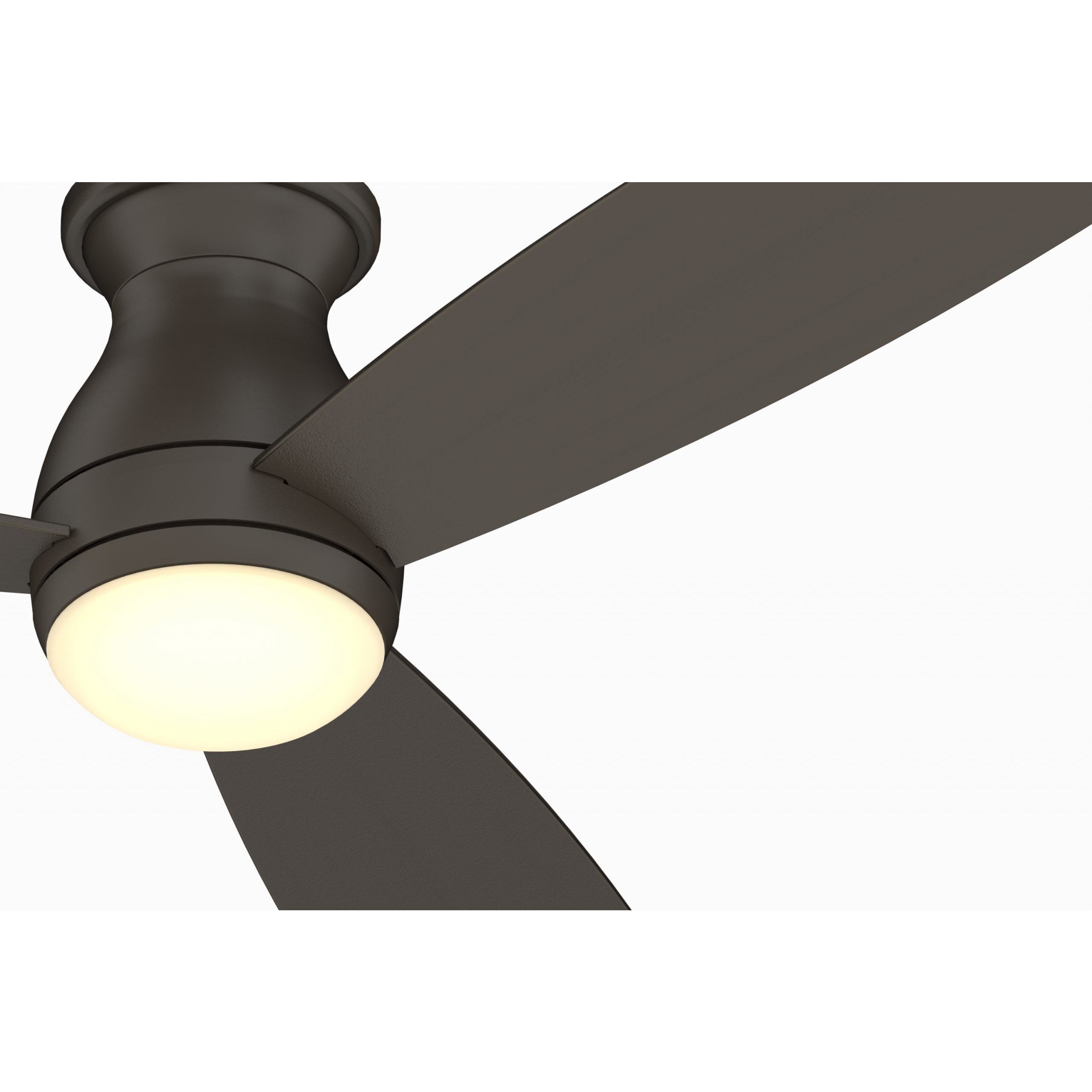

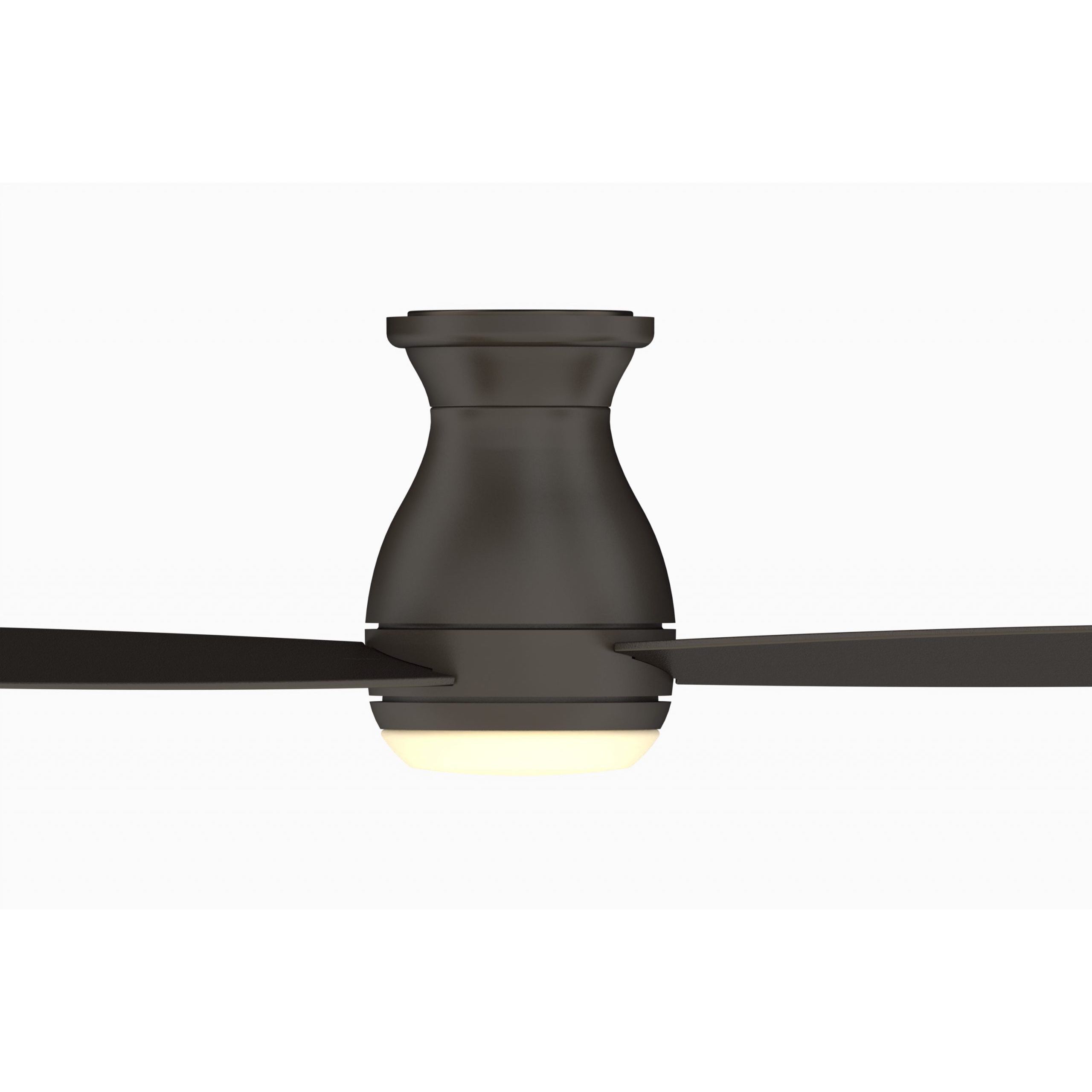

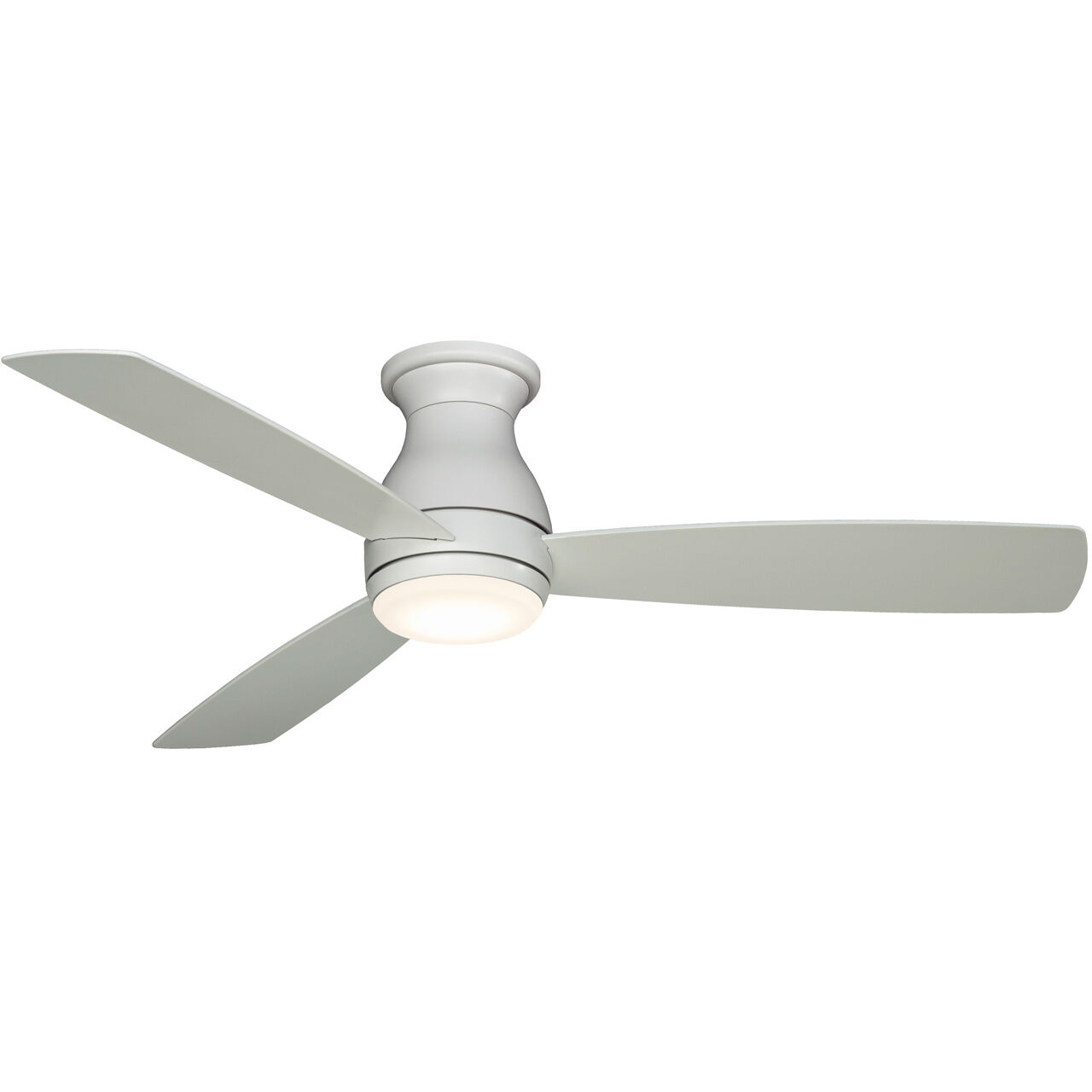

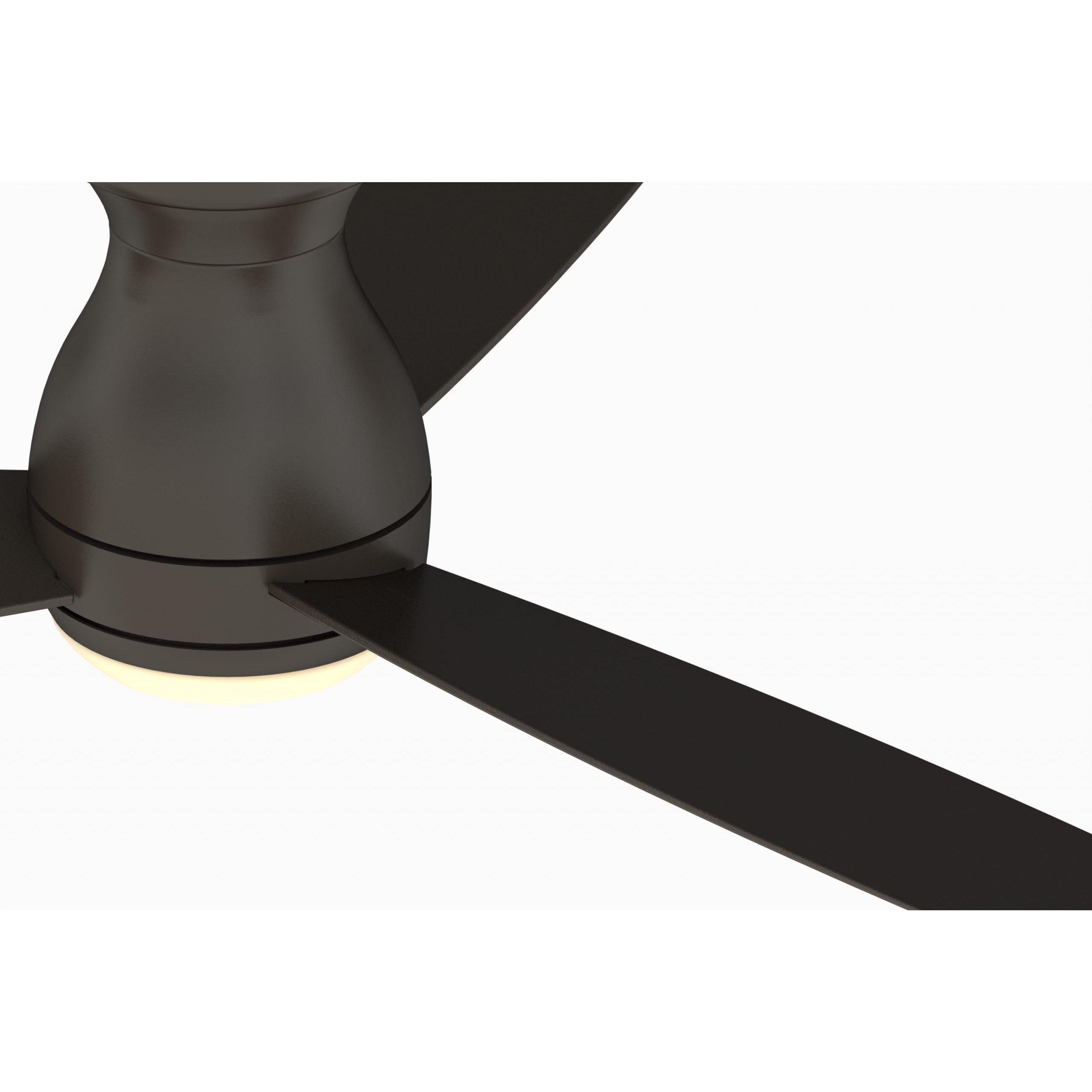

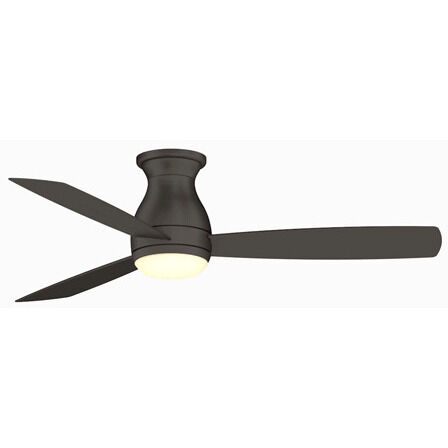

Hugh - 52 inch - BNW with LED LK

Shipping Method:

Ground

SKU:

FPS8355BBNW

UPC:

840506085657

Electrical and Operational Information

Color Rendering Index:

90

Color Temperature:

3000K

Efficiency:

98

Lamping Features:

Watts Per Bulb: 18

Lamping Included:

Bulbs Included

Lamping Type:

LED Module

Lead Wire Length:

11

Lumens:

1400

Primary Number of Bulbs:

1

Socket:

Connector Pin

Total Number of Bulbs:

1

Voltage:

120V

Wattage Max:

18.00

Dimensions and Measurements

Backplate/Canopy Height:

6.77

Backplate/Canopy Width:

6.77

Diameter:

52

Height:

11.74

Length:

52

Weight:

16.53

Width:

52

Fan Blade Information

Fan Blade Pitch:

12

Fan Blade Span:

52

Number of Fan Blades:

3

Fan Operational Information

Fan Features:

• Housing Diameter Inches: 7.85
• Cap Included Yes or No: Yes
• Included Control: TR500
• Included Control Type: Handheld
• Ceiling to Blade Edge Inches: 9.36
• Ceiling to Bottom (No LK) Inches: 11.35
• Ceiling to Bottom (With LK) Inches: 11.74
• Blade Reversible Yes or No: No
• Blade Material: Composite
• Blade Finish Method Type: Painted
• Motor Type: AC
• Motor Reversible Yes or No: Yes
• Motor Size: 153 x 20
• Motor Finish Method Type: Plated
• Reverse Switch Location: Switch Housing
• Number of Speeds: 3
• Avg Estimated Yearly Energy Cost: 10
• Avg Estimated Yearly Energy Cost on HIGH: 15
• Avg CFM Energy: 3392
• CFM Low: 2188
• CFM Medium: 3595
• CFM High: 5104
• Avg Energy Use (Watts): 35
• Watts Low: 14
• Watts Medium: 30
• Watts High: 52
• Avg Airflow Efficiency: 98
• Airflow Efficiency Low: 160
• Airflow Efficiency Medium: 120
• Airflow Efficiency High: 99
• RPM Low (II): 83
• RPM Medium (IV): 128
• RPM High (VI): 171
• Current Draw Low: 0.22
• Current Draw Medium: 0.32
• Current Draw High: 0.43
• Compatible Controls: CRL4WH, CWRL4LA, CWRL4WH, WR500WH, WC2WH, WR501WH
• Compatible Wall Controls: WC1WH
• Fan Energy Star 4: No
• Light Kit Energy Star 4: No

Motor Wattage:

35

Unit Air Flow:

5104

Included Components

Light Kit Included:

Yes

Warranty and Specifications

Country of Origin:

China

Location Rating:

Suitable for Damp Locations

Prop 65:

Yes

UL Ratings:

UL/cUL Wet

Warranty:

Limited Lifetime Warranty

Additional Details

Features:

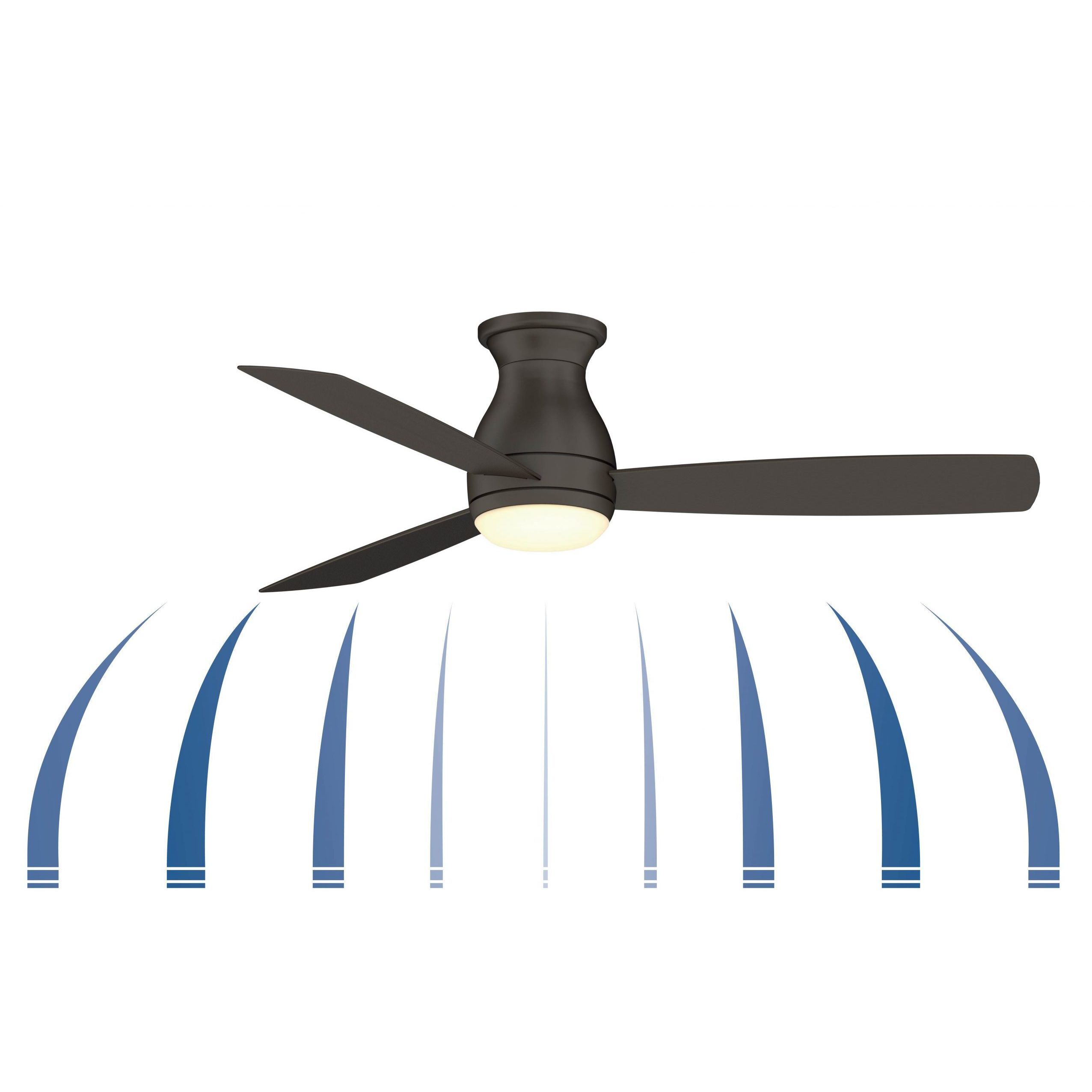

• POWER: The 3-speed, energy efficient AC Motor provides airflow up to 5,104 CFM
• LIGHTING: Includes integrated 18-watt dimmable LED light kit with opal frosted glass shade
• TECHNOLOGY: Compatible with Fanimation WiFi fanSync and most smart home devices (required controls sold separately)
• CONTROL: Includes a TR500 hand-held remote with one 12V 23A battery - Push buttons control 3 fan speeds, infinite light levels, fan/light timer, and powering on/off
• LOCATION: Wet Rated for indoor and outdoor use in wet locations, making it ideal for any indoor room or spaces like gazebos, patios, pergolas, or porches
• FINISH: Brushed Nickel ceiling fan from the Hugh Collection features 3 Brushed Nickel blades
• SAVINGS: Features a reversible motor, allowing you to switch the direction of your fans rotation and create energy savings
• INSTALLATION: Mounts flush on a flat ceiling using the included ceiling bracket, making it ideal for rooms with low ceilings
• WARRANTY: Limited Lifetime
• Additional Features:
  • Shade Finish: Opal Frosted
  • Compatible Accessories: BTCR9, BTR9, WFR50
  • Voltage Cycles: 60 Hz
  • Regulated Product Yes or No: Yes
  • DOE Classification: LSSD
  • Exempt from DOE Procedure: No
  • DOE-FTC Uploaded: Yes
  • CEC Uploaded: Yes
  • Prop 65 Warning: This product can expose you to chemicals including Lead whic

Glass Features:

Opal Frosted

Shade Information

Shade Features:

Opal Frosted

Product Documentation
