Product Information

Brand:

Hinkley

Brand Category:

Smart Fan

Brand Product Description:

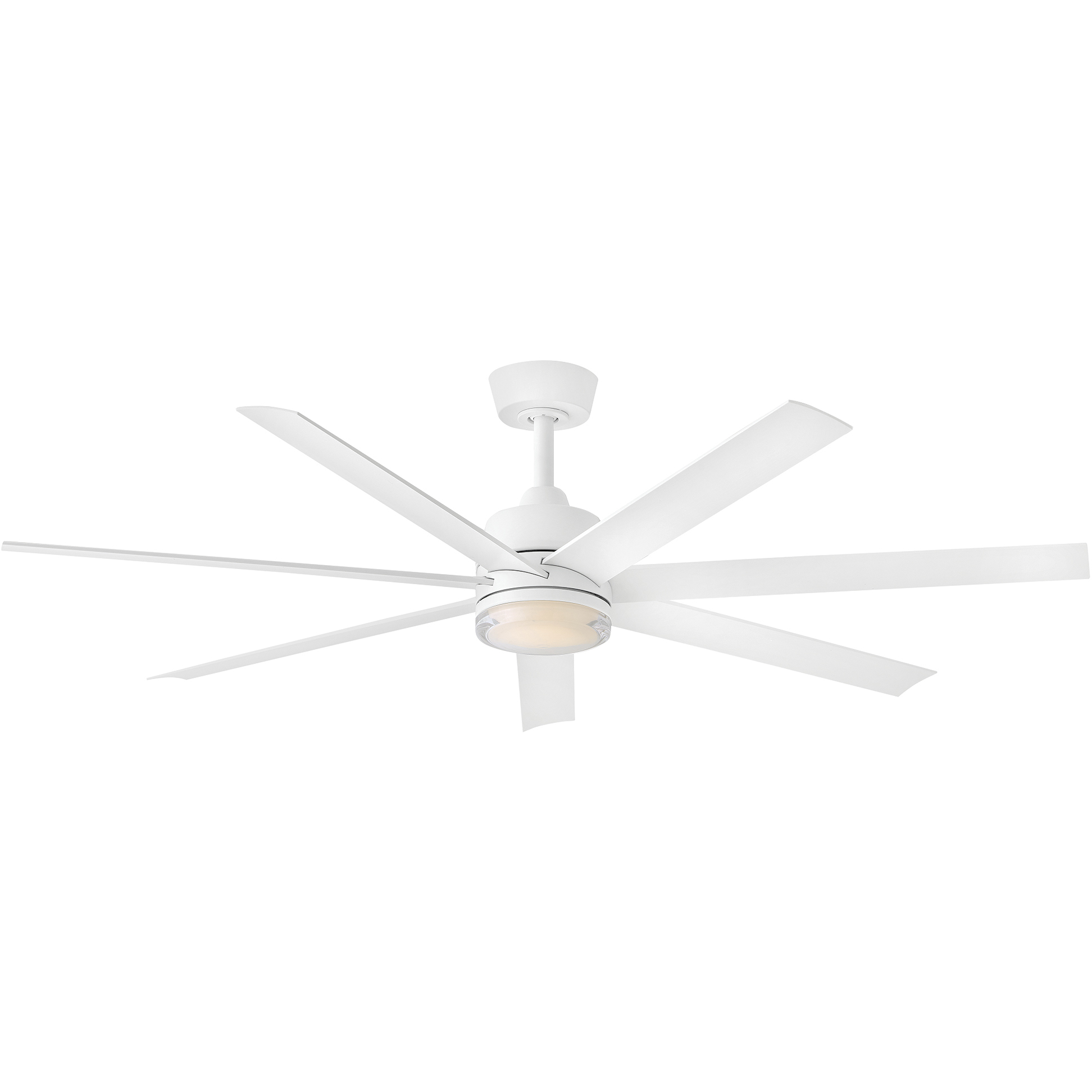

Current 56" LED Smart Fan

Shipping Method:

Ground

SKU:

910656FMW-LDD

UPC:

640665919578

Electrical and Operational Information

Color Rendering Index:

90

Color Temperature:

3000K Warm Dim

Dimmable:

Yes

Efficiency:

217

Lamping Features:

• DIMMABLE: Yes - CL Type Dimmer (SSL7A)
• Life Span: 50000
• Bulb Information: 16w LED Included
• Incandescent Equivlancy LED: 1 X 100w

Lamping Included:

Bulbs Included

Lamping Type:

Integrated LED

Lumens:

1320

Primary Number of Bulbs:

1

Socket:

LED

Total Number of Bulbs:

1

Voltage:

120v

Wattage Max:

16.00

Dimensions and Measurements

Backplate/Canopy Width:

6

Height:

15.75

Length:

56

Weight:

26.50

Width:

56

Fan Blade Information

Fan Blade Pitch:

13

Fan Blade Span:

56

Number of Fan Blades:

7

Fan Operational Information

Fan Features:

• Ceiling To Blade Height: 11
• Motor Name: DC153x16
• Motor Type: DC
• Fan Speed: 6 Speed
• Reversing Control: No
• Energycost High: 10
• Energycost Avg: 6
• Efficiency High: 217
• Efficiency Avg: 236
• Airflow High: 7929
• Airflow Avg: 5191
• Energyuse High: 36.5
• Energyuse Avg: 22
• Amps High: 0.49
• Amps Avg: 0.27
• RPMs High: 171
• RPMs Avg: 111
• Blade Material: Composite
• Blades Reversible: No
• Light Kit Included Removeable: No
• Light Kit Adaptable: No
• Ceiling To Bottom Blade Height: 12.25

Motor Wattage:

36.5

Unit Air Flow:

7929

Included Components

Light Kit Included:

Yes

Warranty and Specifications

Country of Origin:

CHINA

Title 24:

Yes

UL Ratings:

C-US ETL Damp Rated

Additional Details

Features:

• Can be hung on a sloped ceiling / This item includes a 6" down rod (other lengths of down rods are available) / This product uses recyclable or limited packaging materials to help reduce waste / Control your fan's power, light, speed, direction, and so much more from the Hinkley Home Automation app / Equipped with an energy-efficient DC motor / Light kit cover included / Fan Control included, HIRO Control - 6 Speed Reversing. All-in-one HIRO remote controls power, speed, direction, and lighting; use as a wall control or portable remote / WiFi Enabled Smart Fan is compatible with your home’s WiFi network / LED components carry a 5-year limited warranty / Motor carries a lifetime warranty / Blades, controls, switches, capacitors and hardware carry a 1-year warranty / Merging the best of traditional and modern elements with a sophisticated and streamlined look / Fans should be installed at a minimum of 7 feet from the floor / Damp rated fans are ideal for fully covered outdoor areas, bathrooms, garages, and sunrooms / Energy-efficient integrated LED - safer for the environment and low maintenance
• FAN: DC Motor
• Fan Control included, 6 Spd HIRO:R
• FAN: 6" Rod Included, FAN: 7ft from floor, Install Sloped Ceiling
• Stand By Power: 0.6
• Dual Mount: No
• Operating Frequency: 60
• CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Wifi Control Optional: No
• Additional Features:
  • Wifi Control Included: Yes
  • Adj Mounting Hardware: No
  • Convertible: No
  • Install Sloped Ceiling: Yes
  • Slope Degree: 20
  • Single Power Switch: No
  • Receiver Included: Yes
  • Fan Control Included: Yes
  • Control Type: HIRO Control - 6 Speed Reversing
  • Uplight 1: No
  • Uplight 2: No

Glass Features:

Acrylic Lens

Material:

Steel
